6 of 20 496371 Issue 1
Outputs
Front Panel

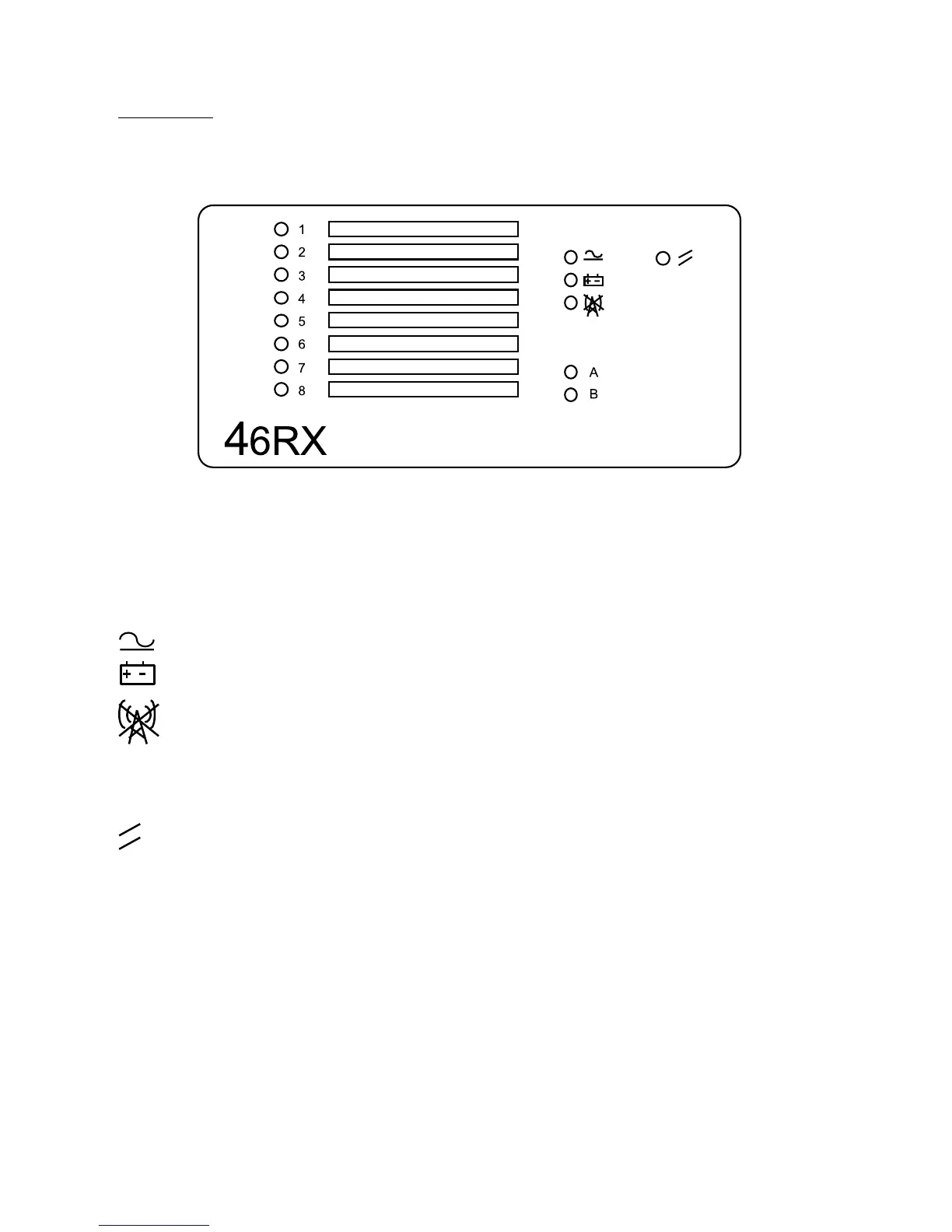

Each member of the 46RX family uses the display panel shown in Figure 3.
Figure 3. 46RX Family Display Panel
The vertical column of eight LEDs indicates the status of each channel
output.
The symbols on the right of the panel have the following meanings:
Power
Transmitter Low Battery
Jamming
A Common Output A
B Common Output B
Reset
Common Output Relays
Members of the 46RX family provide three output relays: Common Output
Channel A, Common Output Channel B and Low Transmitter Battery. Figure
2 shows their position and connectors.
The Normally Open, Normally Closed and Common Terminals of the relays
provide voltage free change over contacts.
The 46RX family use the Common Output Channel relays (and LEDs) to
report the status of transmitters. See Programming for more information.
The 46RX family use the Low Transmitter Battery relay to report that a
transmitter's battery is failing. See “Fault Finding” for more information.
Outputs 4618
