Copland CTA408 - Back Panel Connections; Phono and Ground Connections; Analog and Tape I;O; Speaker and Power Connections

6

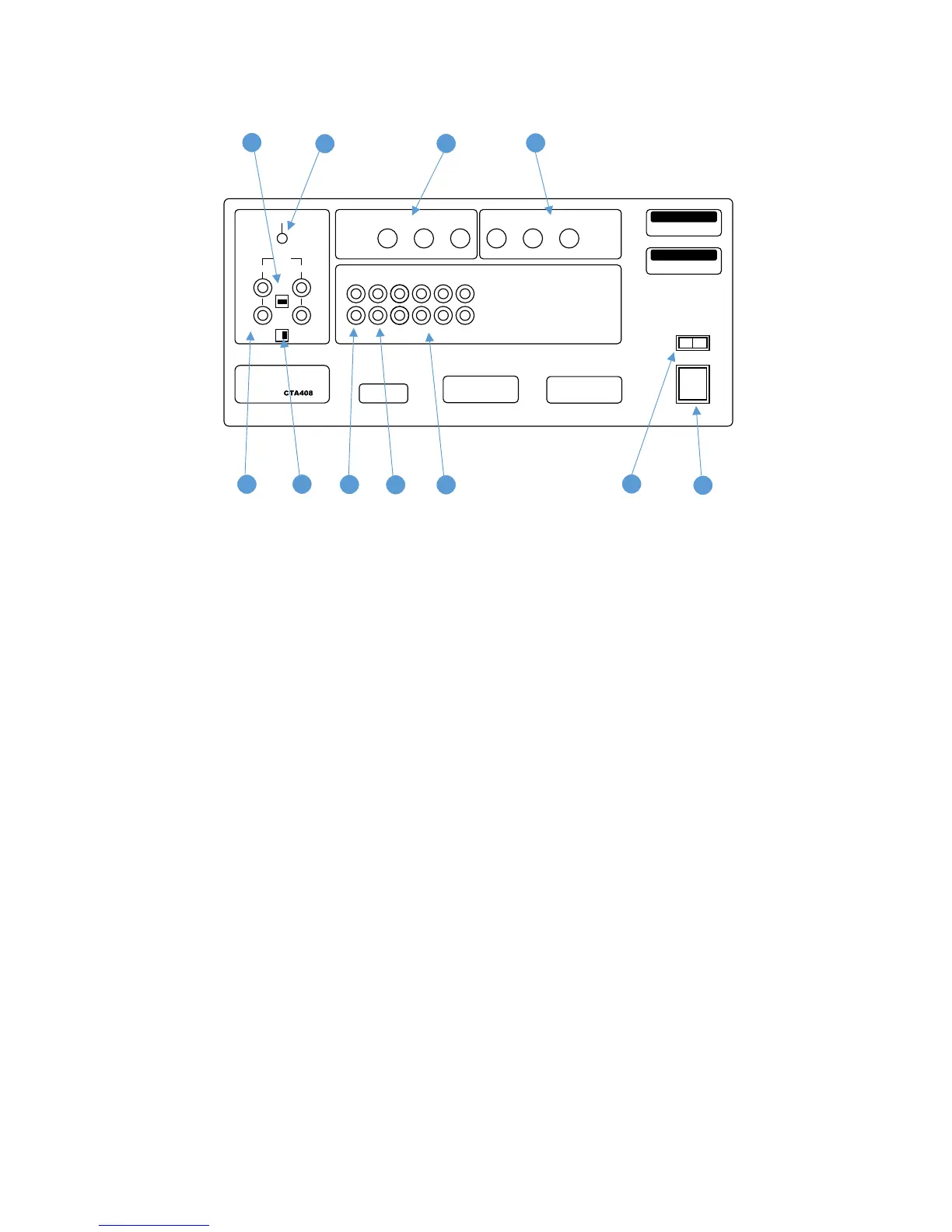

Back Panel
3 4 8 9
GND 8 ohm 8 ohm
4 ohm 4 ohm
GND GND
A1 A2 A3 A4
TAPE
INOUT
TAPE
MC
LOAD
50
100
470
RIGHT
LEFT
PHONO
LEFT SPEAKER
RIGHT SPEA KER
RIGHT
LEFT
INTEGRATED AMPLIFIER
DESIGN BY COPLAND
MADE IN D ENMAR K
C O P L A N D
SER I AL NUMBER:
AC. P OWER
MAX. POWER CONSUMPTION
50/60 Hz. VOLTAGE:
MC
MM
LEFT LEFT
RIGHT
MC MM
RISK OF ELECT RIC SHOCK
DO NOT OPEN
CAUTION !
RISQUE DE CHOC ELEC TR IQUE
NE PAS OUVRIR
ATTENTION !
Model No.
0 I
1 2 3 6 5 10 11
1. Phono/RIAA Section: Accepts input from a Turntable. The amplifier is designed for a
MM magnetic pickup (cartridge) or MC (Moving Coil).
2. Phono Input Selector switch: MM (magnetic) pickup cartridge or MC (Moving Coil).
The switch should only be operated when the amplifier is turned off.
3. Impedance Load Selector Switch: Load impedance for MC (Moving Coil) cartridge.
The switch should only be operated when the amplifier is turned off.
4. Ground: Earth connection for any device that needs to be grounded.
5. A1, A2, A3, A4: Standard analog inputs.
6. Tape In: Connect with the playback outputs of a tape recorder.
7. Tape Out: The record output jack permits recording directly any signal being reproduced
by the amplifier.
8. Speaker Output Terminals: Right Channel
9. Speaker Output Terminals: Left Channel
10. AC Power: Mains power. I = ON. O = OFF
11. AC Power connector with fuse holder: 115V/120V/230V/240V AC, depending on country.
