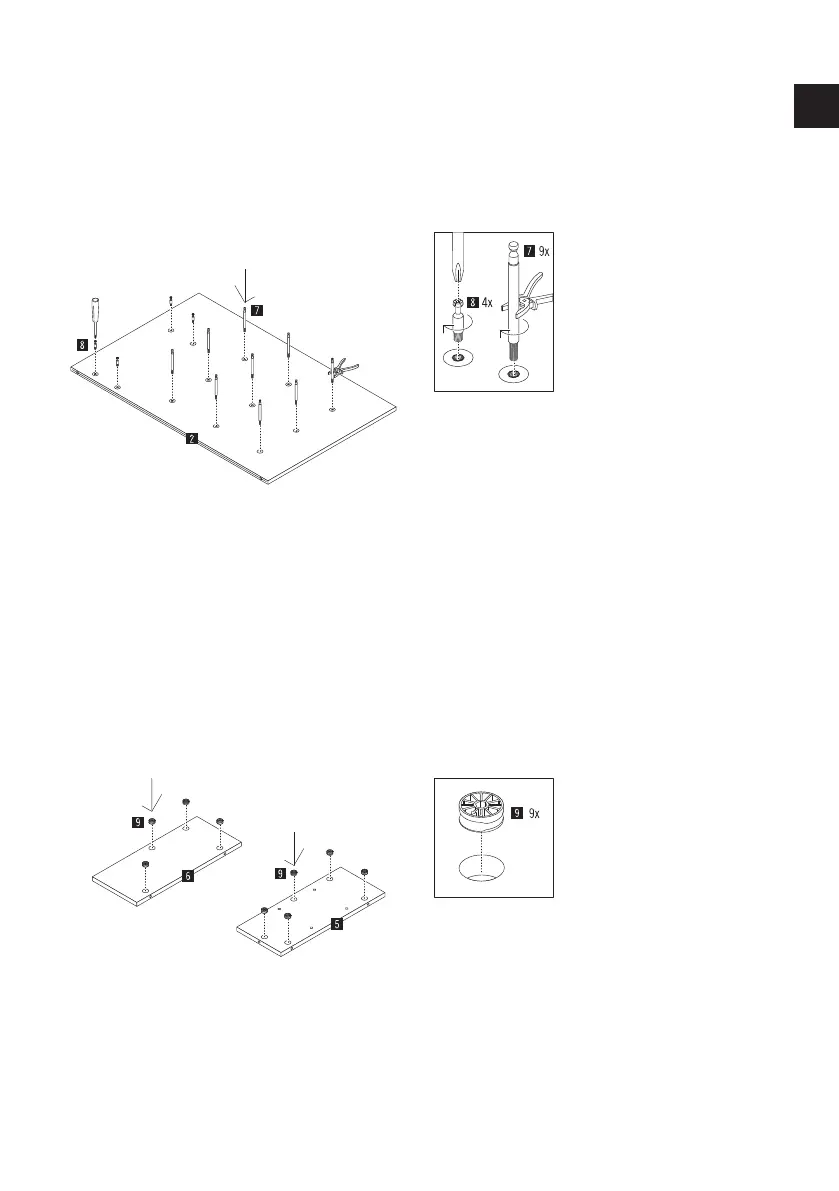

Next, place partition wall B (part 2) on the
floor with the cut-out holes facing upwards.
First screw the 9 shelf bolts (part 7) into the
correct position in the threaded sockets by
hand.
Tighten the two bolts with pliers.
Now screw the 4 Maxifix bolts (part 8) into
the threaded sockets provided using a suitable
Phillips screwdriver.
Assembly Chart 1210/1201
partition wall B
2
Now insert the 9 Maxifix housings (part 9) into
the holes provided in the shelves (part 5 + 6).
Make sure that the arrow on the housing al-
ways points to the hole in the narrow edge.
3
