50
2x
GB

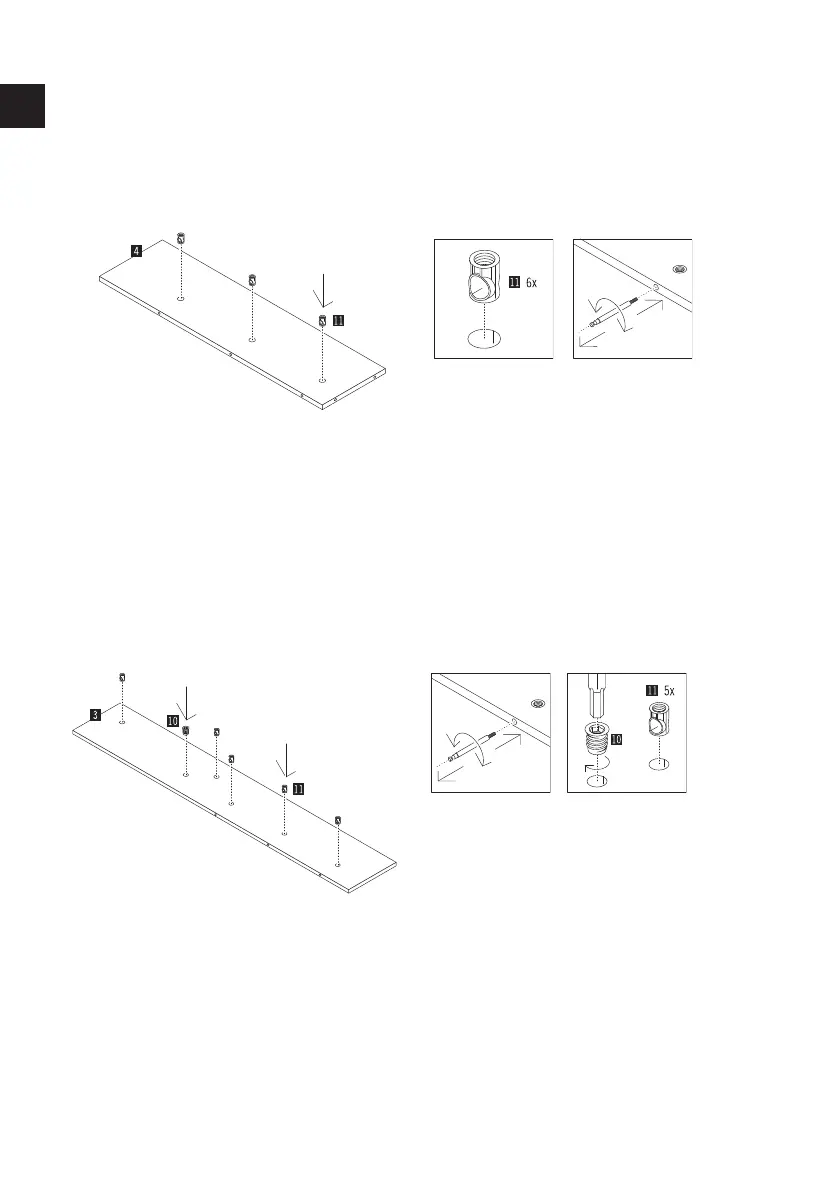

Insert the 6 connector housings (part 11) into
the holes provided in the 2 shelves (part 4).
Make sure that the side holes in the housings
are pointing in the direction of the side drill
hole.
TIP: Check the correct position with the help
of a shelf bolt by inserting it into the side hole
for testing and then pulling it out again.
Assembly Chart 1210/1201
shelves
4
5
Using a cordless screwdriver with an Allen bit,
carefully screw the threaded insert (part 10)
straight into the hole provided in the shelf
(part 3).
Insert the 5 connector housings (part 11) into
the holes provided. Make sure that the side ho-
les in the housings are pointing in the direction
of the side drill holes.
TIP: Check the correct position with the help
of a shelf bolt by inserting it into the side hole
for testing and then pulling it out again.
1x
