Assembly Chart 1230/1203

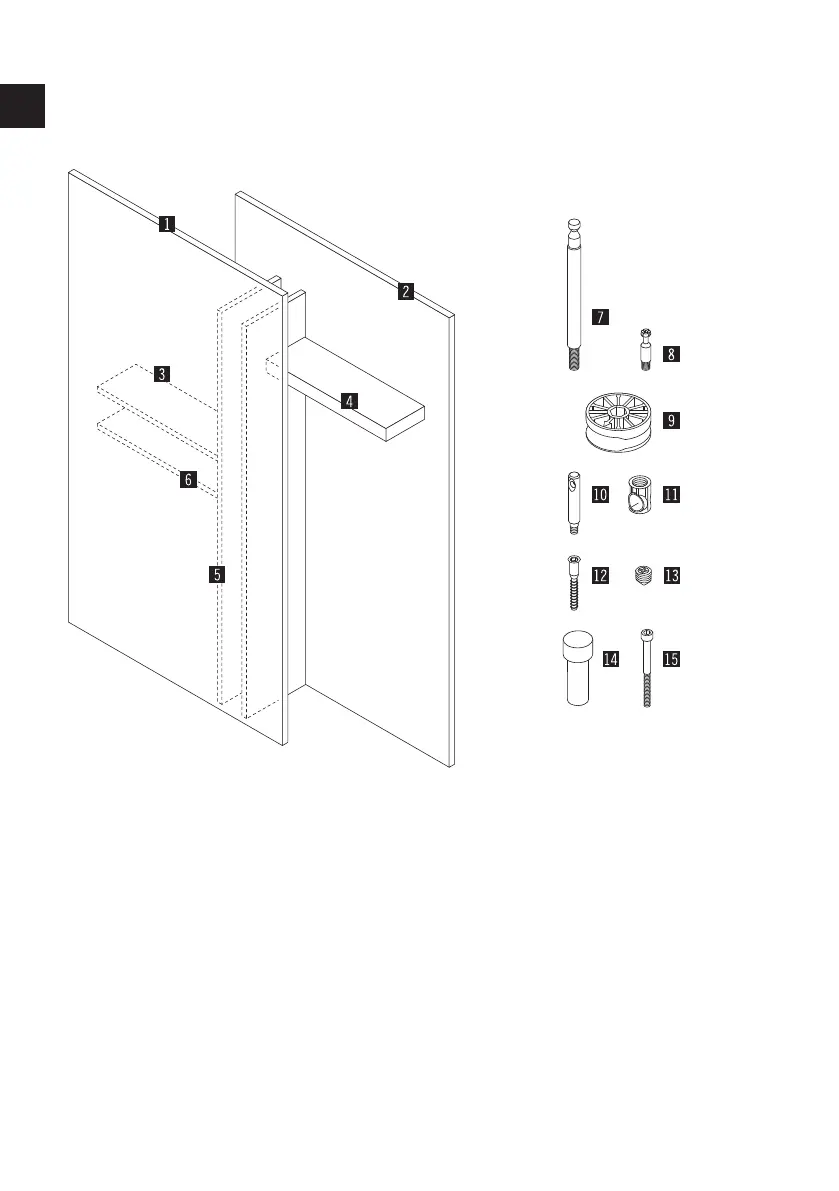

Scope of delivery
1. 1 x partition wall A (W 120.0 x H 210.0 cm)
2. 1 x partition wall B (W 120.0 x H 210.0 cm)
3. 2 x shelf (W 68.2 x D 25.0 x H 2.4 cm)
4. 1 x coat rack (W 68.7 x D 16.0 x H 6.0 cm)
5. 1 x shelf for coat rack upright (W 180.0 x D 30.0 x H 2.4 cm)
6. 1 x shelf for shelf upright (W 180.0 x D 30.0 x H 2.4 cm)
7. 2 x shelf bolts
8. 16 x Maxifix bolts (M8 x 28.5 mm)
9. 16 x Maxifix housings (Ø = 35 mm)
10. 2 x connector bolts (10.0 x 55.0 mm with M8-thread)
11. 4 x connector housings (Ø 16.0 mm with M10-thread)
12. 6 x corner connectors (7.0 x 50.0 mm)
13. 4 x connector grub screws with tip (M10 x 12 mm)
14. 5 x coat rack hooks
15. 5 x cylinder screw (M6 x 55 mm)
