Assembly Chart 1230/1203
partition wall A
1

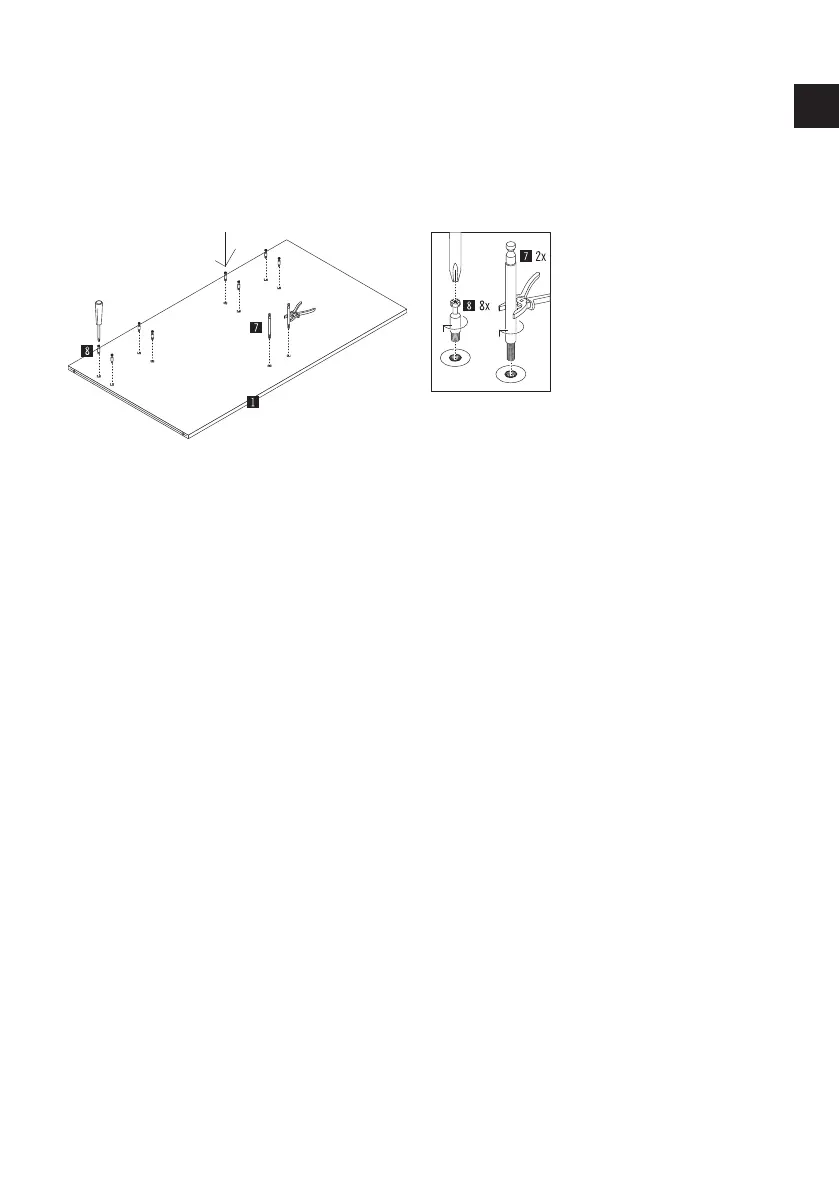

Start the assembly of the Chart partition wall
1230 with partition wall A (part 1).
To do so, lay partition wall A with the cut-out
holes facing up.
First, screw the 2 shelf bolts (part 7) into the
threaded sockets in the correct positions by
hand.
ATTENTION: Throughout the entire assembly,
make sure that the cover fabric does not get
snagged by the various bolts.
Tighten the two bolts with pliers. Now screw
the 8 Maxifix bolts (part 8) into the threaded
sockets provided for this purpose with a Phil-
lips screwdriver.
