Assembly Chart 1230/1203
partition wall B / shelves

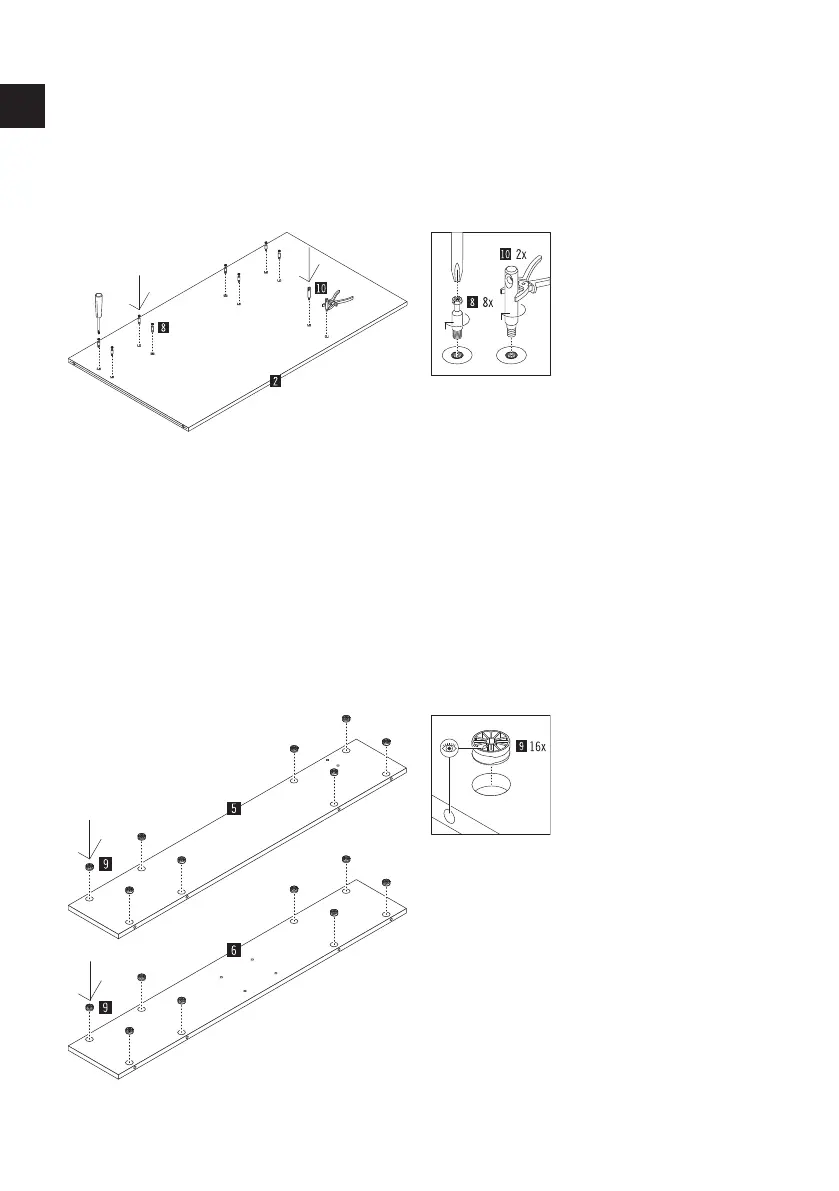

Next, lay partition wall B (part 2) on the floor
with the cut-out holes facing up.
Using pliers, screw the 2 connector bolts
(part 10) into the threaded sockets provided.
IMPORTANT: Make sure that the hole in the
connector bolt points up and down here!
Now screw the 8 Maxifix bolts (part 8) into
the threaded sockets provided using a Phillips
screwdriver.
Now insert the 16 Maxifix housings (part 9)
into the holes provided in the shelves
(part 5 + 6). Make sure that the arrow on the
housing always points to the hole in the narrow
edge.
