Assembly Chart 1230/1203
shelves / coak rack

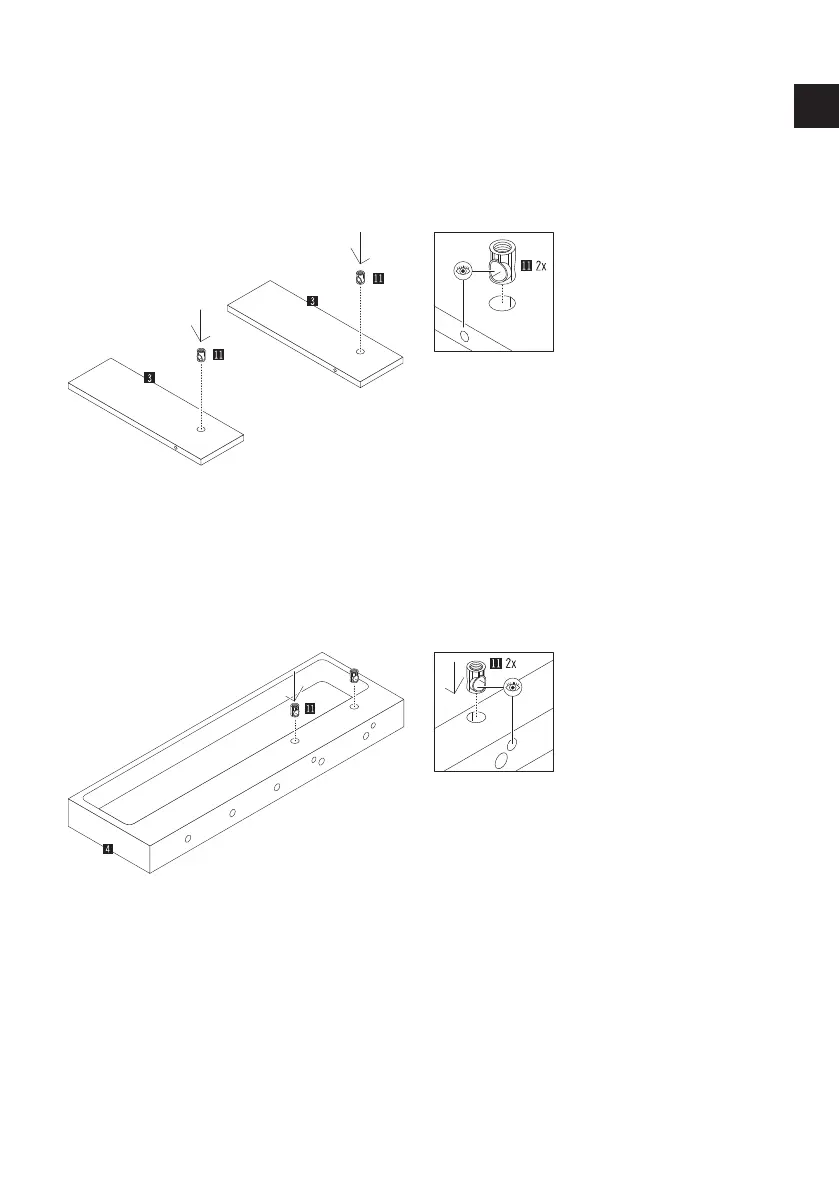

Insert the 2 connector housings (part 11) into
the holes provided in the shelves (part 3).
Make sure that the side holes in the housings
are aligned with the side drill holes.
TIP: Check the correct position using a shelf
bolt by inserting it once into the side hole for
testing and then pulling it out again.
Insert the 2 connector housings (part 11) into
the holes provided in the coat rack (part 4).
Make sure that the side holes in the housings
are aligned with the side drill holes.
TIP: Check the correct position using a shelf
bolt by inserting it once into the side hole for
testing and then pulling it out again.
GB
