Assembly Chart 1230/1203
coak racks / coak rack hooks / partition wall B
4

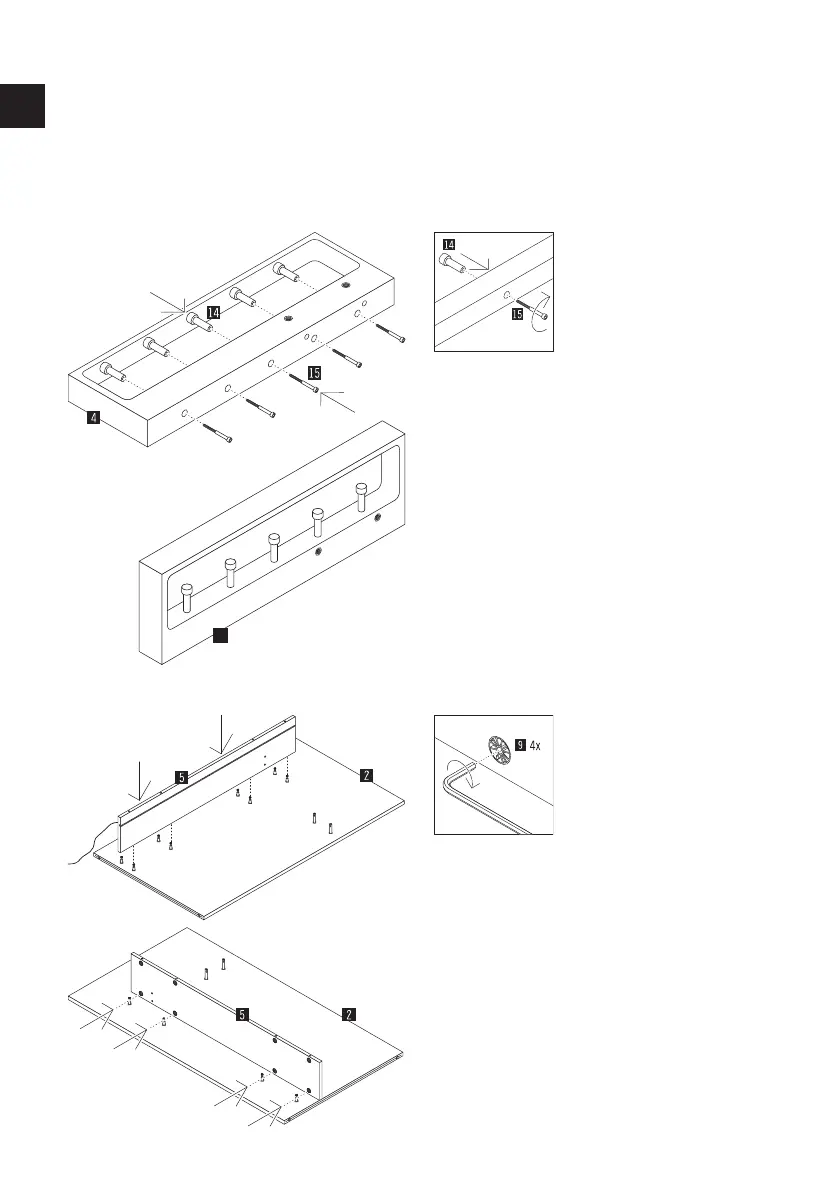

Attach the 5 coat hooks (part 14) to the coat
rack (part 4) using the 5 cylinder screws
(part 15).
Then tighten the cylinder screws using an Allen
key.
Place the upright shelf for the coat rack
(part 5) on the bolts of partition wall B
(part 2) at the intended position.
Then tighten the 4 Maxifix housings (part 9) to
the shelf (part 5) using an Allen key.
