Assembly Chart 1230/1203
coak racks / partition wall B

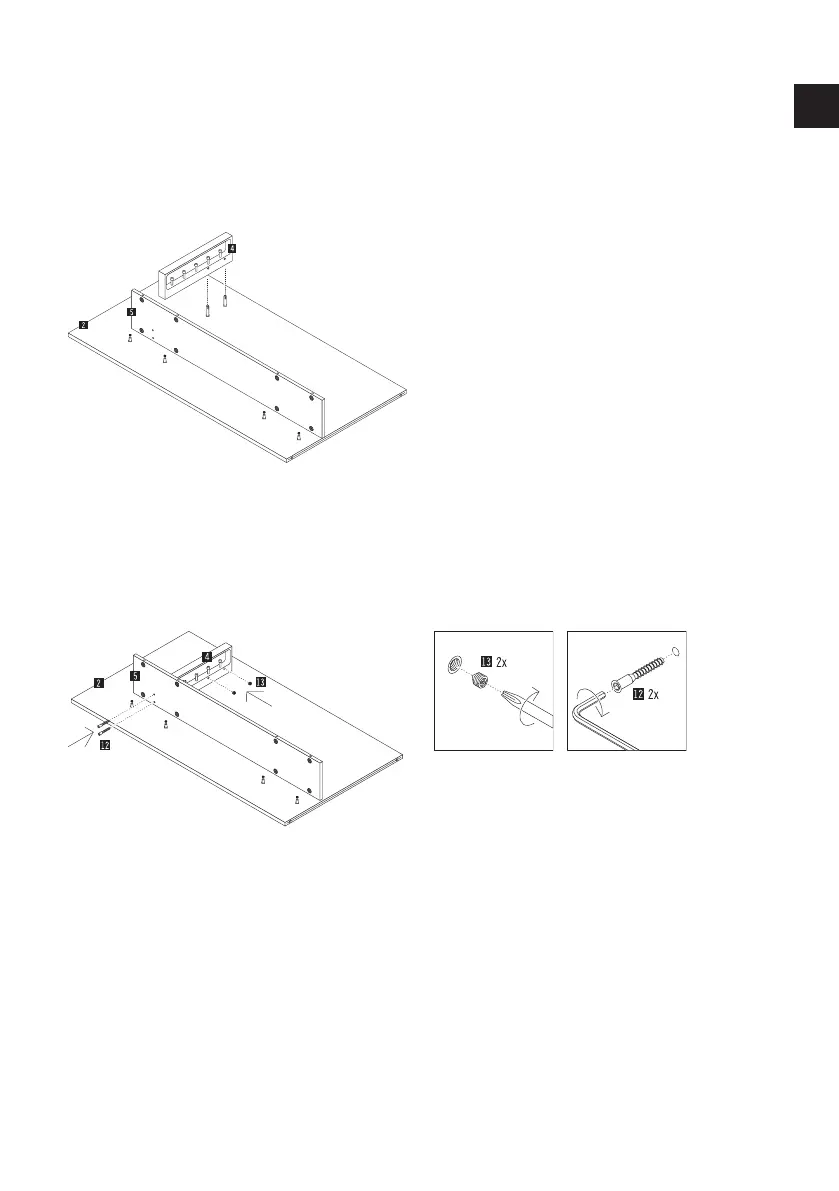

Place the coat rack (part 4) on the bolts
of partition wall B (part 2) at the intended
position.
Press the coat rack (part 4) firmly onto the
partition wall B. Screw the two connector grub
screws (part 13) simultaneously into the con-
nector housings and tighten the grub screws.
Then attach the coat rack to the upright
shelf (part 5) using the 2 corner connectors
(part 12).
To do this, carefully screw the corner connec-
tors into the holes provided using a cordless
screwdriver with an Allen bit and tighten the
screws
GB
