Assembly Chart 1230/1203
shelves / partition wall A / partition wall B

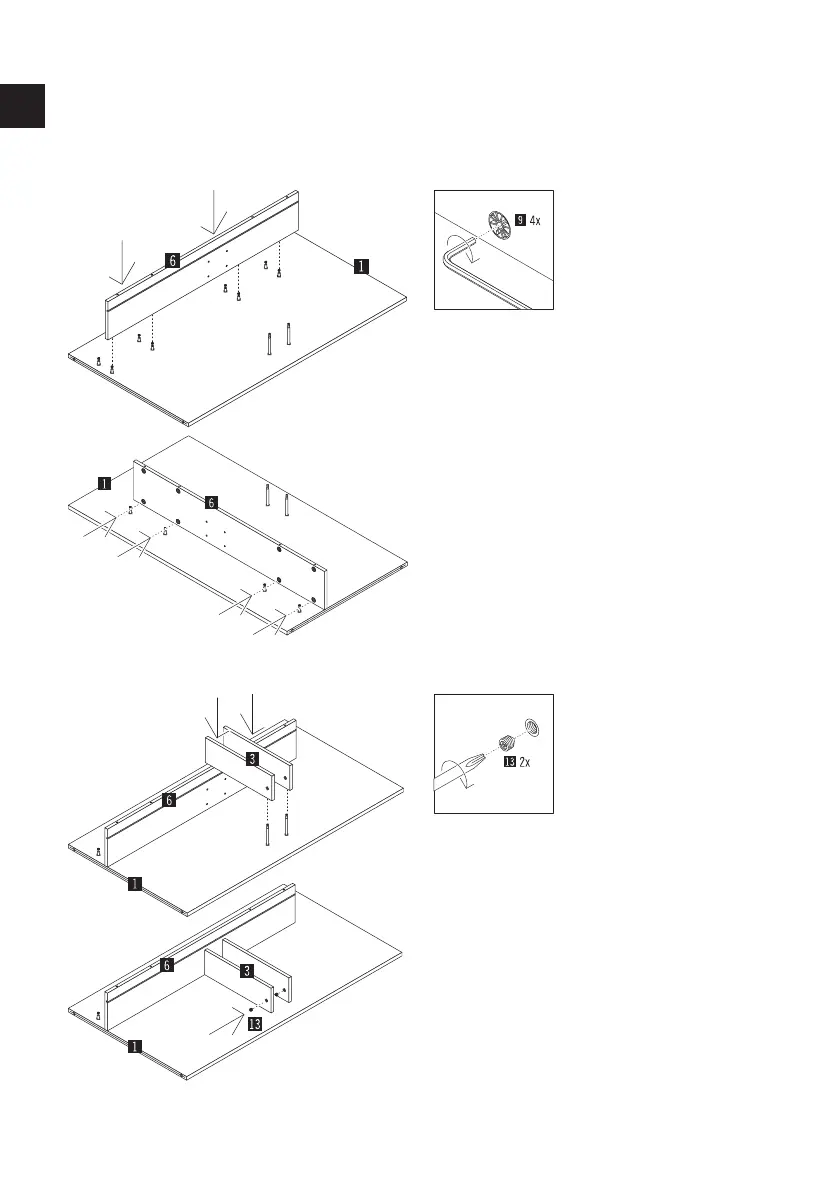

Place the upright shelf (part 6) on the bolts
of partition wall A (part 1) at the intended
position. Then tighten the 4 Maxifix housings
(part 9) to the shelf (part 6) using an Allen
key.
First place the upper shelf (part 3) on the bolt
of partition wall A (part 1) at the intended
position.
Press it firmly onto partition wall B and screw
the connector grub screw (part 13) into the
connector housings and tighten the grub screw.
Do the same with the second shelf.
