Assembly Chart 1230/1203
shelves / partition wall A / partition wall B

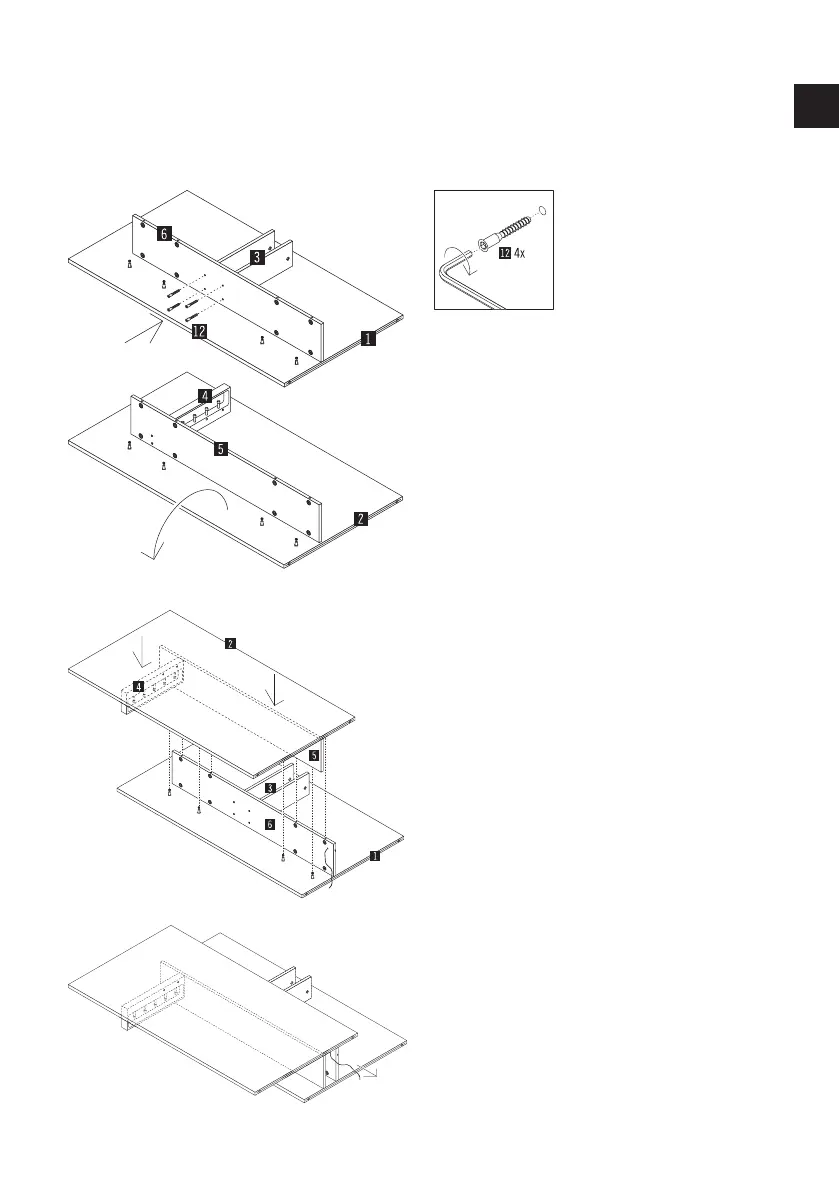

Then fix the 2 shelves to the upright shelf
(part 5) using the 4 corner connectors
(part 12).
Carefully screw the corner connectors into the
holes provided using a cordless screwdriver
with an Allen bit and tighten the screws.
Using 2 people, turn partition wall B (part 2)
180°.
Using 2 people, lift the partition wall B
(part 2) carefully over the assembled partition
wall A (part 1) and insert the pre-assembled
bolts into the holes provided.
14
Now tighten the 8 Maxifix housings (part 9)
using an Allen key.
The Chart partition wall is now fully assembled.
Using 2 people, stand the wall up, carry it to
the predetermined place in the room and align
it to the floor with the help of the 4 levelling
glides.
