Assembly Chart 1240/1204

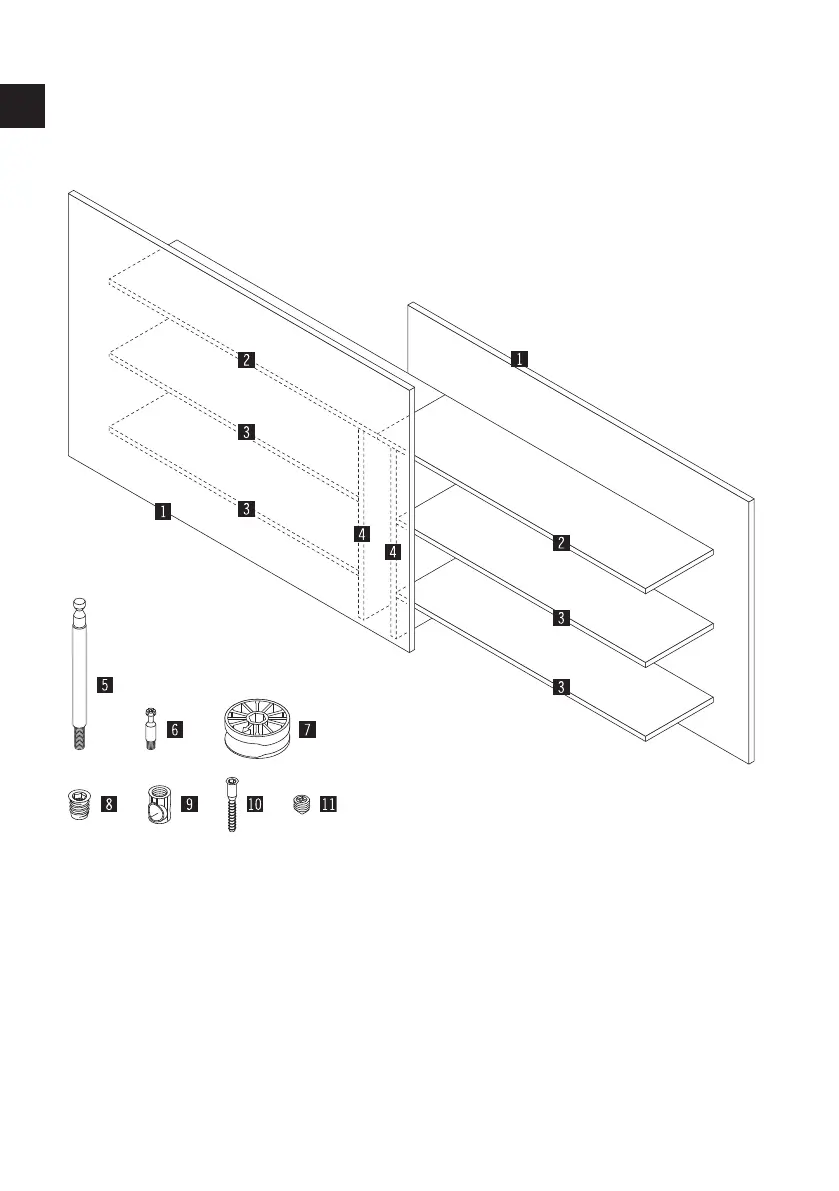

Scope of delivery
1. 2 x partition wall (W 190.0 x H 125.0 cm)
2. 2 x shelf (W 149.9 x D 30.0 x H 2.4 cm)
3. 4 x shelf (W 140.0 x D 30.0 x H 2.4 cm)
4. 2 x shelf (W 93.3 x D 30.0 x H 2.4 cm)
5. 20 x shelf bolts
6. 8 x Maxifix bolts (M8 x 28.5 mm)
7. 8 x Maxifix housings (Ø = 35 mm)
8. 2 x insert nuts
9. 20 x connector housings (Ø 16.0 mm with M10-thread)
10. 8 x corner connectors
11. 20 x connector grub screws with tip (M10 x 12 mm)
