Assembly Chart 1240/1204
partition walls / shelves
1
2

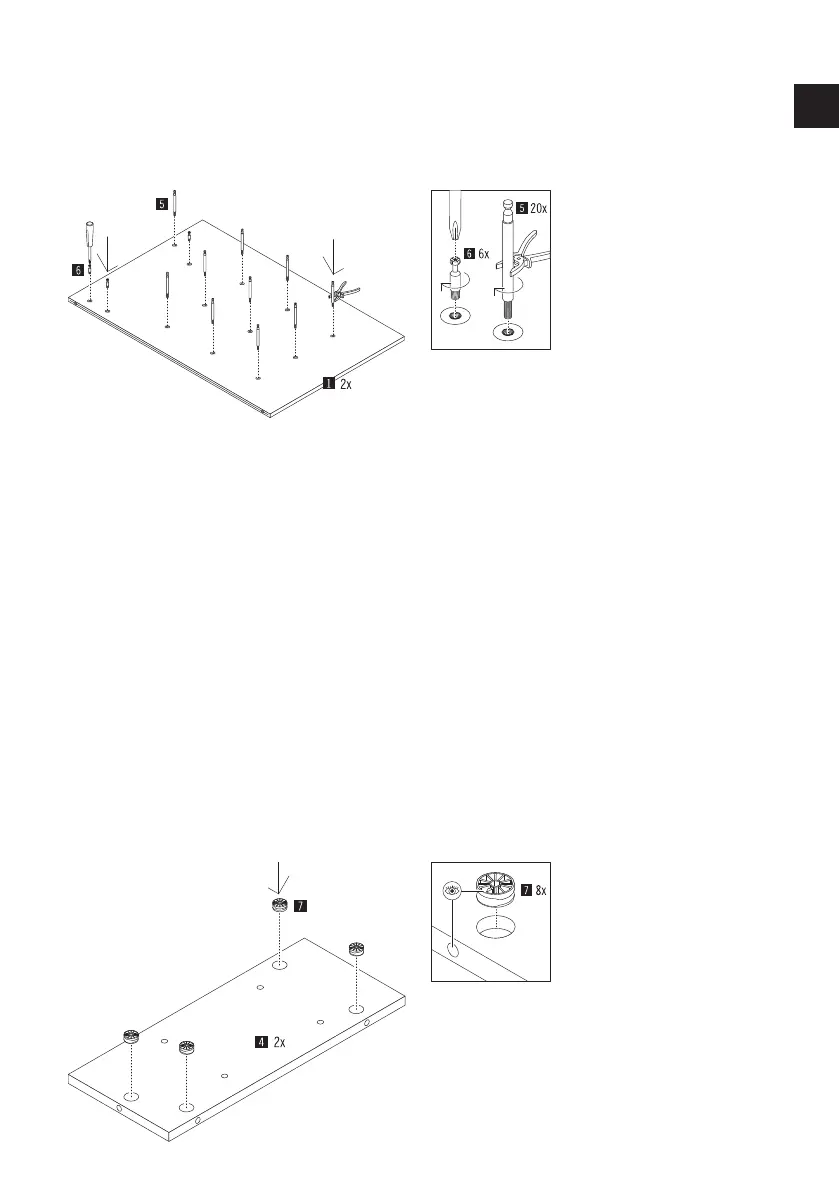

Start the assembly of the Chart partition wall
1240 with the partition wall (part 1).
To do so, lay one of the partition walls on the
floor with the cut-out holes facing up.
First, screw the 10 shelf bolts (part 5) into the
threaded sockets in the correct positions by
hand.
ATTENTION: Throughout the entire assembly,
make sure that the cover fabric does not get
snagged by the various bolts.
Tighten the bolts with pliers. Now screw the 3
Maxifix bolts (part 6) into the threaded sockets
provided for this purpose with a Phillips screw-
driver.
Insert 4 Maxifix housings (part 7) into the ho-
les provided in the shelves (part 4). Make sure
that the arrow on the housing always points to
the hole in the narrow edge.
GB
