Assembly Chart 1240/1204
shelves / partition wall

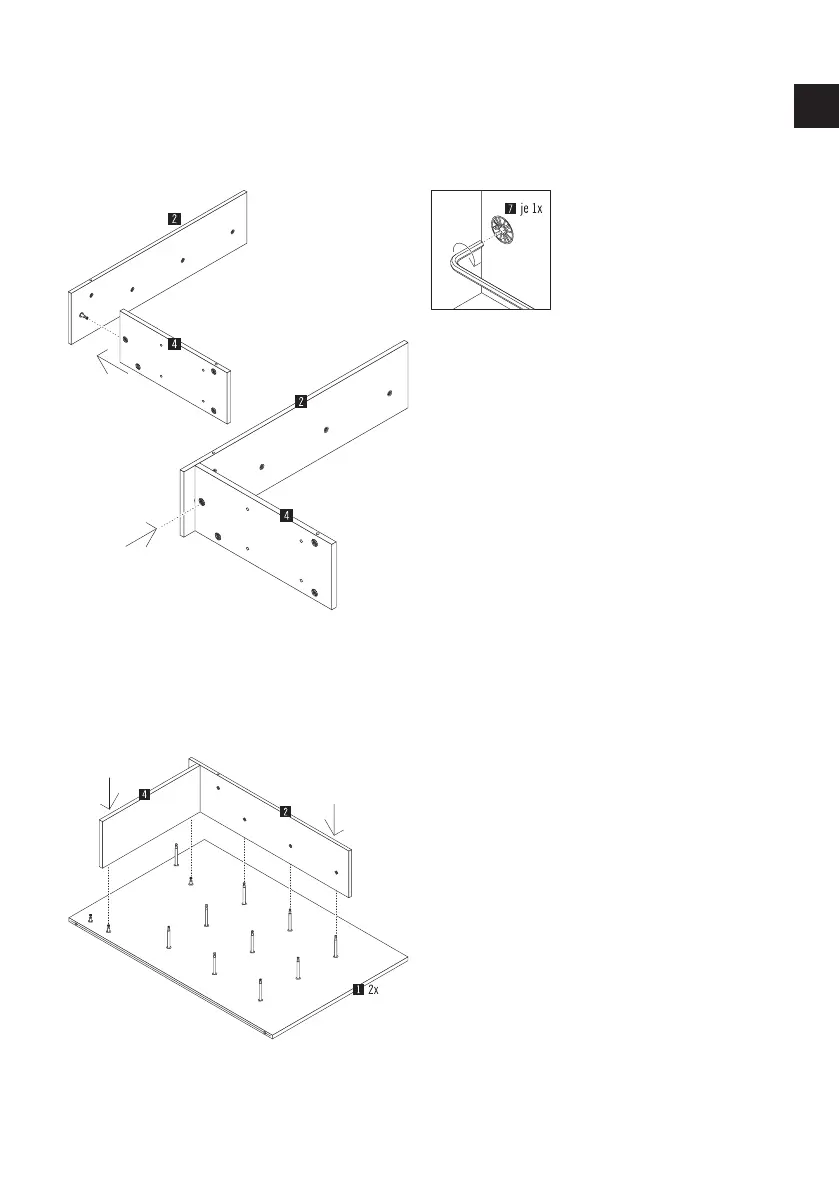

Connect the shelves (parts 2 + 4).
To do so, plug the two boards together as
shown in the illustration and then tighten the
Maxifix housings (part 7) using an Allen key.
Using 2 people, place the two connected shel-
ves (parts 2 + 4) on the bolts of the partition
wall (part 1) at the intended position.
