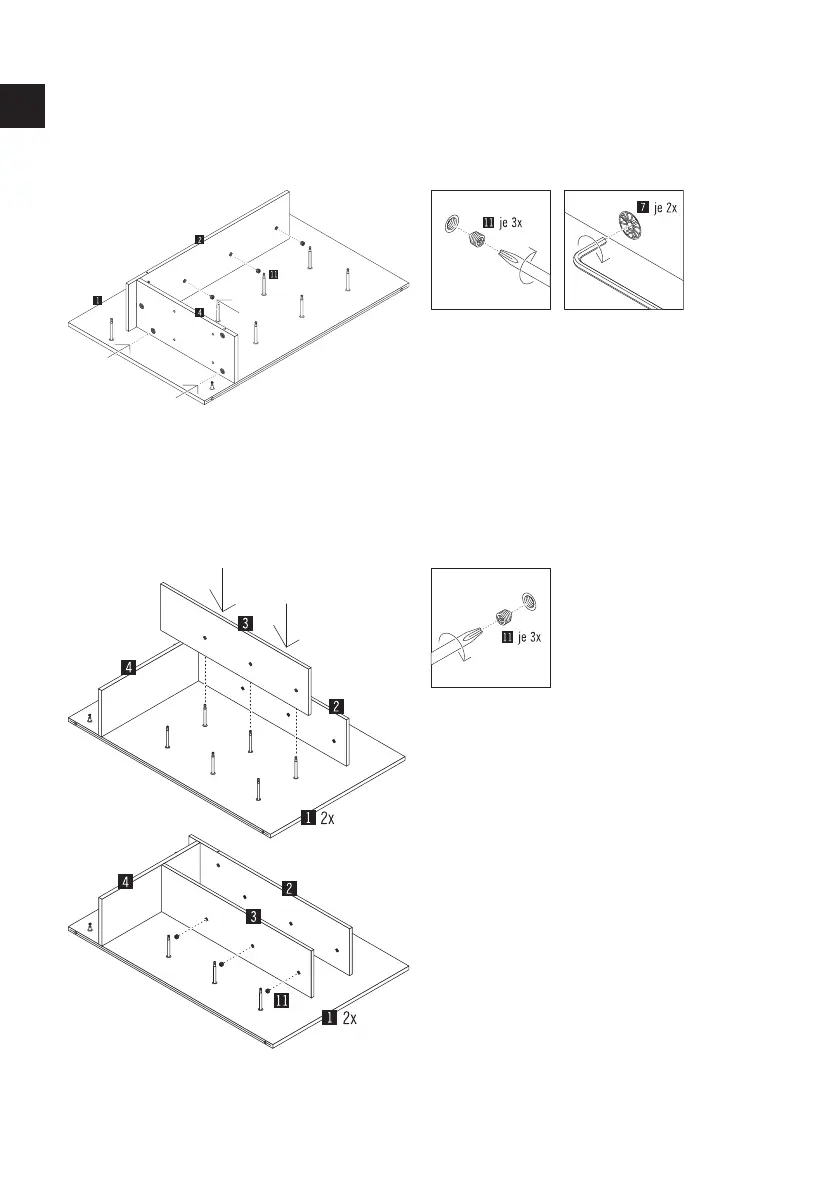

Assembly Chart 1240/1204

shelves / partition wall

First tighten the two Maxifix housings (part 7)

to the shelf (part 4) using an Allen key.

Then press the shelf (part 2) firmly onto the

partition wall and screw the 3 connector grub

screws (part 11) into the connector housings

and tighten the grub screws.

Now place one of the two shelves (part 3) on

the bolts of the partition wall (part 1) in the

intended position.

Then press the shelf (part 3) firmly onto the

partition wall and screw the 3 connector grub

screws (part 11) into the connector housings

and tighten the grub screws.

Cor Chart Series - Page 79
