Assembly Chart 1240/1204

shelves / partition wall

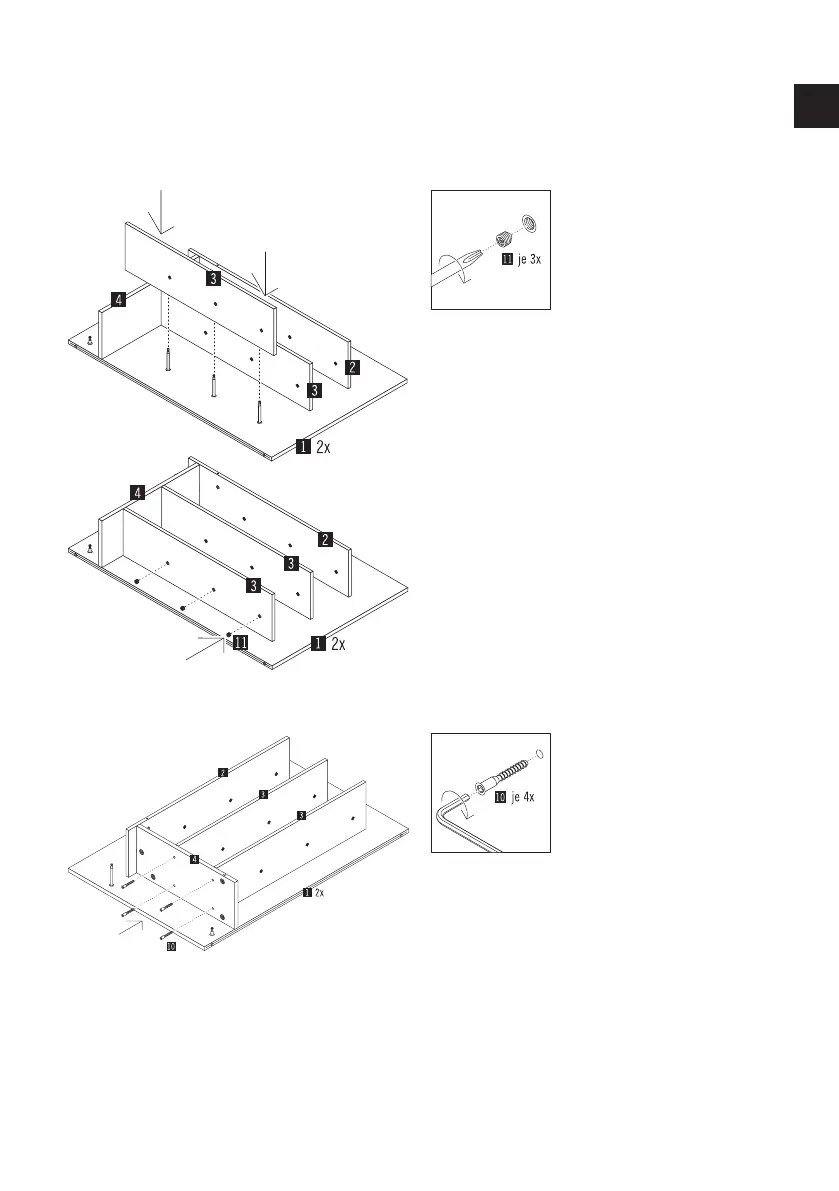

Now place one the second shelf (part 3) on

the bolts of the partition wall (part 1) in the

intended position.

Then press the shelf (part 3) firmly onto the

partition wall and screw the connector grub

screws (part 11) into the connector housings

and tighten the grub screws.

Fix the two shelves (part 3) to the shelf

(part 4) using the 4 corner connectors

(part 10).

Carefully screw the corner connectors into the

holes provided using a cordless screwdriver

with an Allen bit and tighten the screws.

ATTENTION: Now assemble the second parti-

tion wall exactly like the first partition wall.

Cor Chart Series - Page 80
