Assembly Chart 1240/1204
partition wall
11
12
13

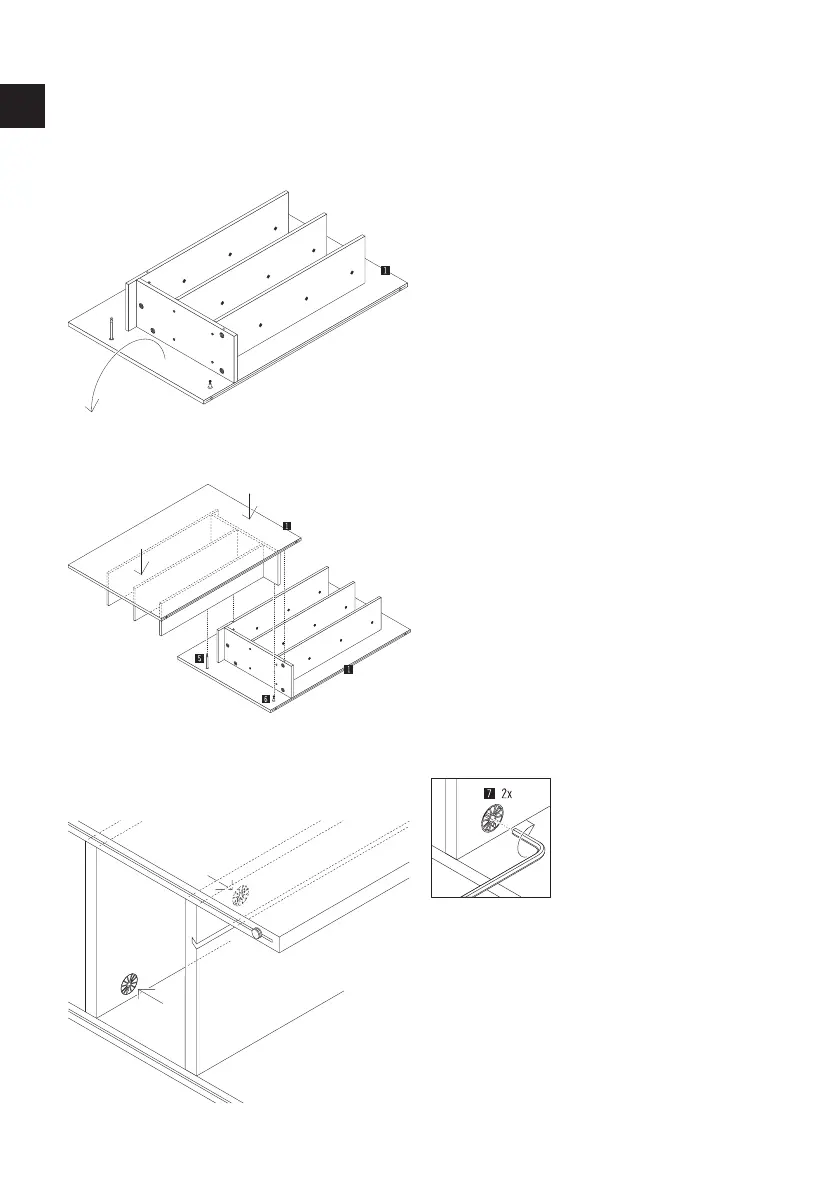

Using 2 people, turn one of the two partition
walls (part 1) 180°.
Using 2 people, carefully lift the partition wall
(part 1) over the other assembled partition
wall and insert the pre-assembled bolts into
the holes provided.
Now tighten the 2 Maxifix housings (part 7)
using an Allen key.
