Assembly Chart 1240/1204
partition wall
14

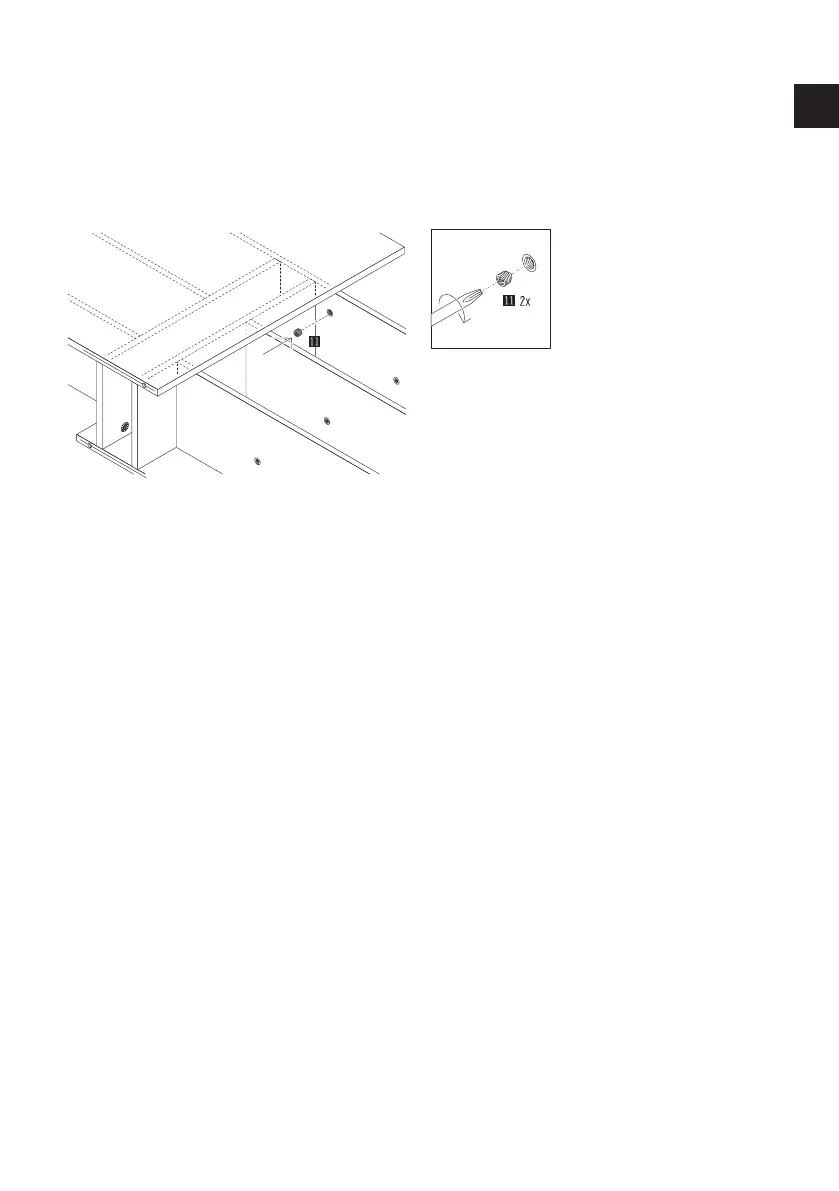

Screw the 2 connector set screws (part 11)
into the connector housings applying light pres-
sure from above onto the partition wall (part 1)
and tighten the grub screws.
The Chart partition wall is now fully assembled.
Using 2 people, stand the wall up, carry it to
the predetermined place in the room and align
it to the floor with the help of the 4 levelling
glides.
