Cor Chart Series - Assembly of the Power Socket

84

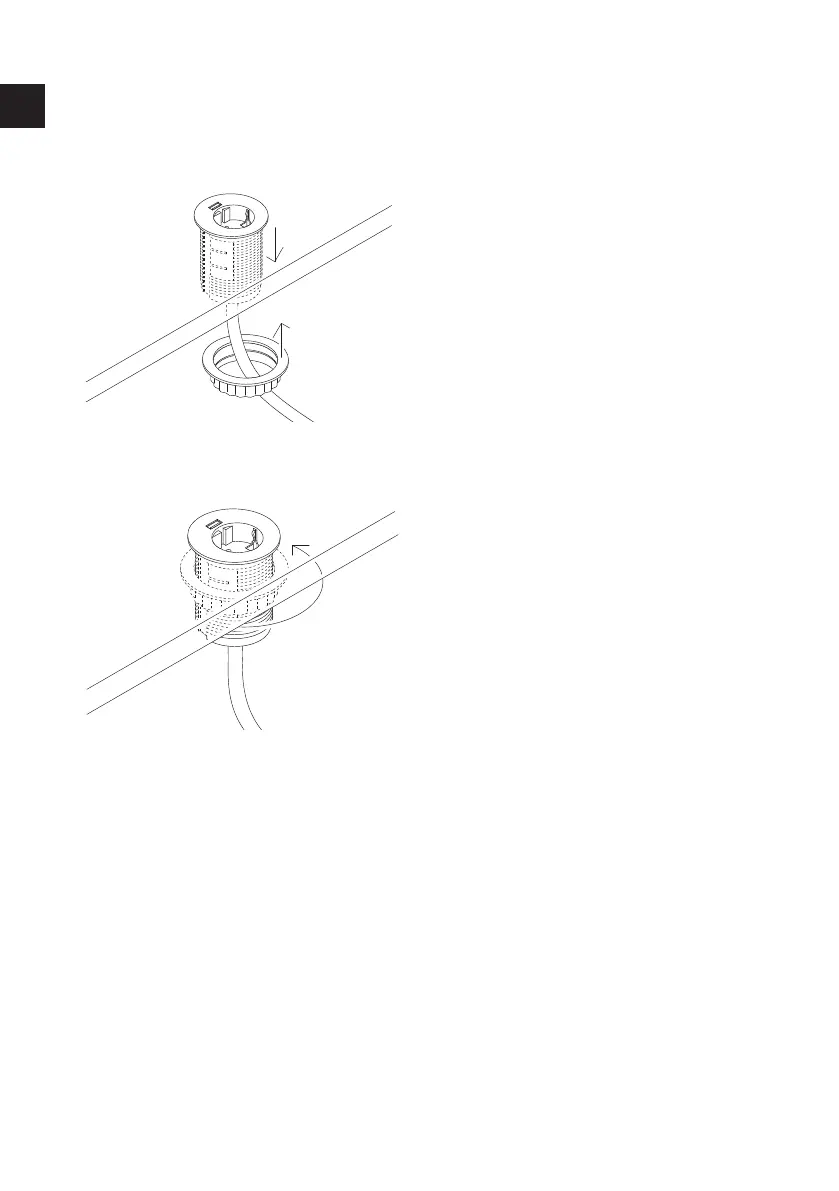

Insert the supplied power socket from the
exposed side into the hole provided for this
purpose.
Assembly of the power socket
1
2
Screw the fastening ring by hand from the
back onto the thread of the power socket.
Now align the power socket and tighten the
ring.
