Instruction for use
45
fig. 65
Towing point
• Fix it to the surface of the means of transport
pulling down firmly, with CE compliant ropes, and
always connecting to the points as indicated in the
figure 64.

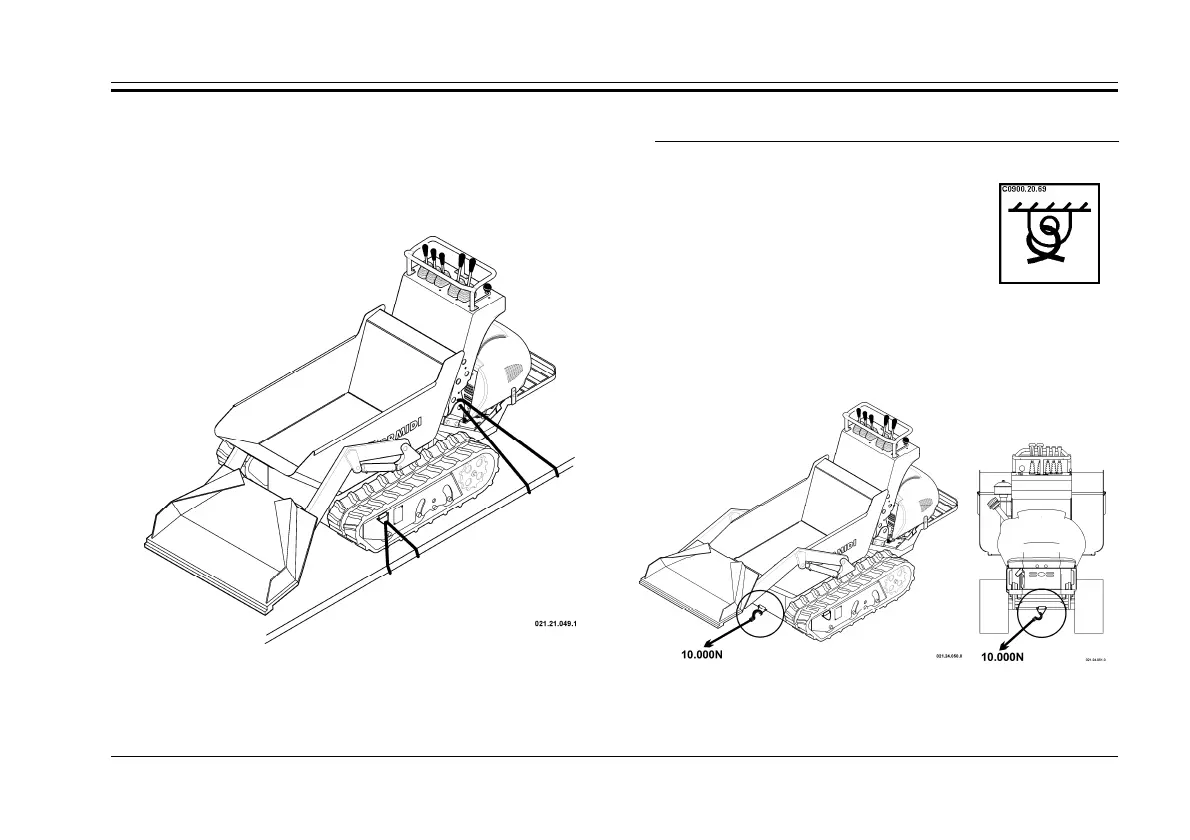

fig. 64 – Anchoring points for transport
3.14. TOWING
The machine is equipped with tow
hooks, located at the bottom of the
undercarriage, front abd rear (see fig.
66); if you need to tow the machine, to
take care of emptying the body.
Each anchor point for the
towing is evidenced by a label with
the symbol shown in figure 65 and
can withstand a pull of 10.000N (1.000kg approx).
fig. 66 – Anchoring points for towing
