Series 65-80
50
4.3. HYDRAULIC CIRCUIT
4.3.1. HYDRAULIC OIL
REQUIRED: Avoid the dispersion of oil in the
environment and carry out the disposal with
respect for the environment and the
regulations in force.
Your machine was provided with a specific
thermometer/signal to verify both the temperature and the
level of the hydraulic oil in the tanks, positioned on the
right side of the dashboard (see fig. 69).
Verifying Temperature
DANGER: The hydraulic oil can reach high
temperatures, especially after a day of work:
avoid substituting the oil when it is hot to
avoid the risk of burning yourself.
READ CAREFUL
installed in the machine is equipped with a
double scale and may be read in centigrade °C
and Farheneit °F according to the conventions
of the different countries. Be reminded that in
Italy measurement in °C is used: refer only to
this value.
The temperature of the hydraulic oil is verified by
reading the value on thermometer “B” (see fig. 69): the
temperature is considered regular when it does not
surpass 85°C.
Verifying Oil Level
Every 8 hrs
Check the level of hydraulic oil in the
tank.
To verify the correct hydraulic oil level, the
machine will be placed on a flat surface, with the body
closed and self-loading arm lowered to the ground, if
any.
The engine must be started for several minutes
(about 5 min.) So that the
oil has a temperature of
40 ° C.
The correct level is when
the oil reaches the bottom of
the line “D” (see fig. 69 “D”).
Restoring Oil Level
•
Unscrew the top “A” on
the upper tank;
• Restore the level by

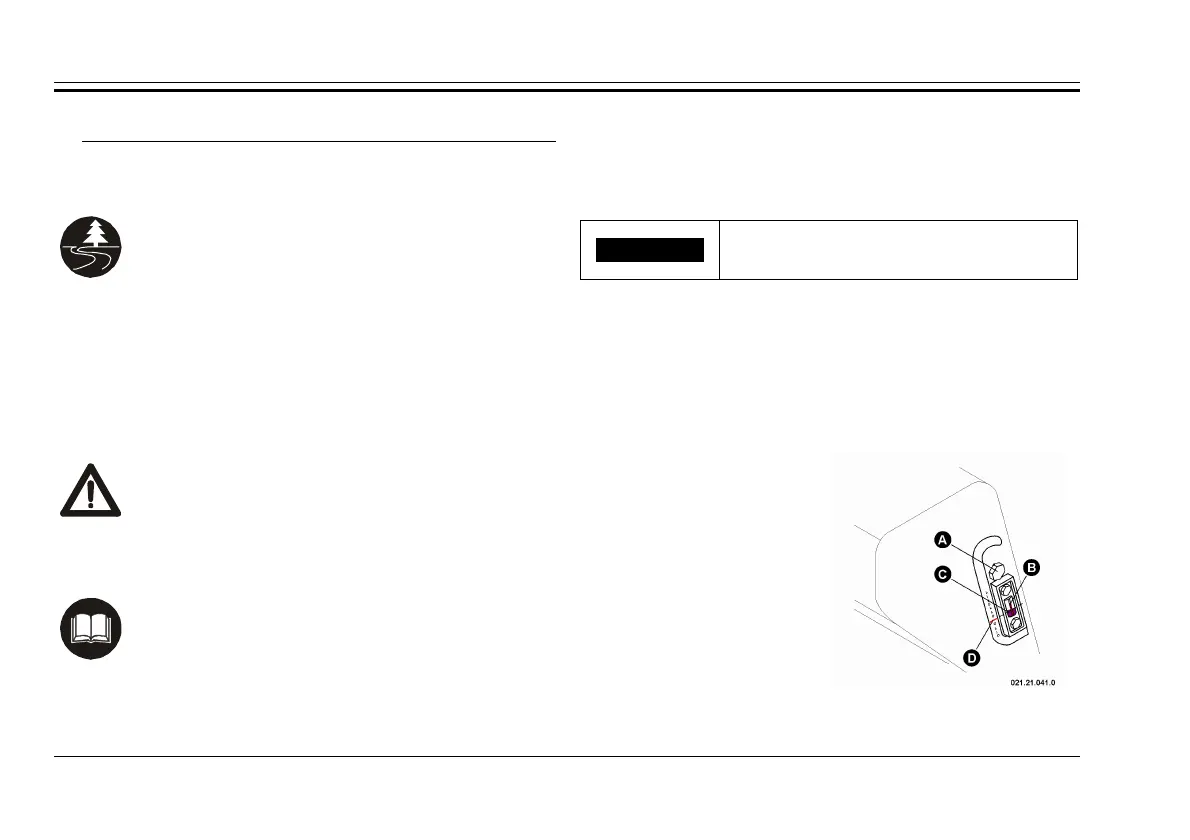

fig. 69 – Oil level
