Cornelius CR1200 - Page 71

68
166240004
12/1/94 Rev 3/4/96
ÄÄÄ
ÄÄÄ
WATER
DUMP
VALVE
WATER PUMP
WATER
FLOAT
VALVE
EVAPORATOR
HOT GAS
SOLENOID
VALVE
THERMOSTATIC
EXPANSION VALVE
REMOTE CONDENSER
FAN MOTOR
FAN BLADES
PRESSURE SWITCH
HEAD
PRESSURE
CONTROL
HEAT EXCHANGER
HIGH SIDE
SERVICE
VALVE
LOW SIDE
SERVICE
VALVE
COMPRESSOR
FILTER/DRIER
PRESSURE SWITCH
LIQUID SOLENOID
VALVE
CHECK
VALVE
SERVICE VALVE
COUPLINGS
VALVES
RECEIVER
EVAPORATOR
THERMOSTATIC
EXPANSION VALVE

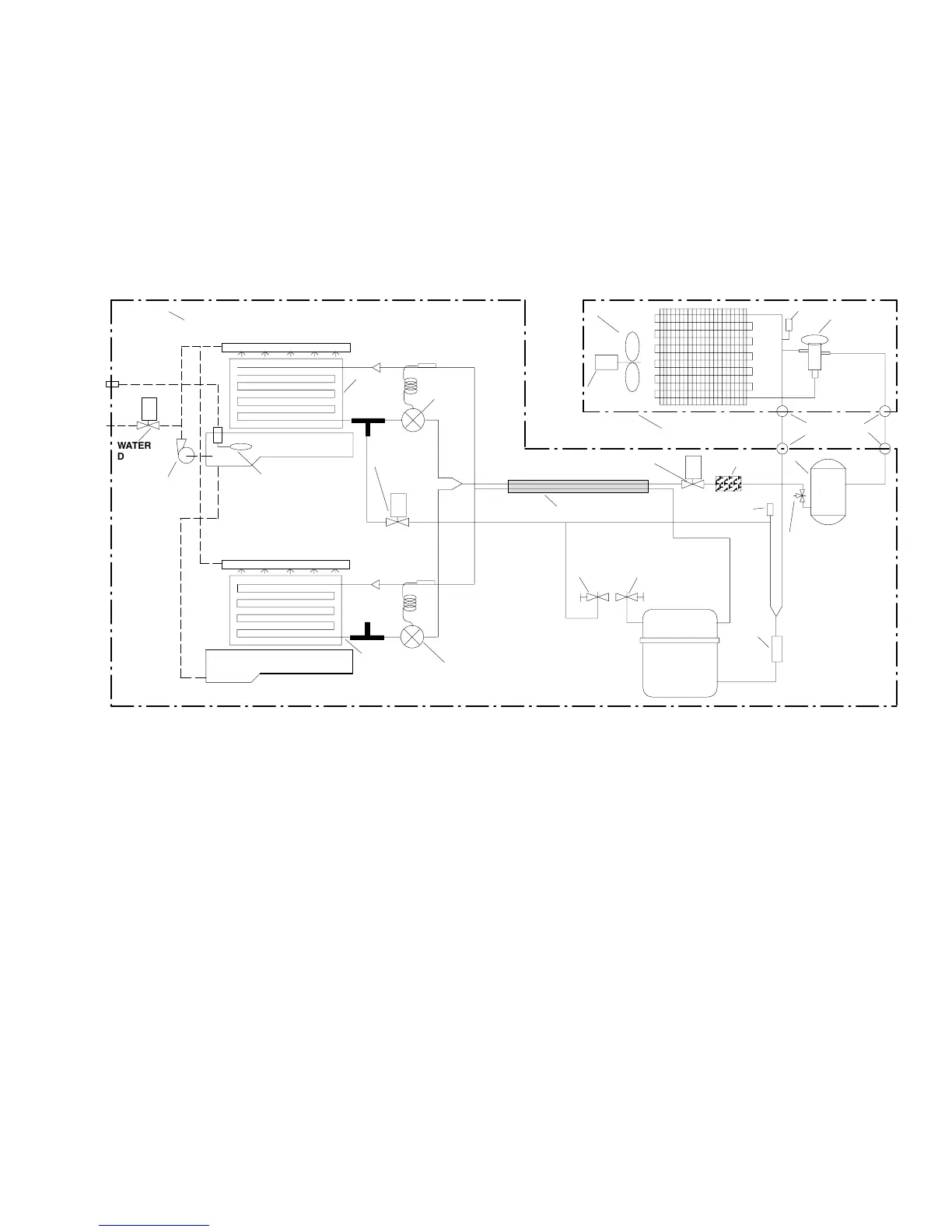

REFRIGERATION AND WATER SYSTEM
MODELS IRC1030, IRC1230 AND IRD1448
AUGUST 3, 1994
