b. Connect the Torch Control Cable to the Torch Trigger Control Connection. See Figure 3.
c. Connect the Grounding Cable to the ground connection. See Figure 3.
d. Connect the Ground Clamp to your workpiece
e. Connect your compressed air source to the gas connection on this unit’s back panel.

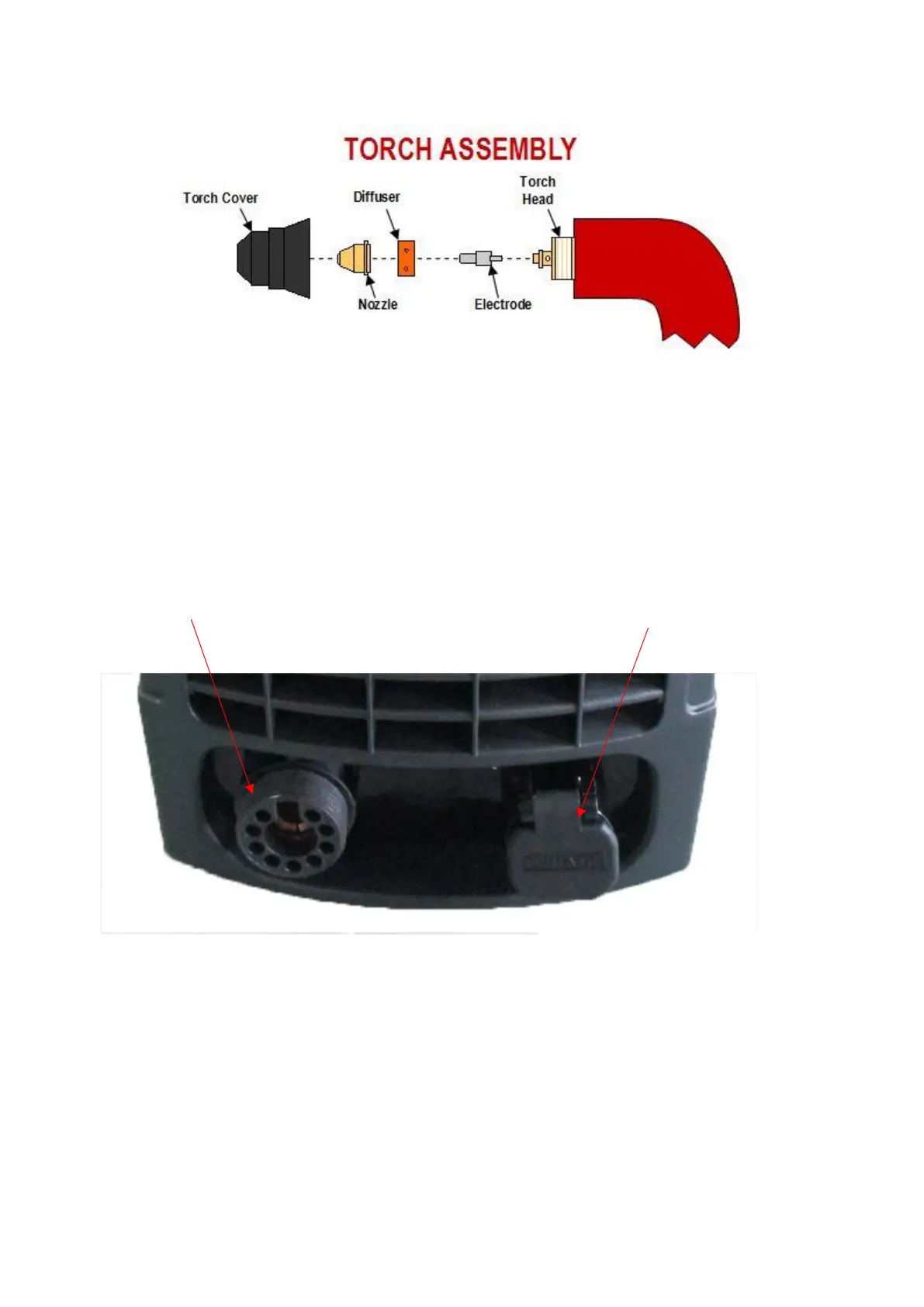

Figure 3
Ground connection
Torch connection
