THE FLAT VERSION EXYL
It is designed and manufactured to customer specifications, to
protect from the sun and elements, snowfall excluded; EXYL
must be fixed to a suitable support wall and then it can be
used in wind up to grade 6 on the Beaufort scale in versions up
to 5 metres and wind up to grade 5 on the Beaufort scale in
versions from 5 to 6 metres, as shown in table 1 (page 35).

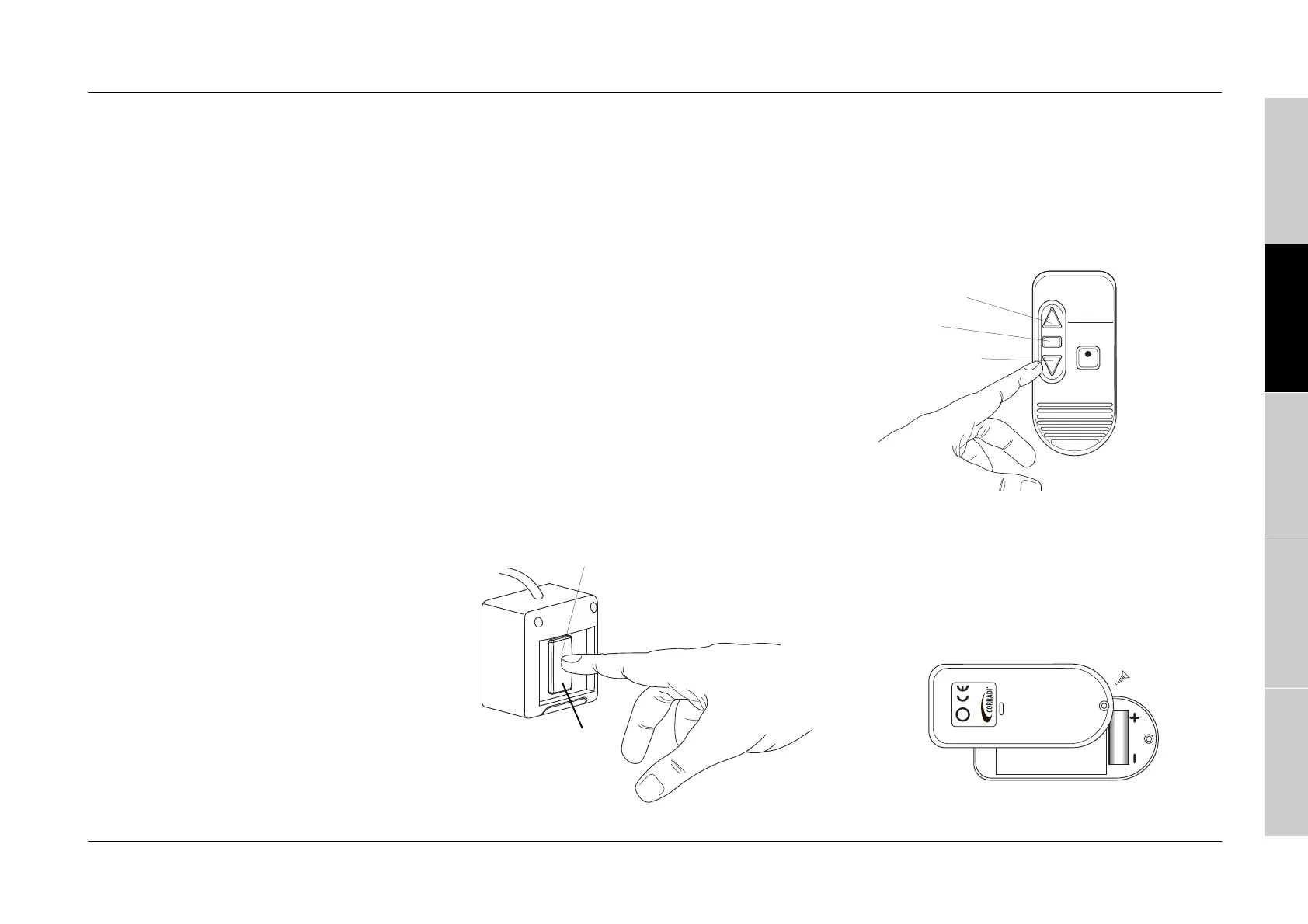

HOW TO CONTROL EXYL
ELECTRIC COMMAND
In case of Exyl with a wall-switch, push the switch in the low
area in order to move the awning downwards, push it in the
up area to move the awning upwards. Once you release the
switch the awning will stop.
RADIOCONTROL
In case of Exyl with a radiocontrol, use the respective
switches to move the awning upwards, downwards or to stop
it (see fig.).
Replacement of the battery
In order to replace the battery remove the screw on the back
of the radiocontrol and replace the batteries with a similar
model (alkaline 12 Vdc mod. 23 A).
Beware not to reverse the polarities.
Beware to use the correct model.
Dispose the used battery appropriately.
Awning going
downwards
Awning going upwards
Awning going
upwards
Awning going
downwards
Stop
Led
Indicates the
battery state
(red is working)
