CALIBRATION IN VIC-3D

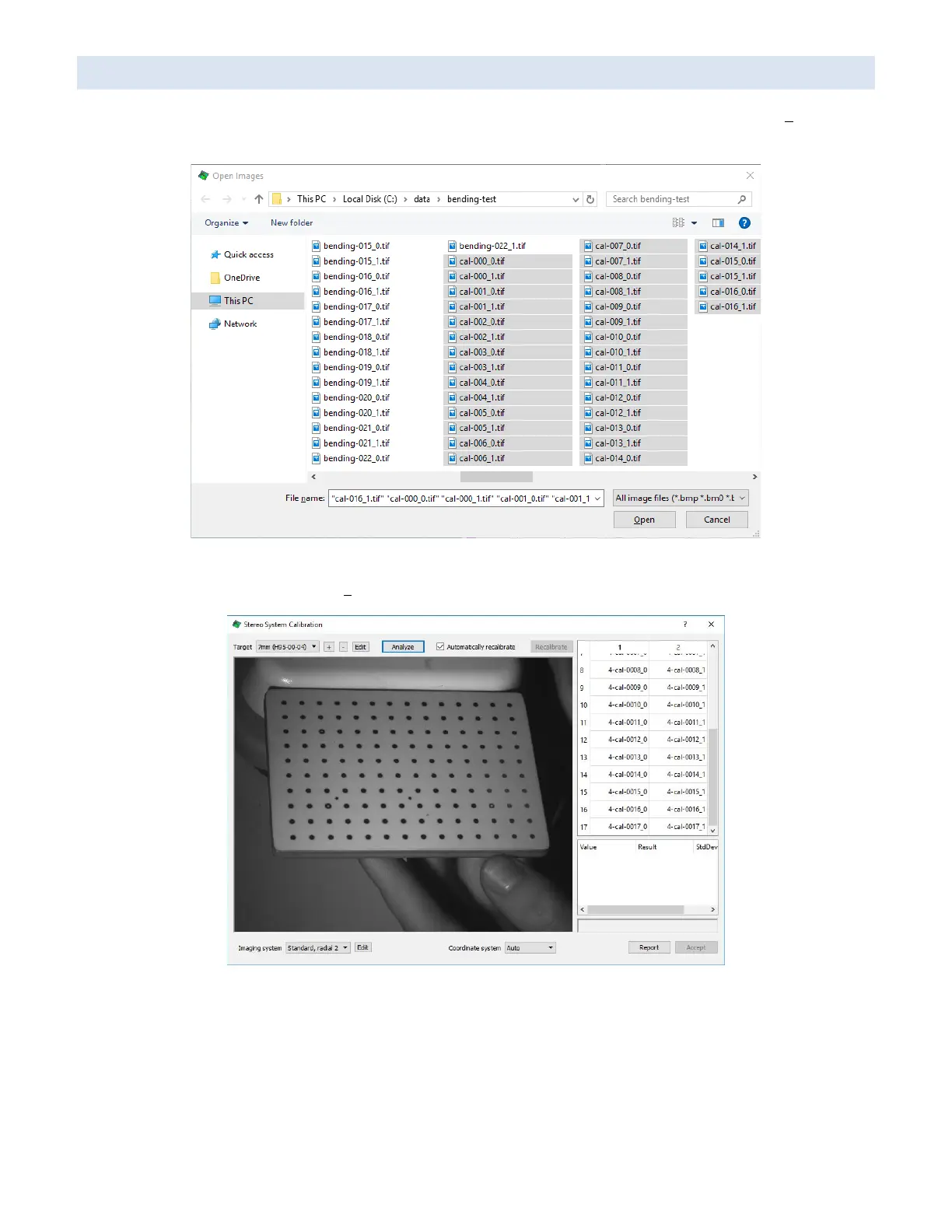

To calibrate using the acquired grid images, start Vic-3D. Select Calibration images from the start page, or click Project…
Calibration images. Navigate to the correct folder and select all your calibration images; click Open.
The selected images will appear under the Calibration Images section in the Images tab. To begin calibration, click the
Calibrate button in the toolbar, or select Calibration… Calibrate stereo system.
If using a coded target, Vic-3D will detect the target parameters and spacing and begin extraction.
For a non-coded target, select the target you used using the drop-down box at the top left of the dialog. If your grid is not
listed, click the “+” next to the dropdown. Vic-3D will attempt to identify the geometry of the grid, but the spacing must be
entered. Then, click Analyze to extract the target points.
At this point, you will see the images in sequence, with the identified target points highlighted.
