Corsair AX860i User Manual

AXi SERIES
™
AXi SERIES
™
27 28

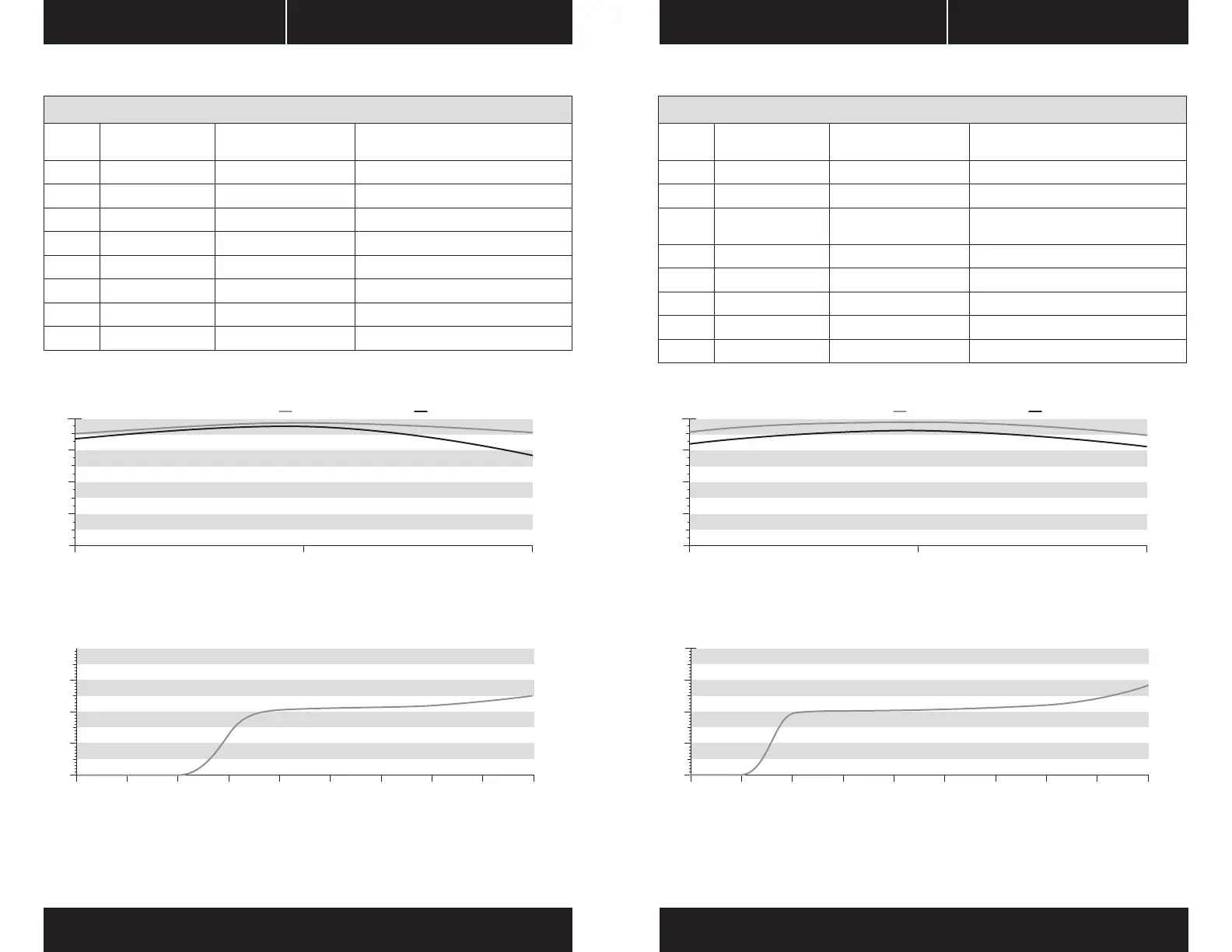

Corsair-Verkabelung
AX1200i
Anzahl Länge Stecker/Kabel
1 610mm ± 10mm 1 ATX-Kabel 24-polig (20+4)
2 650mm ± 10mm 1 EPS/ATX12V-Kabel 8-polig (4+4)
6 600mm ± 10mm 1 PCI-E-Kabel 8-polig (6+2)
3 700mm ± 10mm 4 SATA-KABEL (4 SATA)
1 850mm ± 10mm 4 SATA-KABEL (4 SATA)
3 750mm ± 10mm 4 Peripheriekabel (4-polig)
2 101mm ± 5mm 1 Kabel für Diskettenlaufwerk (4-polig)
1 800mm ± 10mm 1 PMBUS-Kabel (4-polig)
Corsair AX1200i Ezienz des Netzteils
Corsair AX1200i Kurve zur Geräuschentwicklung des Netzteils
Corsair-Verkabelung
AX860i
Anzahl Länge Stecker/Kabel
1 610mm ± 10mm 1 ATX-Kabel 24-polig (20+4)
2 650mm ± 10mm 1 EPS/ATX12V-Kabel 8-polig (4+4)
6
600mm ± 10mm;
750mm ± 10mm
1 PCI-E-Kabel 8-polig (6+2)
2 700mm ± 10mm 4 SATA-KABEL (4 SATA)
1 850mm ± 10mm 4 SATA-KABEL (4 SATA)
2 750mm ± 10mm 4 Peripheriekabel (4-polig)
2 101mm ± 5mm 1 Kabel für Diskettenlaufwerk (4-polig)
1 800mm ± 10mm 1 PMBUS-Kabel (4-polig)
Corsair AX860i Ezienz des Netzteils
Corsair AX860i Kurve zur Geräuschentwicklung des Netzteils
GERÄUSCHENTWICKLUNG DES LÜFTERS (db)
SYSTEMLAST (Watt)
SYSTEMLAST
% ZERTIFIZIERUNG
EINGANG 230Vac
EINGANG 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
GERÄUSCHENTWICKLUNG DES LÜFTERS (db)
SYSTEMLAST (Watt)
SYSTEMLAST
% ZERTIFIZIERUNG
EINGANG 230Vac
EINGANG 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
GERÄUSCHENTWICKLUNG DES LÜFTERS (db)
SYSTEMLAST (Watt)
SYSTEMLAST
% ZERTIFIZIERUNG
EINGANG 230Vac EINGANG 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
GERÄUSCHENTWICKLUNG DES LÜFTERS (db)
SYSTEMLAST (Watt)
SYSTEMLAST
% ZERTIFIZIERUNG
EINGANG 230Vac EINGANG 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%

Corsair AX860i Specifications

General

Efficiency	92 %
Total power	860 W
Power factor	0.99
Input current	6 - 12 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Combined power (+12V)	859.2 W
Combined power (-12V)	9.6 W
Combined power (+3.3V)	125 W
Combined power (+5Vsb)	15 W
Max output current (+12V)	71.6 A
Max output current (-12V)	0.8 A
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Max output current (+3.3V)	25 A
Max output current (+5Vsb)	3 A
Maximum input current (@110V)	+12V, +3.3V, +5V, +5Vsb, -12V A
Power Factor Correction (PFC) type	Active
Fan diameter	120 mm
On/off switch	Yes
Product color	Black
Number of fans	1 fan(s)
Cabling type	Fully-Modular
Motherboard power connector	24-pin ATX
Floppy drive power connector	2
Number of SATA power connectors	12
PCI Express power connectors (6+2 pin)	6
Peripheral (Molex) power connectors (4-pin)	8
Purpose	PC
ATX version	2.31
EPS version	2.92
Noise level	28.7 dB
Certification	cTUVs, TUV, CB, CE, FCC, CCC, RCM, GOST-R, KC, IRAM, BSMI
80 PLUS certification	80 PLUS Platinum
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Package weight	4000 g

Weight and Dimensions

Depth	160 mm
Width	150 mm
Height	86 mm
Weight	3290 g
