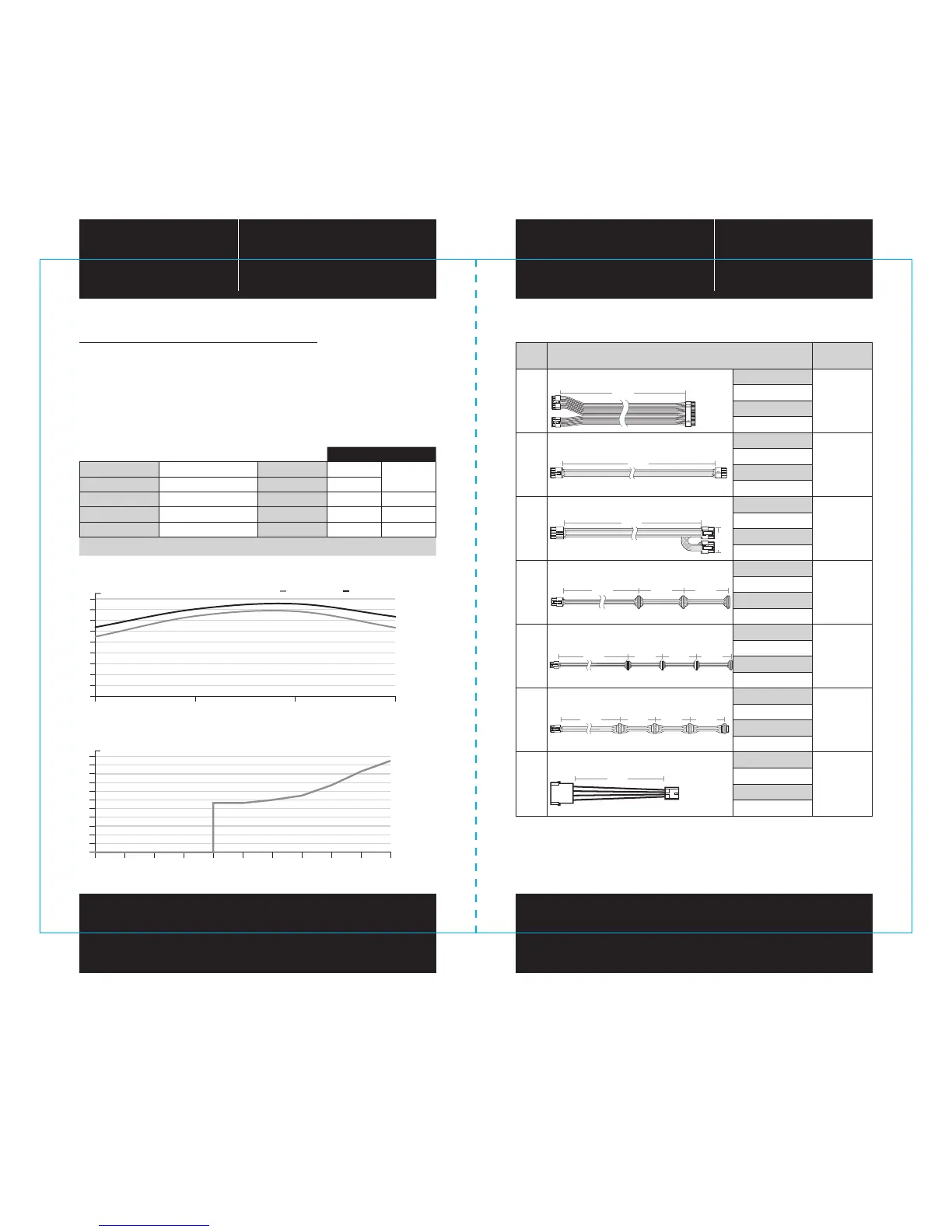

Corsair RM550x User Manual

5 6
RMx SERIES
™
RMx SERIES
™
Max Load Max Output
Model RPS0017 +3.3V 25A
150W
Part No. CP-9020093 +5V 25A
AC Input Rating 100-240V +12V 70.8A 850W
Input Current 12A-6A -12V 0.8A 9.6W
Frequency 47˜63Hz +5Vsb 3A 15W
Total Power: 850W
RM850x
Dimensions: 150mm (W) x 86mm (H) x 180mm (L)
Package contents
• Corsair RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag
• Cable ties
• Corsair case badge
• User manual
Qty Description Total Length
1
ATX Cable 24 pin (20+4)
Connectors Per Cable
610mm
(± 10mm)
1
Total Connectors
1
2
EPS/ATX12V 8 pin (4+4) cable
Connectors Per Cable
650mm
(± 10mm)
1
Total Connectors
2
3
PCIe 8 pin (6+2) cable
Connectors Per Cable
750mm
(± 10mm)
2
Total Connectors
6
2
SATA cable (3 SATA)
Connectors Per Cable
750mm
(± 10mm)
3
Total Connectors
6
1
SATA cable (4 SATA)
Connectors Per Cable
850mm
(± 10mm)
4
Total Connectors
4
2
Peripheral cable (4-pin)
Connectors Per Cable
750mm
(± 10mm)
4
Total Connectors
8
1
Floppy adapter (4-pin)
Connectors Per Cable
101mm
(± 5mm)
1
Total Connectors
1
Corsair RM850x DC cable listing
450mm 100mm 100mm 100mm
450mm 100mm 100mm 100mm
550mm 100mm 100mm 100mm
505mm 115mm 115mm 115mm
101mm
650mm
650mm
610mm
610mm
600mm
150mm
600mm
150mm
500mm 100mm 100mm
115mm 115mm520mm
Corsair RM850x power table
Corsair RM850x power supply eciency
Corsair RM850x power supply fan noise curve
input 115Vac input 230Vac
22
20
18
16
14
12
10
8
6
4
2
0
0 85 170 255 340 425 510 595 680 765 850
93
91
89
87
85
83
81
79
77
75
10010
5020
22
20
18
16
14
12
10
8
6
4
2
0
0 85 170 255 340 425 510 595 680 765 850
93
91
89
87
85
83
81
79
77
75
10010
5020
% EFFICIENCY
SYSTEM LOAD
Fan Noise (db)
Power Output - Watts

Corsair RM550x Specifications

General

Efficiency	90 %
Total power	550 W
AC input voltage	- V
Cabling type	Fully-Modular
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	1
EPS power connector (4+4 pin)	Yes
Number of SATA power connectors	6
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	4
Purpose	PC
ATX version	2.4
EPS version	2.92
Noise level	- dB
Bearing technology	Rifle
80 PLUS certification	80 PLUS Gold
Mean time between failures (MTBF)	100000 h
Continuous output rated temperature	50 °C
Power supply unit (PSU) form factor	ATX
Cooling type	Active
Fan diameter	140 mm
Fan location	Top
Illumination	-
Product color	Black
Number of fans	1 fan(s)
Cables included	AC

Weight and Dimensions

Depth	150 mm
Width	160 mm
Height	86 mm
