MOBILTEX® DATA LTD.

Calgary, Alberta

www.corTalk.com

TITLE: uDL1 Configuration and Operation Guide

DOCUMENT NO.:

UDL1-MAN-001

SHEET:

8 of 26

REV:

1.07

 Programming Application and Driver Media (CD or USB flash drive)

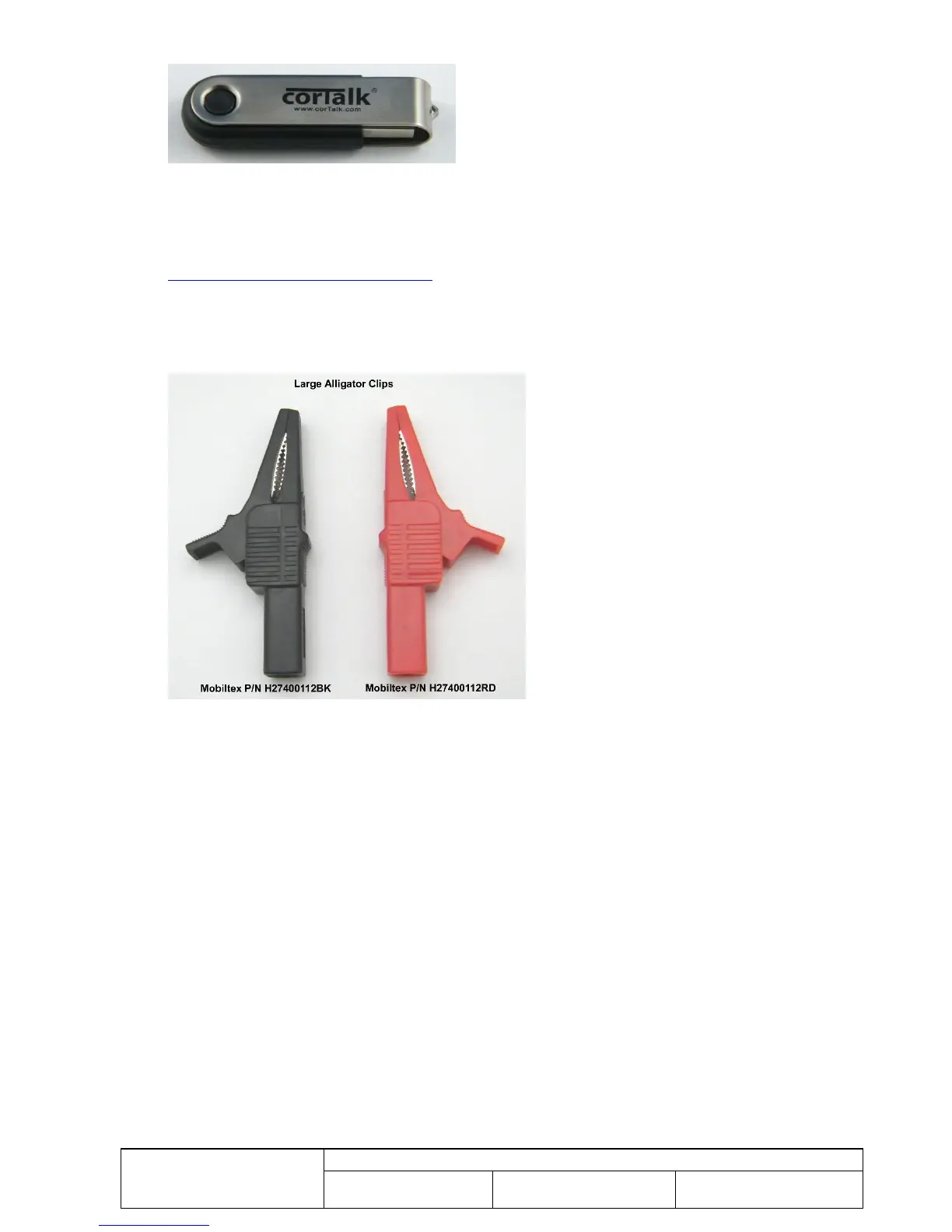

Figure 6 Programming Application and Driver USB Flash Drive

To use a PC to communicate with the uDL1, you will require the media (CD or USB flash drive) that shipped

with the uDL1. The media contains drivers and the uDL1 configuration application. If you do not have the

media, the contents can be downloaded from the Mobiltex web site at the following URL.

http://www.mobiltex.com/cathodic/udl1

The following optional items are available separately:

 Large Alligator Clips (H27400112BK/H27400112RD)

Figure 7 Large Alligator Clips
