11ASSEMBLY INSTRUCTIONS |

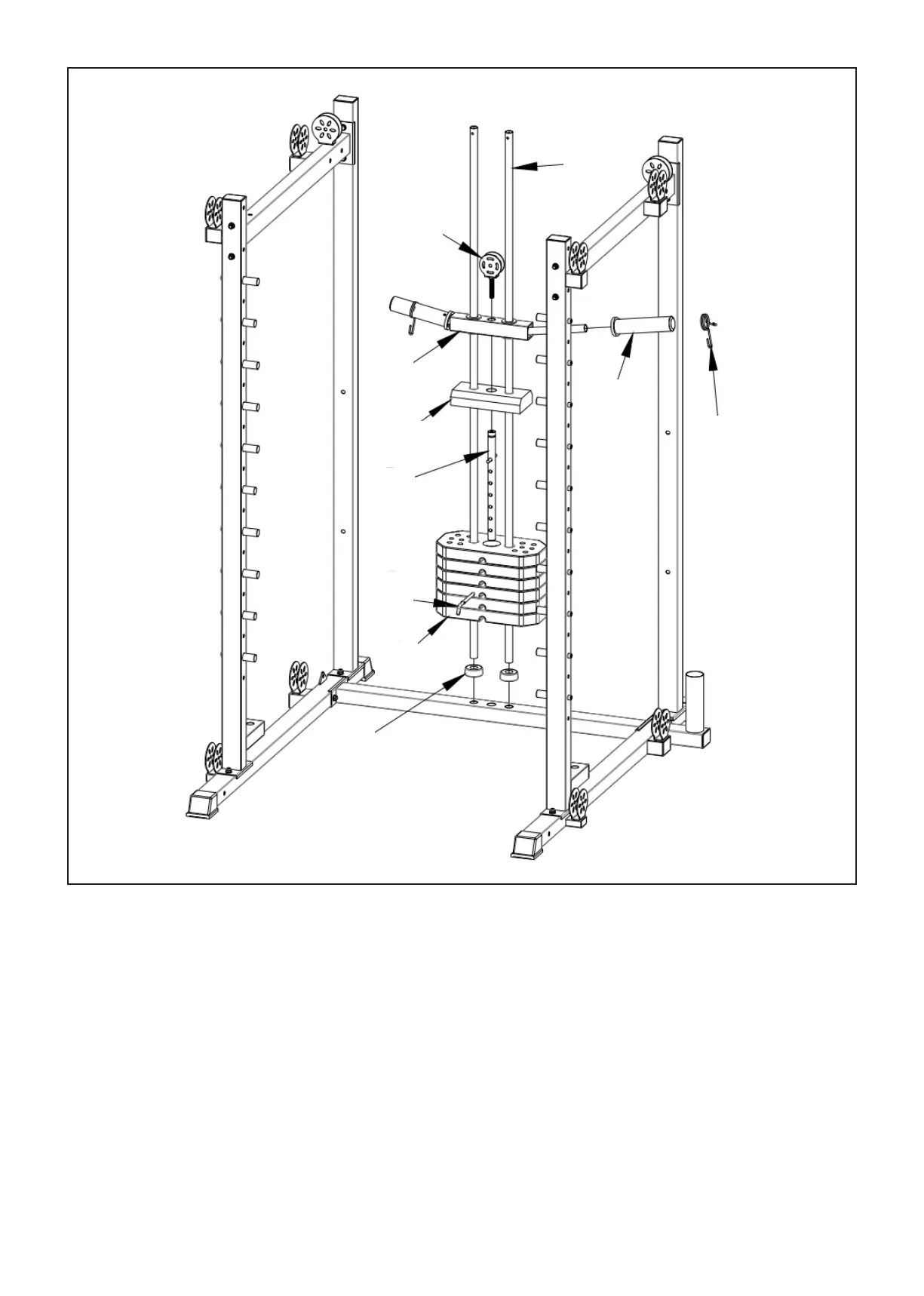

1. Install (#10) into the (#1) hole as shown, then (#49) into (#10). Add the counter block (#42) into (#10)
(Note that the counter block groove portion is uniformly down) and insert (#42) into the middle hole
for (#12).
2. Put the counterweight block (small) (#43) into (#10) and then place (#11) in (#10). Finally add (#13)
into (#12).
3. Attach (#47) to (#11) as shown. Part (# 48) goes into (# 47) when you load additional weight plates of
your own (additional weight plate sold separately). NOTE: The direction of the weight block (plug the
weight pin) must go down.
STEP 3
10
13
11
43
12
50
42
49
47
48
To Next Page
