C. ADJUST BURNER FLAMES
1) Turn all burners on highest setting and
check the flames. They should be blue
in color and may have some yellow
tipping at the ends of the flame when
using LP gas. Foreign particles in the
gas line may cause an orange flame at
first, but this will soon disappear.
2) Turn the ra
nge burner knob to “LO”
while observing the flame.
3) Adjustment
s must be made with two
other burners in operation on a medium
setting. This prevents the upper row of
flames from being set too low, resulting
in the flame being extinguished when
other burners are turned on.
4) To adjust
the flame, remove the knobs;
insert a screwdriver through the access
hole in valve shaft as shown. Make the
adjustment by slowly turning the screw
until flame appearance is correct. (See
Figures 22 and 23)
− If the f
lames are too small or fluttered,
open the valve more than the original
setting.
− If the flames are too large, close the
valve more than the original setting.

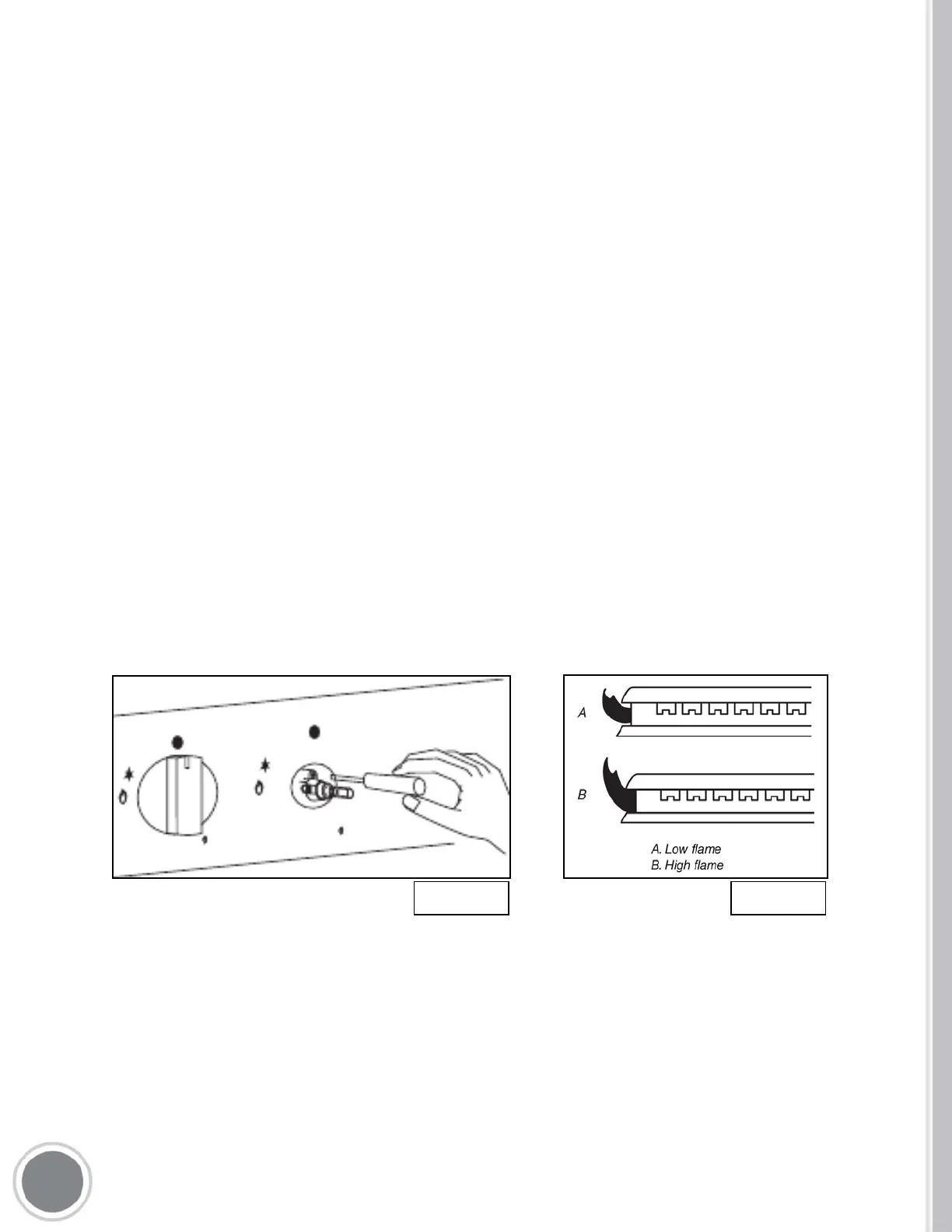

Figure 22 Figure 23
