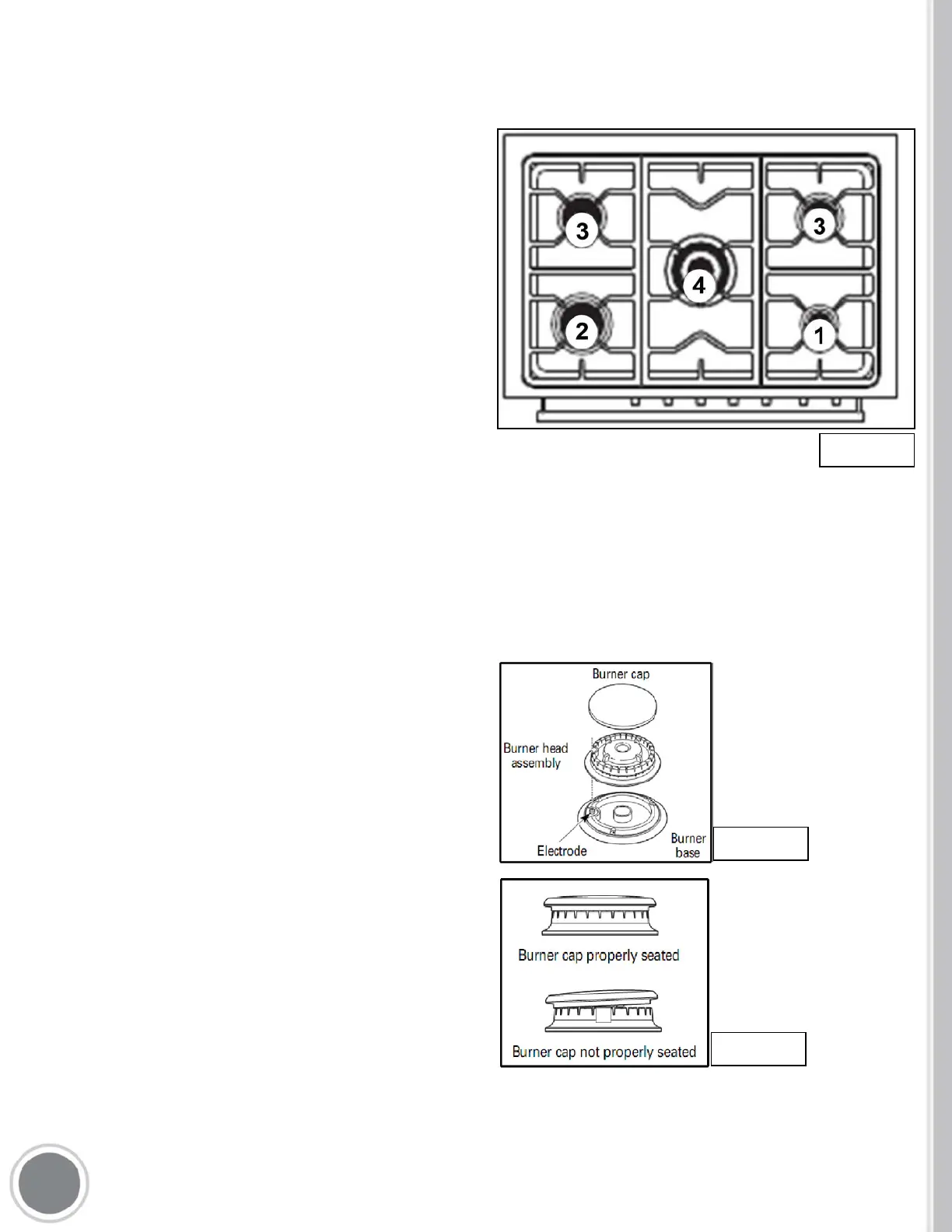

Location of the Burners
1. Auxil
iary burner (Front right) - 5,000 BTU
2. Rapid burner ( Front left) – 8,500 BTU
3. Semi-rapid burners (Rear left and right) –
7,000 BTU
4. Triple-ring burner – (Center) 18,000 BTU
Placement of Burner Heads and Caps
1) Place a burner cap on each burner
head, matching the cap size to the
head size. The cap for each burner
has an inner locating ring which centers
the cap correctly on the burner head.
Be sure that all the burner caps and
burner heads are correctly placed
BEFORE using your appliance. (See
Figure 27)
2) Make sur
e each burner cap is properly
aligned and level. (See Figure 28)
3) Turn t
he burner on to determine if it will
light. If the burner does not light,
contact a qualified service center.
4) Do not service the sealed burner
yourself.
Figure 28
35
