Cosmo COS-244ECC Installation Manual

13
INSTALLATION INSTRUCTIONS
Installing Brackets After Placing Cooktop
in Cutout
1. Using 2 or more people, place the
cooktop right side up into the cutout.
a. NOTE: Make sure that the front
edge of the cooktop is parallel
to the front edge of the
countertop. If repositioning is
needed, lift the entire cooktop
up from the cutout to avoid
scratching the countertop.
2. Remove the selected bracket
locations from the bottom of the
cooktop base.
3. Select bracket mounting location that
will allow the bracket to extend far
enough out from the cooktop for the
installation of clamping screws.
4. Attach brackets to cooktop base
bottom with bracket clamping screws
using the bracket mounting holes.
Securely tighten screws.

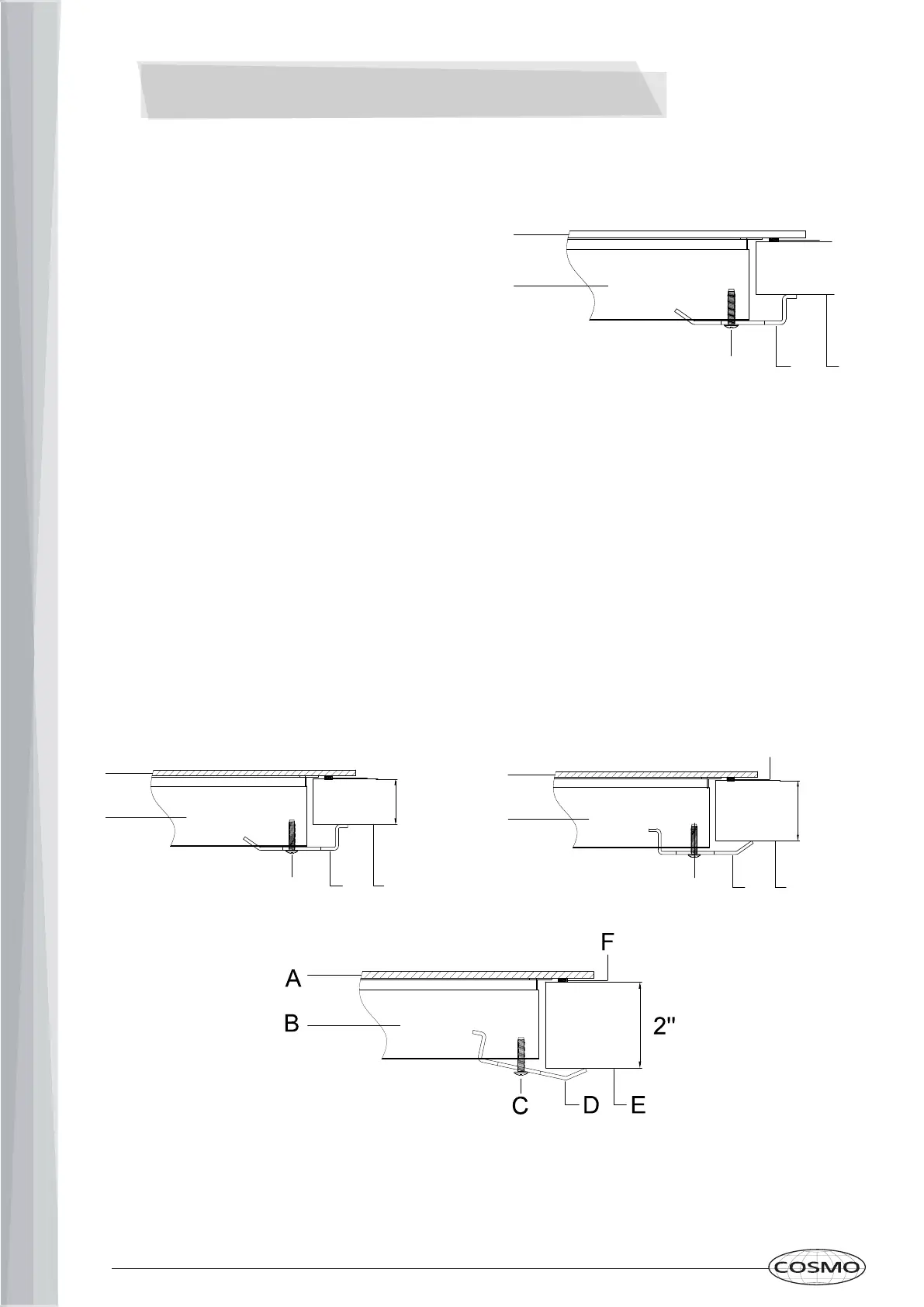

A) Cooktop
B) Cooktop base
C) Clamping screw
D) Clamping bracket (extends far
enough beyond cooktop base to
allow installation of clamping
screws)
E) Countertop
F) Foam seal
A
B
C
D
F
E
A
B
C
D
A
B
C
D
F
1 1/8''
1 9/16 ''
E
F
E
3cm
4cm
5cm
1.)
2.)
3.)
