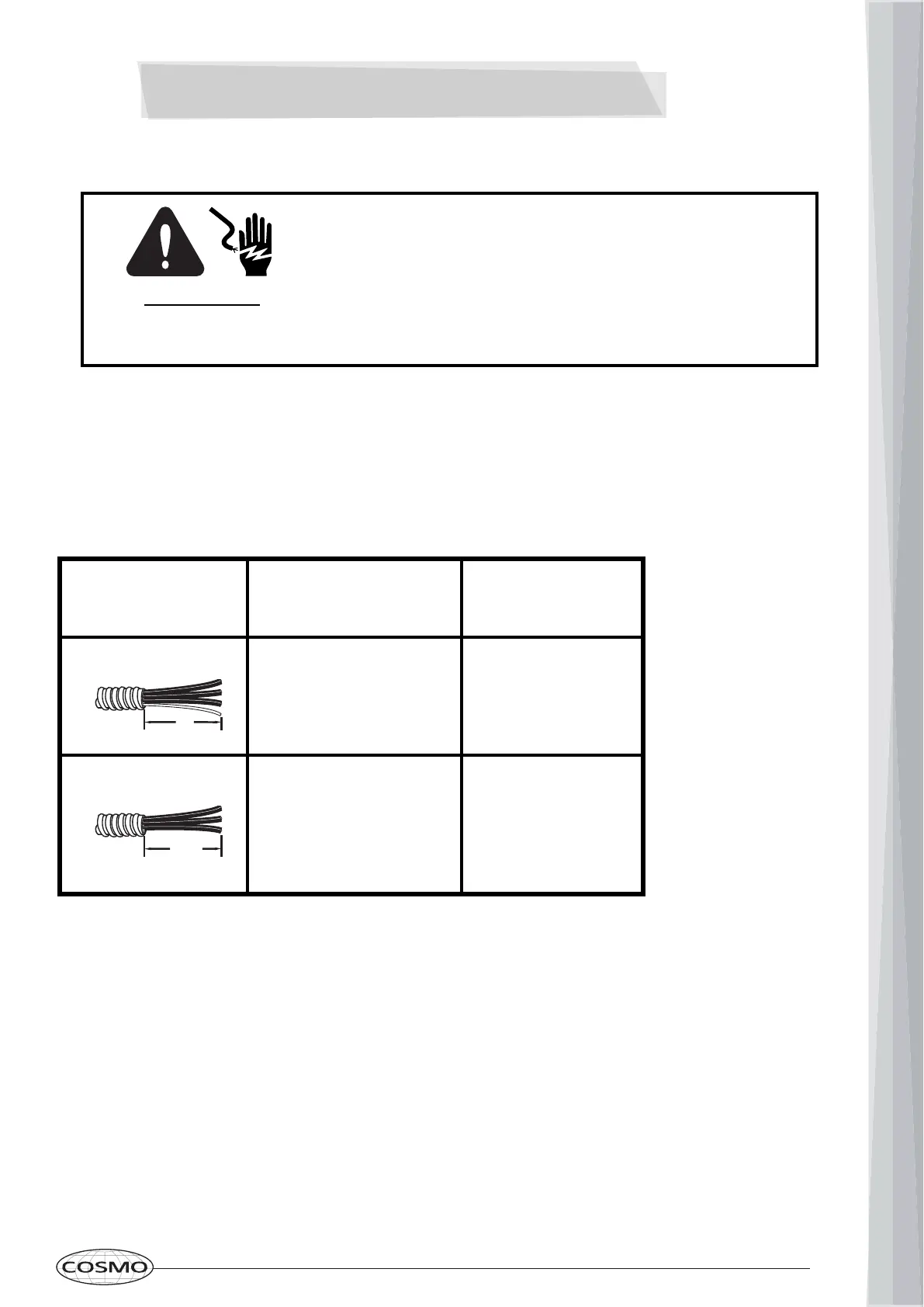

MAKE ELECTRICAL CONNECTION
This cooktop is manufactured with a frame-connected, green, or bare-ground wire.
Connect the cooktop cable to the junction box through the UL-listed or CSA-approved
conduit connector.
ELECTRICAL CONNECTION OPTIONS
For cooktops with a 3-wire cable:
Disconnect power before servicing.
Use 8-Gauge copper wire.
Electrically ground the cooktop.
Failure to follow these instructions can result in
death, fire, or electrical shock.
WARNING!
ELECTRICAL
SHOCK HAZARD
INSTALLATION INSTRUCTIONS
4-wire direct
3-wire direct
4-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
3-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
(12.7 cm)
5"
(8.9 cm)
3¹⁄₂"
If your home has:
Go to Section:
And you will be
connecting to:
A fused disconnect
or circuit breaker
box
A fused disconnect
or circuit breaker
box
To Next Page
