6

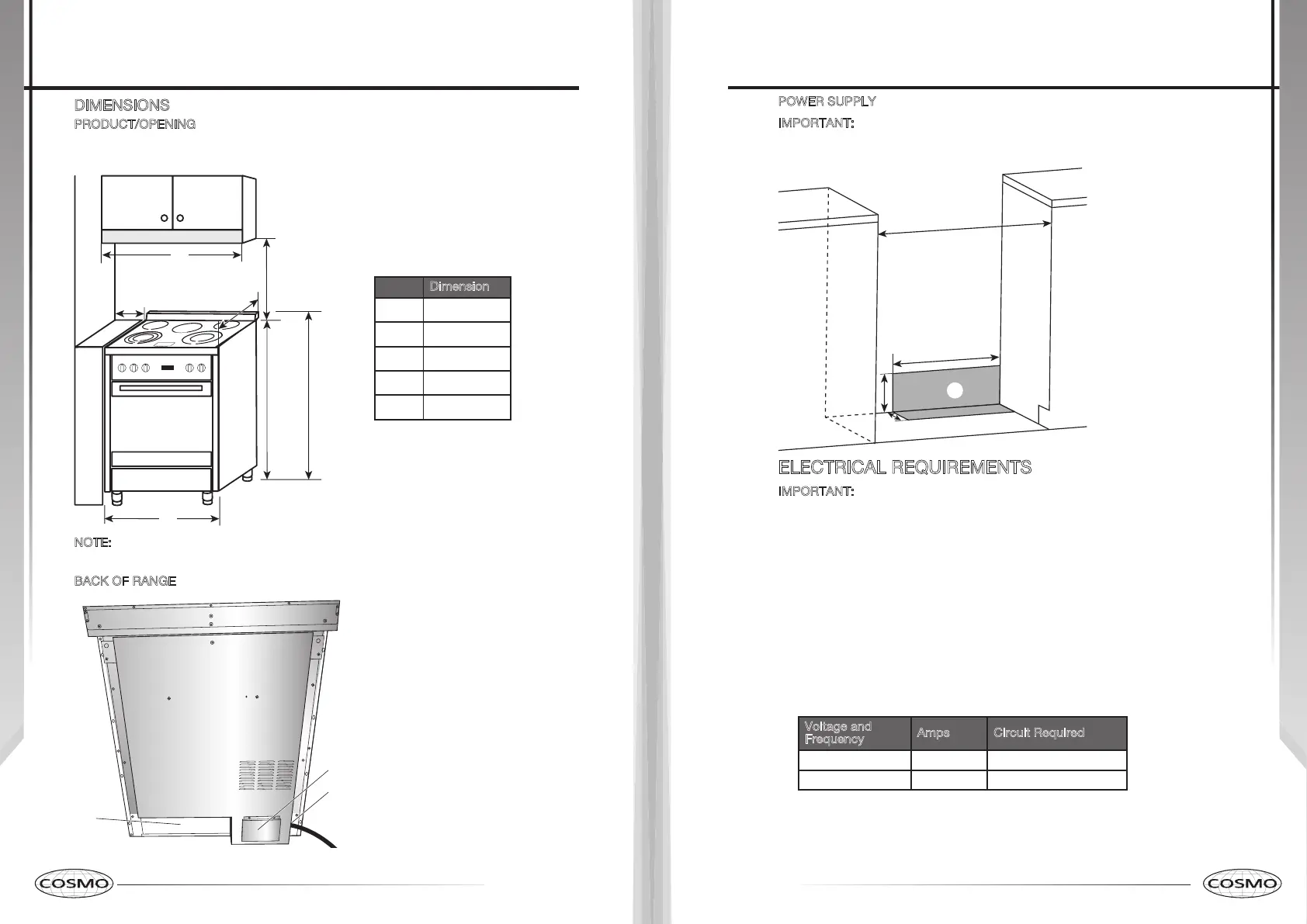

DIMENSIONS
PRODUCT/OPENING
Opening dimensions shown are for 25" (64 cm) countertop depth, 24" (61 cm)
base cabinet depth and 36" (91.4 cm) countertop height.
Min. 24" (60.9 cm)
Max. 30" (77 cm)
a
5.9" (15 cm)
Min.
b
c
ed
Dimension
a
30" (76 cm)
b
29 7/8" (76 cm)
c
25" (63.5 cm)
d
36" (91.4 cm)
e
37 3/4" (96 cm)
N
OTE: Range can be raised approximately 1" (2.5 cm) by adjusting the leveling
legs. Front of door and drawer may extend farther forward depending on styling.
B
ACK OF RANGE
a
b
c
a Access Panel to Electrical
Supply Connection
b Power Cord Opening
c Recessed Area
Installation Requirements
7
POWER SUPPLY
IMPORTANT: To connect to an outlet in the wall, the electrical outlet must be
recessed. If the electrical outlet is in the floor, it can be either recessed or
surface mounted.
a
b
d
c
e
a 30" (76 cm)
b 171/2" (44 cm)
c 71/4" (18.4 cm)
d 3" (7.6 cm)
e Recommended
Location for
Electrical Outlet
ELECTRICAL REQUIREMENTS
IMPORTANT: This appliance is manufactured with the chassis connected to the
neutral by a green ground jumper wire. Use a 3-wire, UL listed, 50-amp power
supply cord (pigtail); or if local codes do not permit ground through the neutral,
use a 4-wire power supply cord rated at 250 volts, 50 amps and intended for
use with ranges. The ground must be revised so the green ground wire of the 4-
wire power supply is connected to the chassis. See “4-Wire Connection: “Power
Supply Cord” and “Direct Wire - U.S.A. Only” “4-Wire Connection (Ungrounded
Neutral)” sections.
If codes permit and a separate ground wire is used, it is recommended that
a qualified electrical installer determine that the ground path is adequate
and wire gauge is in accordance with local codes.
To properly install your range, you must determine the type of electrical
connection you will be using and follow the instructions provided for it here.
•
Range must be connected to the proper electrical voltage and frequency as
specified on the model/serial number rating plate. All models are dual rated,
and designed to be connected to either 120/208 or 120/240V AC, 60Hz, 3-
wire or 4-wire, single-phase power supply.
Voltage and
Frequency
Amps Circuit Required
240V, 60 Hz 50 A
50 Amp Circuit
208V, 60 Hz 43 A
45 Amp Circuit
•
When a 4-wire, single phase 120/240 volt, 60 Hz., AC only electrical
supply is available, a 50-amp maximum circuit protection is required (or, if
specified on the model/serial rating plate, when a 4-wire, single phase
120/208 volt 60 Hz., AC only electrical supply is available, a 45-amp
maximum circuit protection is required).
Installation Requirements
