RECIRCULATING CHARCOAL FILTERS
Installing Recirculating Filters (For Ductless Model Only)

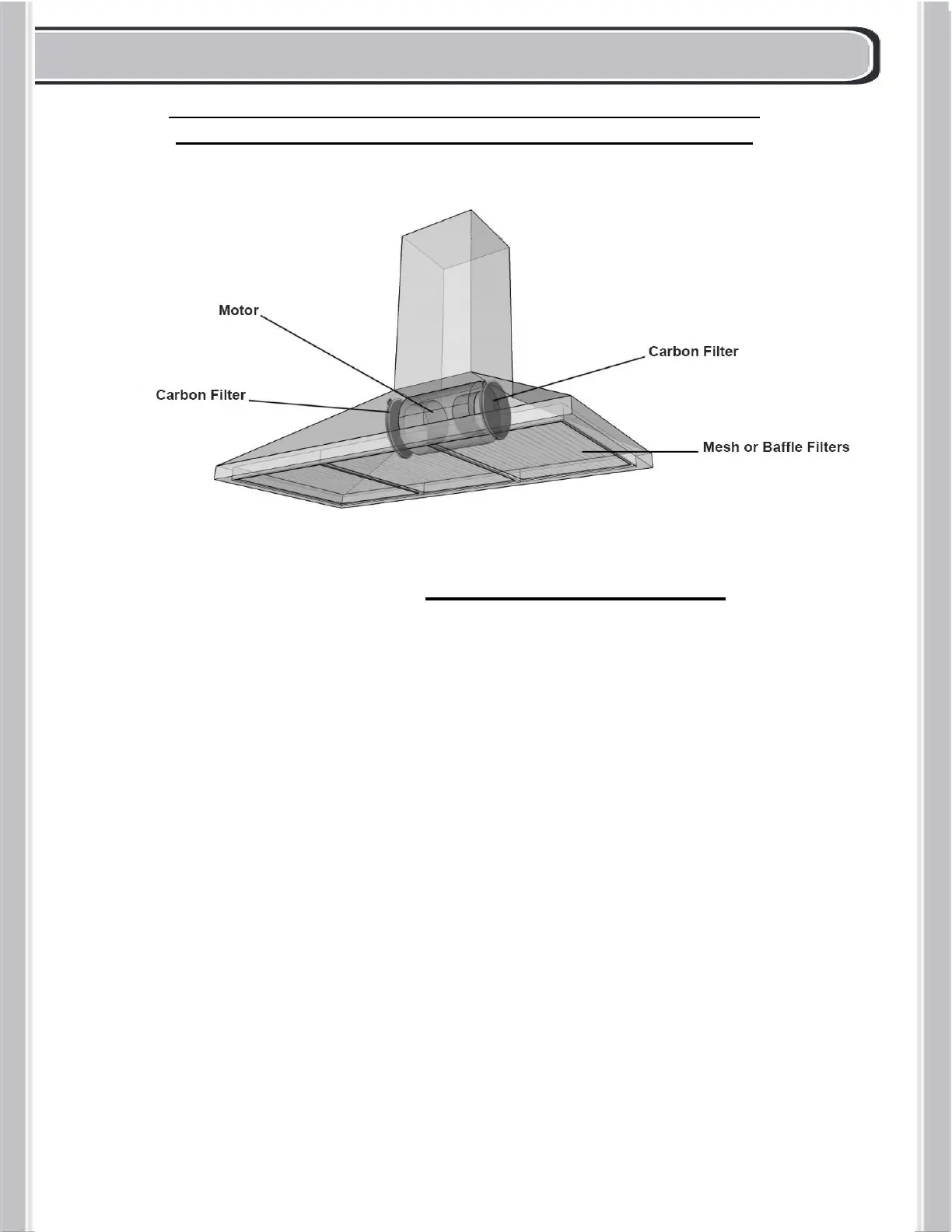

1. Remove the Baffle Filters
2. Locate the Motor
3. Place a Carbon Filter on one side of the motor and align with the center.
4. Press the center of the filter, twist and lock into place.
5. Repeat steps 2-4 for the other side of the motor.
6.
12
Skip this page if you are installing a Ducted Range Hood.
Charcoal Filters are only included with Ductless Models
Place the Baffle Filters back into place.
Note: Chimney Vent Holes located on the sides of the chimney must be
exposed to let the filtered air recirculate.
It is recommended that the charcoal filter be replaced every 4-6
months. Charcoal filter replacements are available for purchase on
www.cosmoappliances.com
Charcoal Filter Model # : CFK1-RS
Step 7:
Extend Inner Chimney to the Ceiling.
Align sides with Mounting Bracket.
Firmly screw sides of Inner Chimney
into bracket with B screws (shown in
parts list).
11
Step 8:
Insert and install filters according to the
diagram.
11
To Next Page
