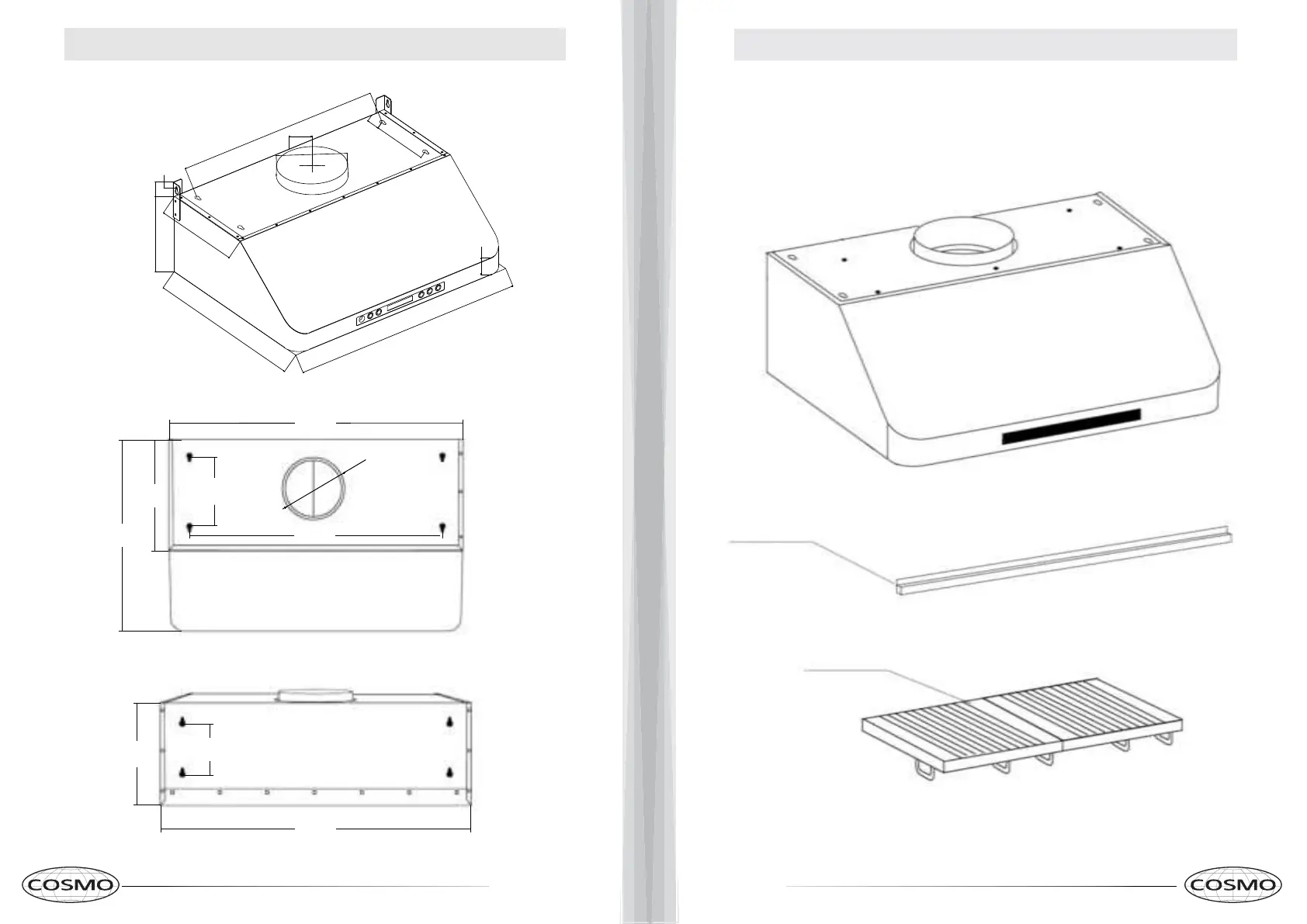

Cosmo COS-QS75 - Dimensions & Parts Diagram

Drip Tray
Baffle Filters
Range Hood
22"
10"
4.87"
12"
8.6"
29.5"
2.2"
22"
12"
10"
1.77"
0.39"
26.7"
1.8"
8.6"
5.9"
∅8"
26.7"
29.5"
29.5"
TOP VIEW
BACK VIEW
∅8"
6 7
PARTS DIAGRAM
DIMENSIONS DIAGRAM
