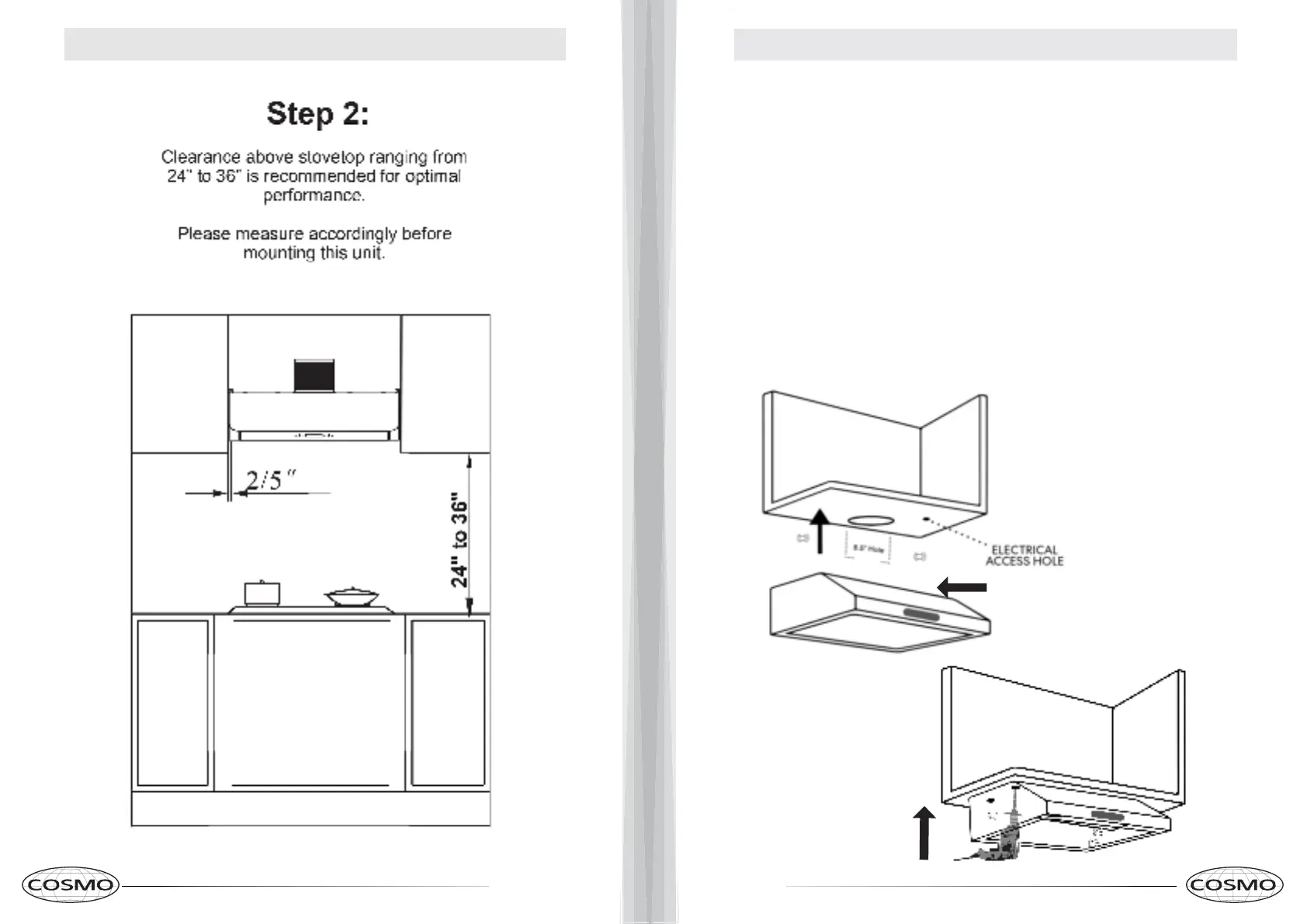

Top /Rear Mounted Installation
* Due to the weight of the unit, we recommend mounting the Range Hood to the bottom of
the cabinet above first and then secure it to wall to avoid a gap. Before starting, locate the
included template to line up at your install location.
1.) Find the key holes at the back and top of the Range Hood. Mark their locations at the in-
stallation location using the included templates (Wall / Bottom of Cabinet) with a pencil or
marker.
2.) Drill (4) 5/16" (8mm) holes into wall at each of the marked locations. Insert included drywall
anchors into wall holes. Firmly tap them into place. Insert screws into anchors and leave 1/4"
out for Range Hood to hang on.
3.) Drill an electrical access hole into cabinet above as shown on template.
4.) Locate the top key holes and line up Range Hood with protruding wall screws while also
lining up to holes above and insert wood screws through top holes and fasten the Range
Hood to the bottom of the cabinet by tightening screws with a drill or screwdriver. (this step
requires you to Lift and Hang at the same time / requires two people)
5.) Tighten up screws to secure the Range Hood to the wall once it is fastened to the cabinet.
6.) Run attached ducting through cabinet as required and electrical wires through electrical
access hole.
Drill all holes first
Hang unit on wall
Secure to cabinet
through holes on top-
Drill from inside unit.
12 13
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
