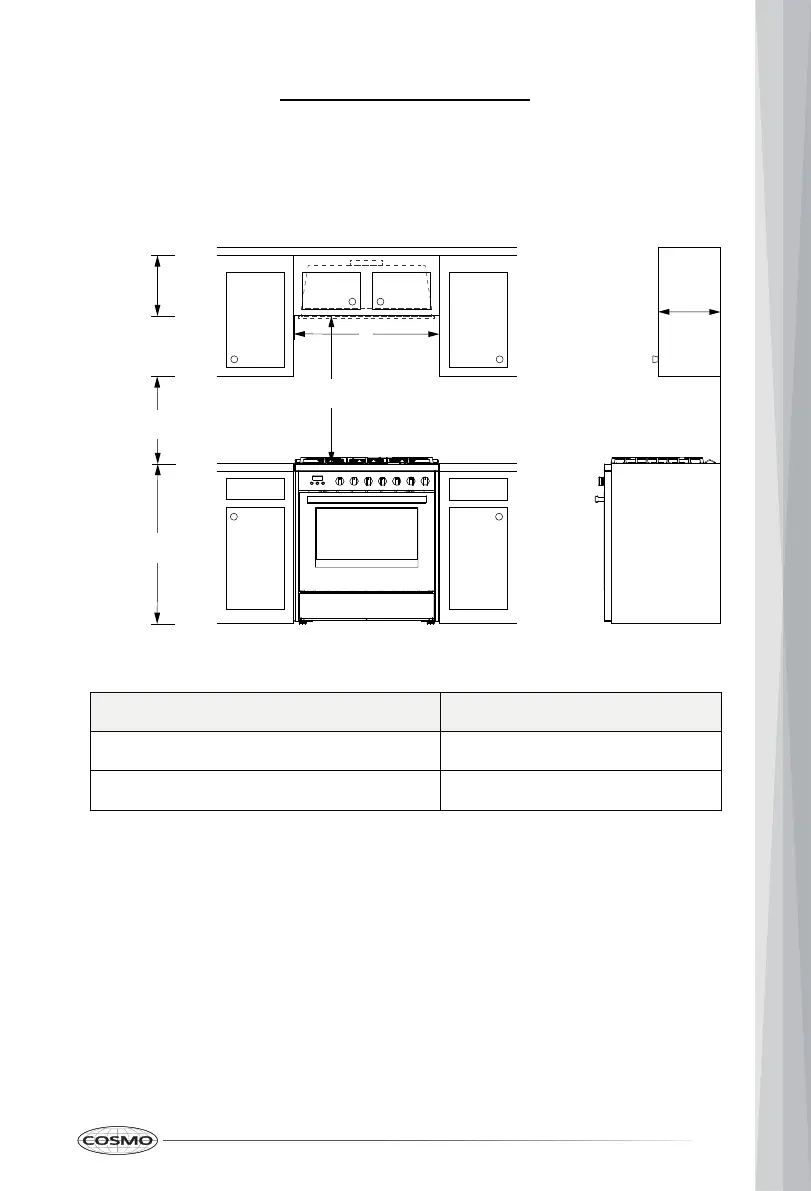

Cabinet Clearances
Given dimensions are minimum clearances.
Model A
30" Models: COS-30IRHP / COS-30IRHS 27.8" (70.5 cm)
36" Models: COS-36IRHP / COS-36IRHS
35.4" (90.0 cm)
IMPOR
TANT:
• 25.6" (65.0 cm) minimum and 29.5" (75.0 cm) suggested maximum
clearances between cooking surface and bottom of the range hood or
the cabinet.
• For ducted wall venting installations using a 90° elbow, 12" (30.5 cm)
minimum overhead cabinet clearance below the wall venting opening is
required.
Insert Range Hood
12 in
(30.5 cm)
Overhead
Cabinet
Depth
36 in
(91.4 cm)
in 18
(45.7 cm)
25.6 in
(65.0 cm)
A
12 in
(30.5cm)
Overhead
Cabinet
Height
(Ductless)
