Pendular Spreader PDV-PDHV models
17
5.1.1. SPREADING WIDTH ADJUSTMENT
With the available adjustable key you can easily adjust the gear box on 3 different spreading widths:
LARGE, MEDIUM, LOW.
These measures can be achieved only by using the standard pendulum and any changes will depend
on the kind of product to spread. (see on spreading charts paragraph 5.1.4).

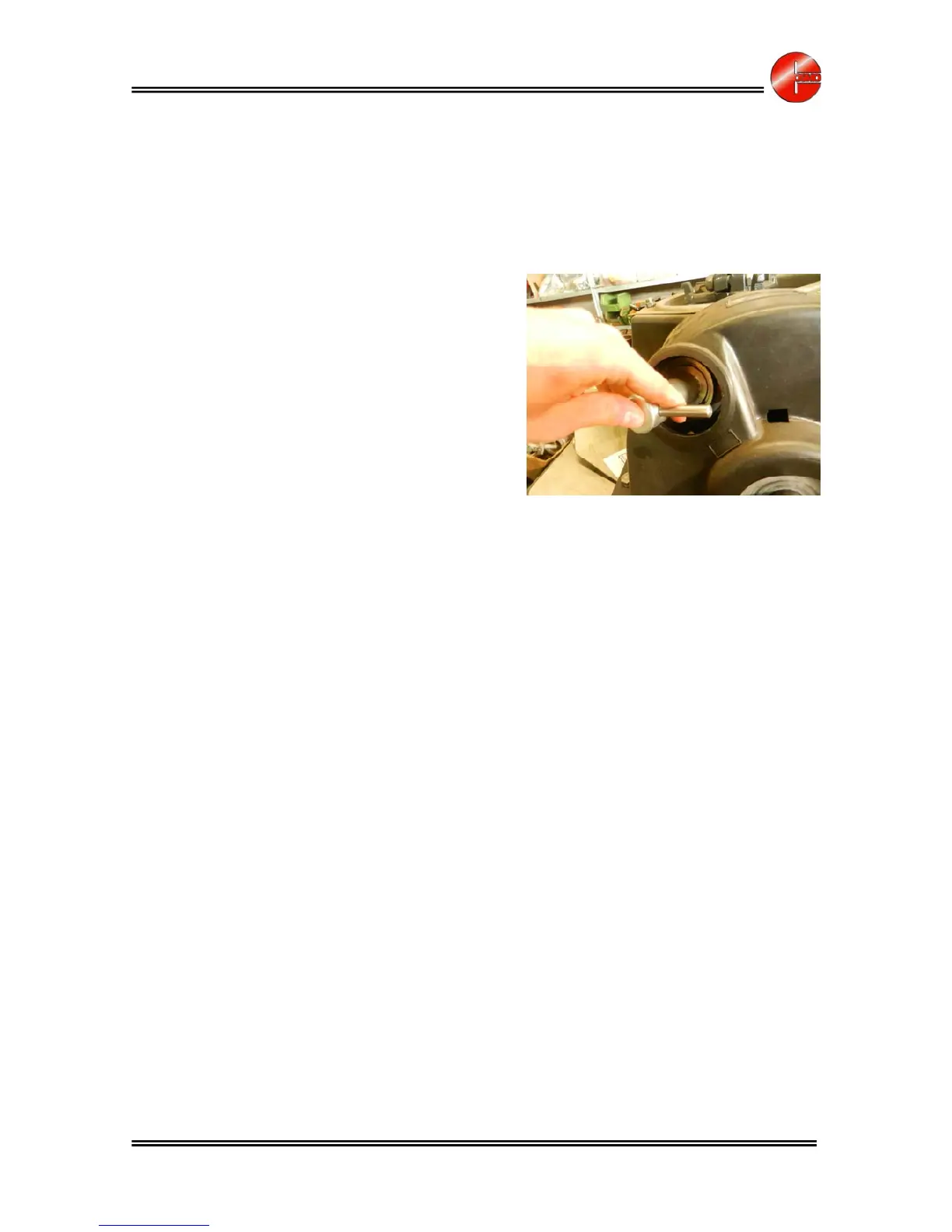

Insert the key in the gear box device, as shown in the
picture, and push it slightly till the end of the tracks. You
can insert the key in any way because the mechanism
allows to put the key on a slot different from the
spreading setting.
The adjustment key turns in a clockwise and anti-
clockwise direction indifferently. When the arrow is in
LARGE position, you can achieve a spreading width from
10 to 12 meters;
to get 8 – 10 meters turn the key towards “LOW”
setting.
Once you have chosen the spreading width pattern, pull out the key form the adjustment device.
To get lower or specific spreading widths, use the proper spout (when available) or reduce the
revolutions of the PTO.
