Pendular Spreader PDV-PDHV models
42
Table 08

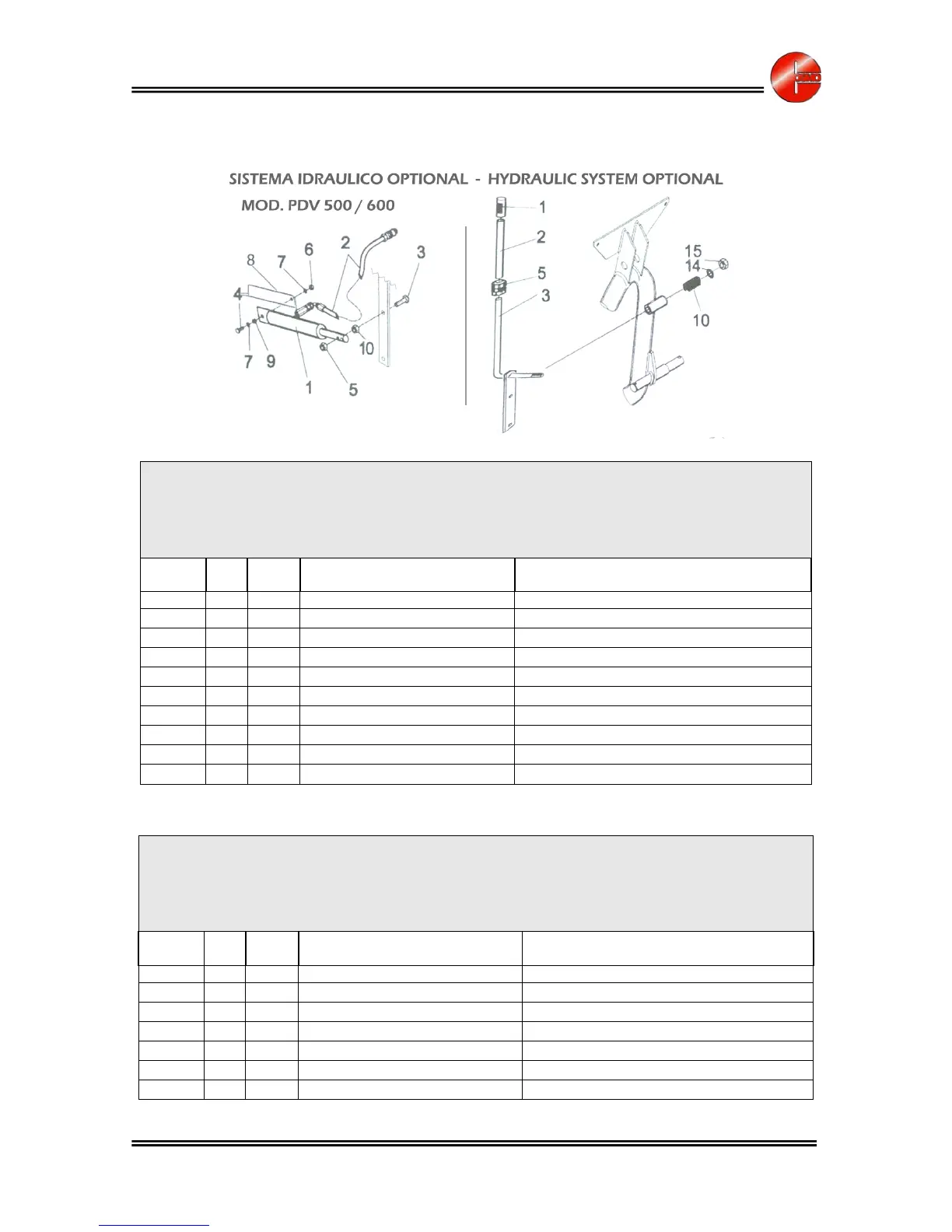

APERTURA IDRAULICA MOD. PDV 500/600
HYDRAULIC CONTROL SYSTEM MOD. PDV 500/600
CODICE 619.029
Codice
Code
QT. REF. DESCRIZIONE DESCRIPTION
623.005 1 1 Cilindro idraulico
Hydraulic cylinder
304.023 1 2 Gomma idraulica Hydraulic tube
300.055 1 3 Vite TE 12x60 Screw Hexagonal-Head 12x60
300.069 1 4 Vite TE 8x30 Screw Hexagonal-Head 8x30
301.008 1 5 Dado aut.alto M12 Self locking nut M12
301.001 1 6 Dado aut.alto M8 Self locking nut M8
303.007 2 7 Rondella 8x17 Washer 8x17
606.074 1 8 Piastra att.apertura idraulica Connection plate for hydraulic opening system
325.012 1 9 Boccola 13x8x8 Bushing 13x8x8
301.000 1 10 Dado medio M12 Nut M12
LEVA COMPLETA MOD. PDV 500/600
COMPLETE LEVER MOD. PDV 500/600
CODICE 618.018
Codice
Code
QT. REF. DESCRIZIONE DESCRIPTION
304.009 1 1 Impugnatura in gomma
Rubber handle
635.008 1 2 Tubo diam. est. 20 prolunga leva Lever extension
602.018 1 3 Tondino leva PDV400 con lama Tie rod lever with blade PDV400 model
804.001 1 5 Guaina pvc Pvc sheath
617.003 1 10 Molla leva pdn Spring for lever
303.021 1 14 Rondella piana 16x3x30 Washer 16x3x30
301.018 1 15 Dado aut.alto M16 Self locking nut M16
