Step 3

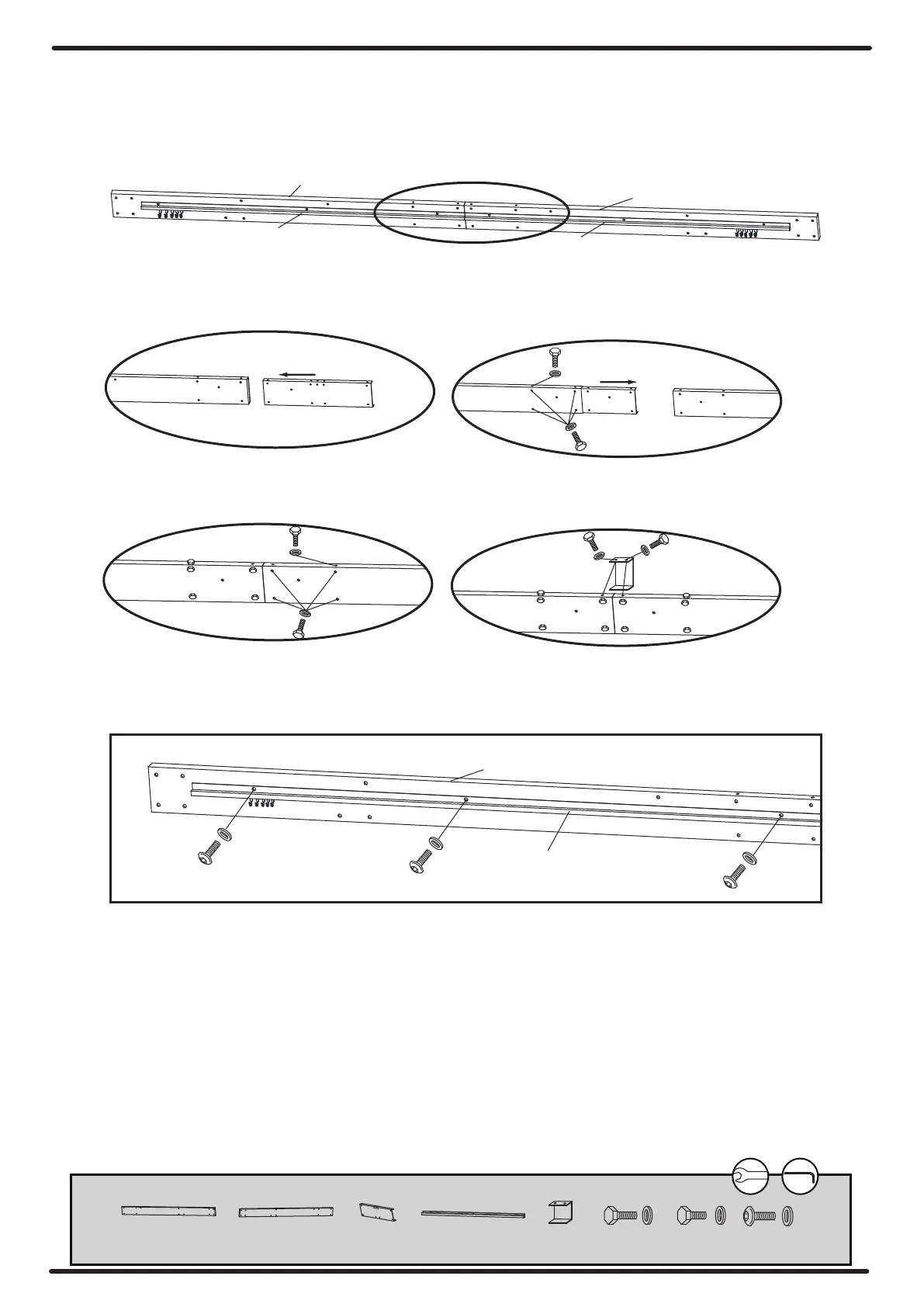

3.1 Connect the Right Long Lintel (C2) and the Left Long Lintel (C1) with the Connector (D) and
Bolt (AA), with Bolt (CC) at the top of the lintel, fix the Lintel Cover (F2) at the same time,
as seen in Fig 5.1-Fig 5.4;
3.2 Connect
Short Netting Tube (D1) to Lintel (C1/C2), and fix them with Bolt (HH), as seen in Fig 5.5.
C1x2
C2x2
Dx2
F2x2
AAx16 CCx8
C2
D1
C1
D1
HHx12
D1
HH
HH
HH
C1/C2
AA
CC
C2
C1
C2
D
D
AA
CC
C2
C1
Fig 5.1
Fig 5.2
Fig 5.3
CC
C2
C1
Fig 5.4
Fig 5.5
CC
F2
D1x4
-09-
