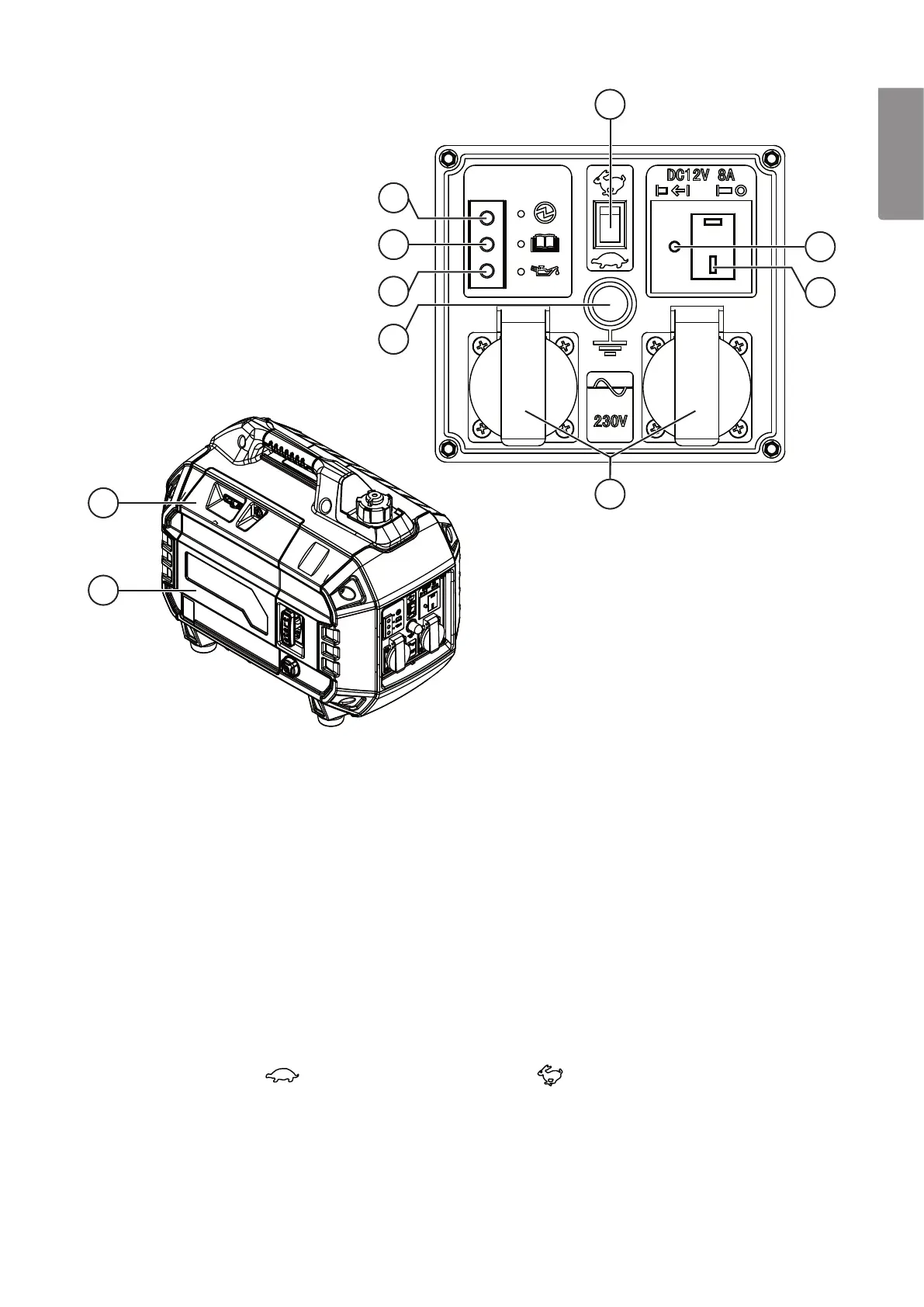

1. Engine on/off switch I ON/0 OFF in combination with thefuel cut-offvalve
2. Starter handle
3. Air filter (under themaintenance cover)
4. Oil filler cap/dipstick (under themaintenance cover)
5. Spark plug cap (under therear maintenance cover)
6. Upper cover with handle
7. Fuel tank air ventknob
8. Fuelcap
9. Frontcover
10. Control panel
11. Earth rod connection
12. Low oil indicator
13. Overload indicator
14. Output indicator
15. Mode selector switch:
– Economy mode (low idle speed), – Normal mode
16. DC socket overload protection circuit breaker
17. 12 V DC socket
18. 230 V AC socket
19. The choke is closed when moved to theright and open when moved to theleft
20. Maintenance cover
