Cotek SK700-112 - Page 24

PORT
CHASSIS
GROUND
REMOTE
NEG(-)POS(+)
DC INPUT
INLINE FUSE
SK1000
SK1500
SK2000
SK3000
INLINE FUSE
REVERSE POLARITY
WILL DAMAGE UNIT
SHOCK HAZA RD.
DO NOT OPEN. NO
USER SERVICEABLE
PARTS INSIDE.
WARNING:
DC INPUT
POS(+)
CHASSIS
GROUND
NEG(-)
REMOTE
PORT
PV C W I RE
SPRING WASHER

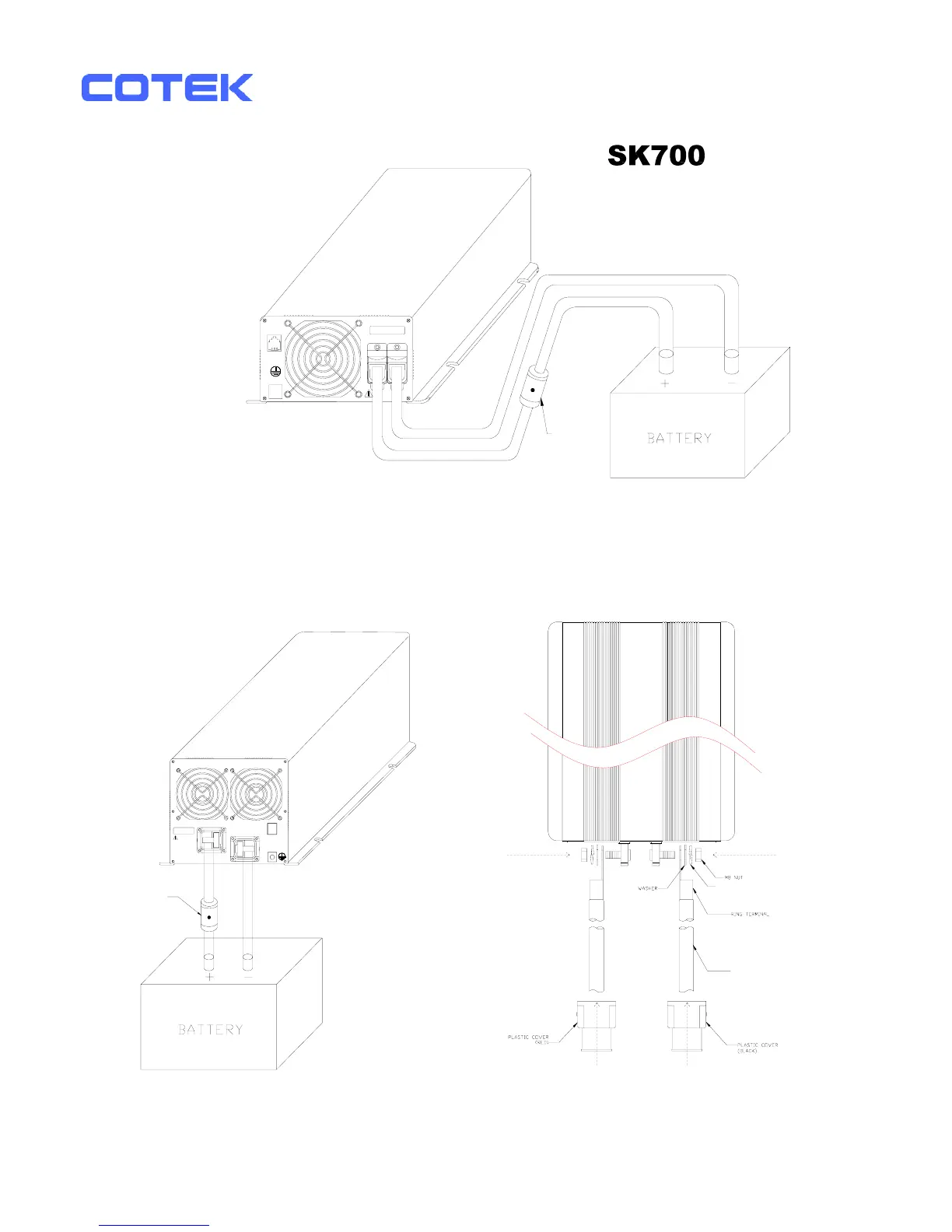

Battery to inverter cable connection
Do not place anything between
battery cable lug and terminal surface.
Assemble exactly as shown.
19
