CountyLine 20969 - Illustrated Parts Breakdown - Handlebar & Hood

Operator’s Manual
20969 CRT Tiller
24 For additional information email info@ardisam.com or call 800-345-6007 M-F 8-5
ITEM # PART # DESCRIPTION QT Y.
1 20887 WELDMENT ENGINE
HANDLE MOUNT CL NP
1
2 11509 BOLT M101.5 X 45 MM
HHFCS GR8.8 ZN
4
3
W1265V0903
NUT M10 X 1.5 HNYLK GR
8.8 ZN
6
4 17499 PLATE HANDLEBAR EXTEN
SION COUNTYLINE
2
5 19124 BOLT M10 X 1.5 X 25 HH
FCS
2
6 20167 CABLE REAR TINE M5M8
1016MM SHEATH
1
7 4620 NUT M8 X 1.25 HJAM GR8.8
ZN
2
ITEM # PART # DESCRIPTION QT Y.
8 53620 SPRING COMPRESSION
FORWARD ARM
1
9 11393 NUT M50.8 X 4.4 MM
HNYLK ZN
1
10 53613 LINK 9 1/2 IN LONG 1
11 17495 LEVER DRIVE VINYLDIP
WIREFORM COUNTYLINE
1
12 19905 WASHER M10 X 20MM X
2MM FLAT ZN
7
13 17497 HANDLEBAR LOOP STYLE
VINYLDIP COUNTYLINE
1
14 20173 PIN COTTER HAIRPIN
2.5MM DIA. X 35MM
1
15 ---- ZIP TIE 1
20972-0012R1
11
10
9
8
7
6
14
12
13
5
2
12
3
4
1
15

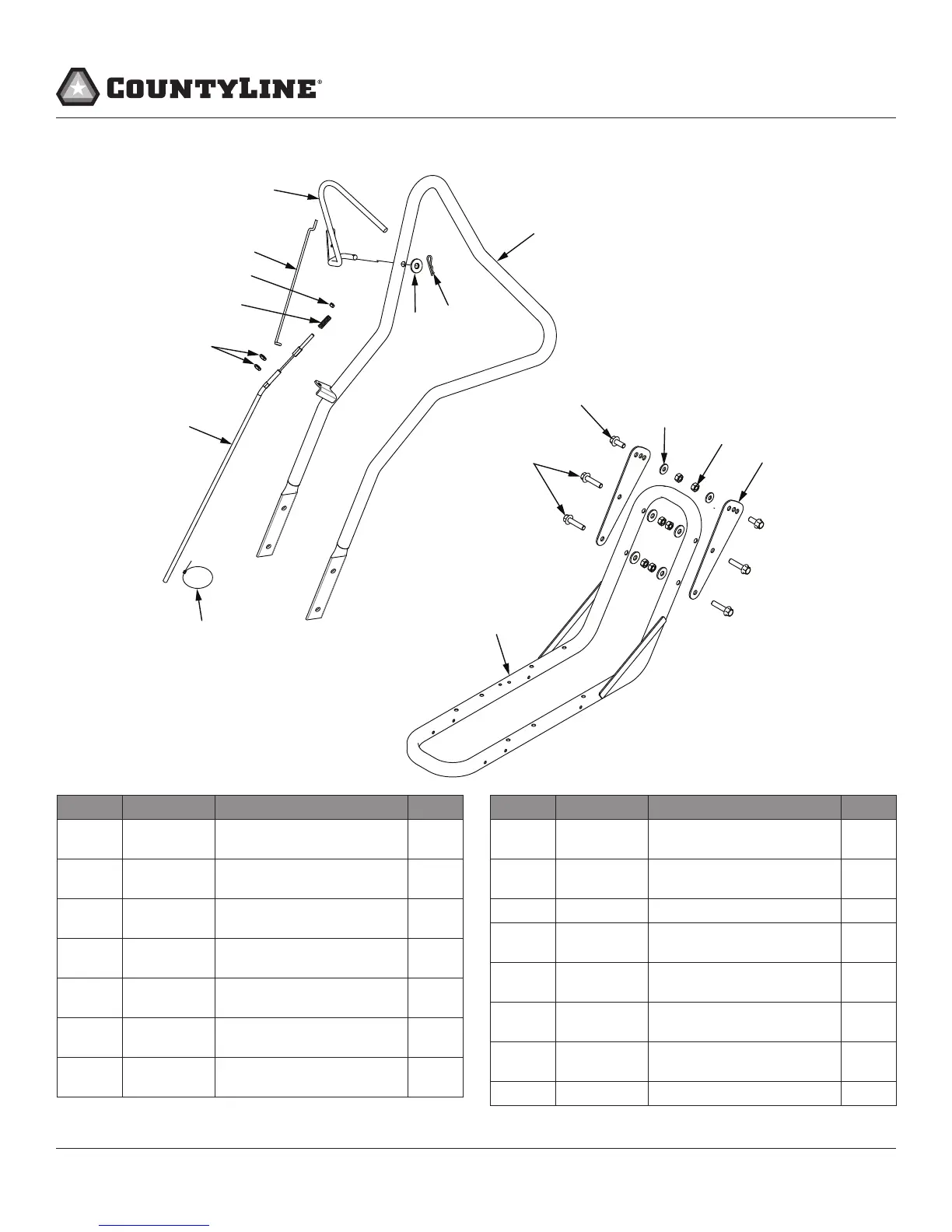

ILLUSTRATED PARTS BREAKDOWN - Handlebar & Hood
