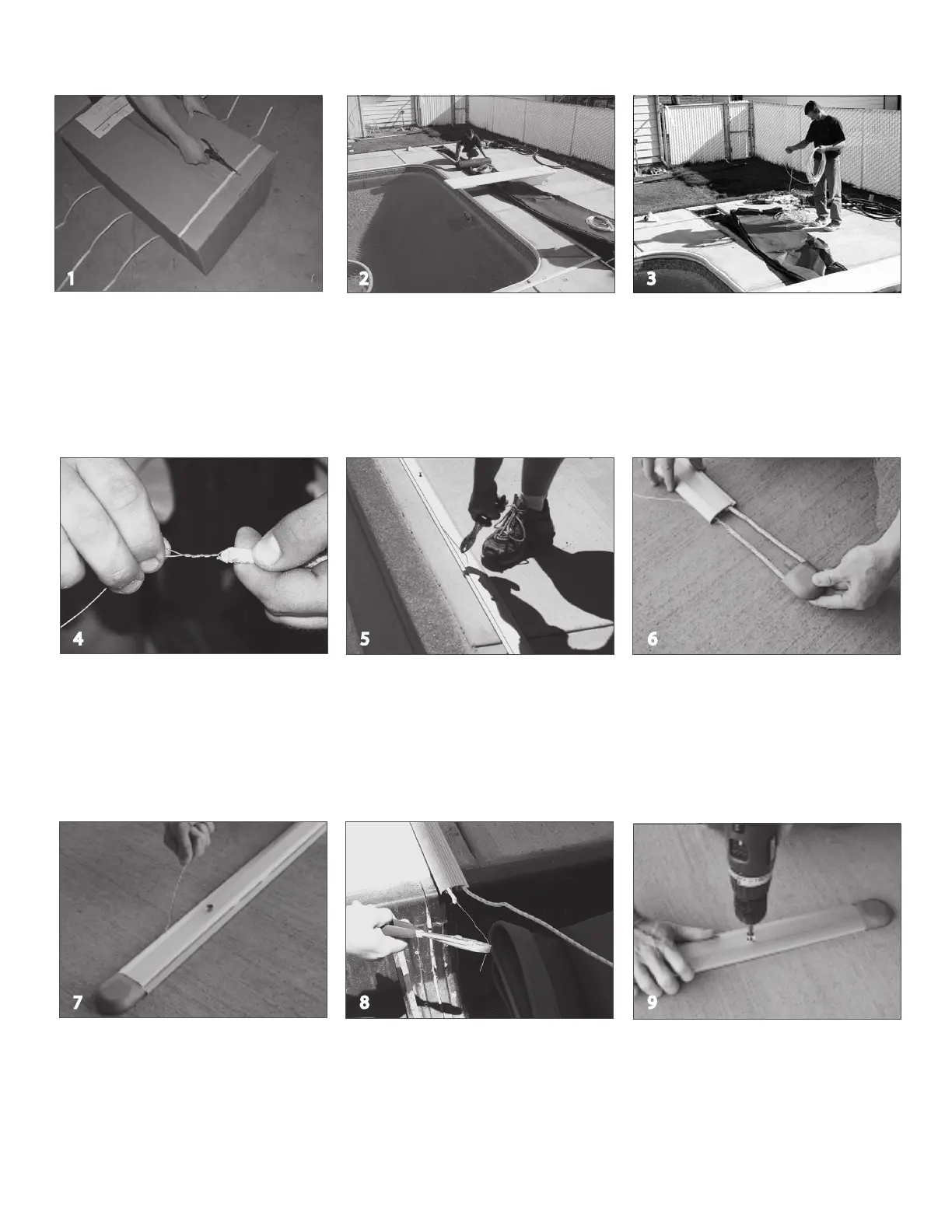

Step By Step Instructions
Rolling Out the Cover
Standing behind the housing looking over
the pool, unroll the cover from left to right.
This will ensure the cover will be right side
up when it in unrolled.
Unwrap the ropes and run them through the
tracks.
Running Ropes Through the
Tracks
The preferred method of running the rope is
to pierce the rope with a 1’ length of wire
and use it as a handle to feed the rope
through the track.
Hold the wire with some pliers and pull the
rope down the length of the track toward
the end of the pool.
Feed the rope through the pulley assembly
(25) and place the pulley housing onto the
end of the track.
Feed the rope into the back channel then
pull the rope down the back side of the
track toward the cover housing.
Pull all excess rope through the cover track.
2 3
4
5 6
7
8 9
Complete the fastening of all track screws
flush to the top of the track and fasten the
pulley screw on both sides of the pool.
Clean concrete dust from tracks and pulley
endcap. Make sure ALL screws are flush with
tracks.
Opening the Cover
To open the cover box, cut the bands that
hold the two halves of the box together.
Never cut the top of the box open. Doing
this could easily damage the cover inside.
This kind of damage is not covered under
the fabric warranty. With the bands cut, lift
and remove the top box.
1
Numbers shown in parenthesis refer to hardware shown on page 3
© Latham Pool Products, Inc. 2019. All rights reserved.
