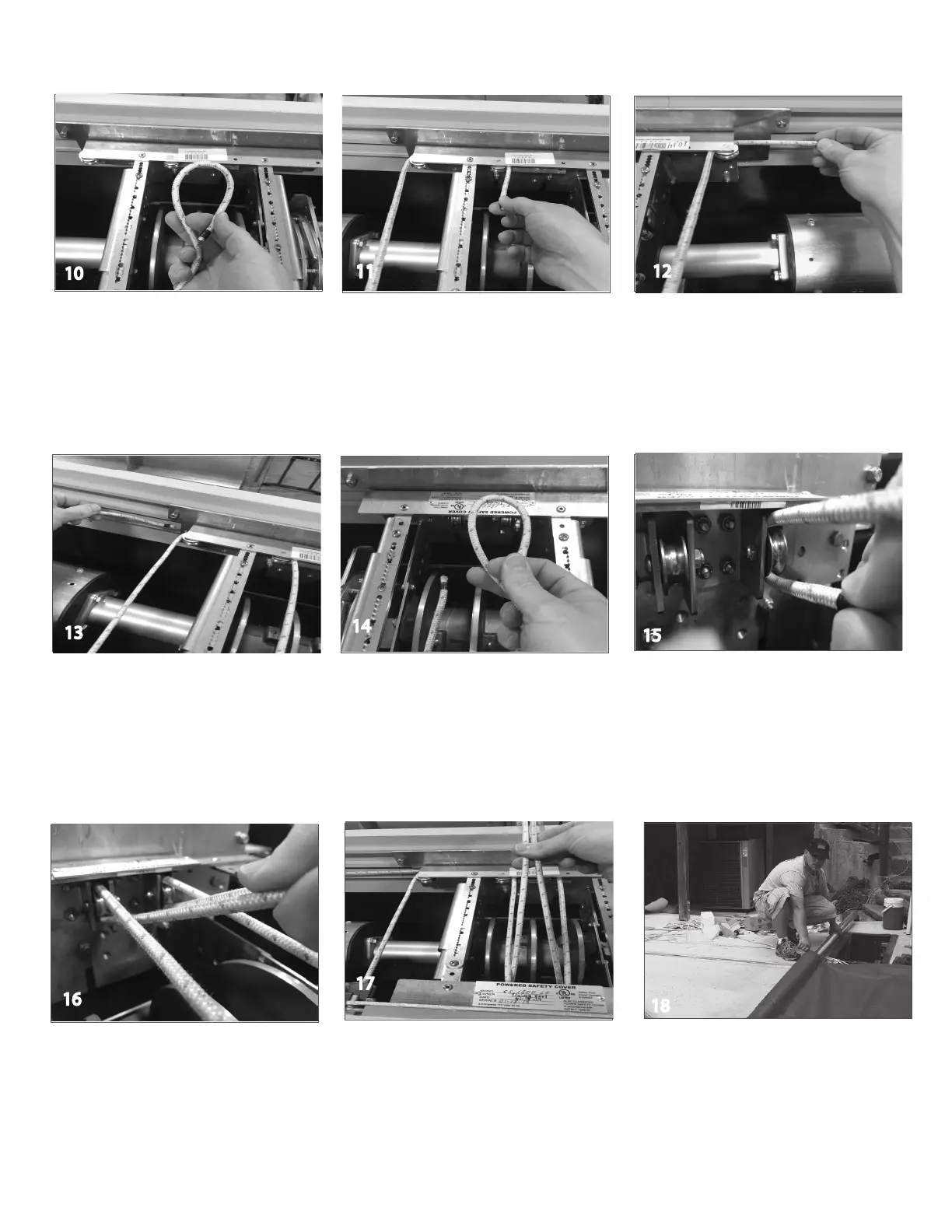

Routing the Ropes
Begin on the motor end. Bend a small curve
into the end of the rope.
Insert the rope into the side of the first
pulley. Push the rope behind that pulley and
our along the side of the second pulley.
On the non-motor end, run the rope around
the pulley and out the back channel of the
pulley assembly. Pull this rope along the
backside of the cover housing to the motor
end pulley assembly.
Insert the rope from the non-motor end
into the channel behind the first pulley on
the motor end. Push the rope behind all
three pulleys and out of the channel behind
the third pulley.
Bend a small curve into the end of the rope.
Insert the rope through the top of the front
vertically mounted pulley and pull back
through the bottom.
Insert the second rope in the same way into
the other vertical pulley.
The ropes routed through pulley assembly
should now look like this.
Attaching the Cover Leading Edge
Lay the front of the cover in front of the
housing. Slide the leading edge through the
loop on the front of the cover.
18
© Latham Pool Products, Inc. 2019. All rights reserved.
Step By Step Instructions
10
11
11
12
13
14
16
