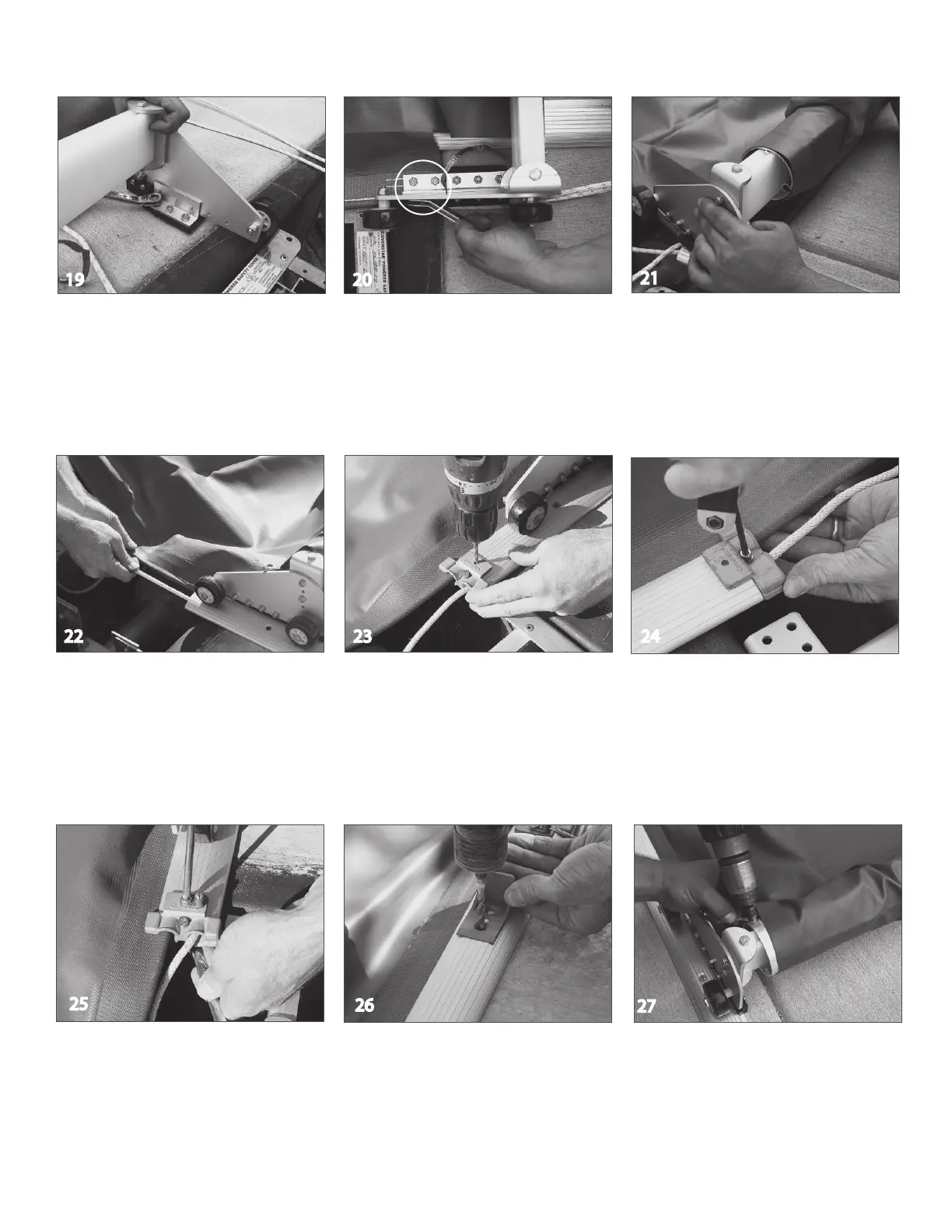

Step By Step Instructions
Attach the rope tab to the wheel assembly.
20
Attach bracket on cover to the wheel assembly.
Place the nylon leading edge inserts into
the ends of the leading edge tube. Make
sure they can slide freely inside the leading
edge tube.
Connect the bonding wire that is attached to
the front corner of the cover to the leading
edge bar using a tek screw (40). Be sure the
screw doesn’t interfere with the leading
edge insert.
19
21
36
Place a guide feed (21) over the end of the
track. Use a 3/16” drill bit to drill through the
guide feed. Feed the wheel assembly and
cover into the track.
Use a 5/32” allen wrench to tighten the screw
on the guide feed.
23 24
Feed the wheel assembly and cover into
the track. The slider on the front of the
wheel assembly will lock into the track.
22
Place a bonding wire lug (31) on top of the
guide feed and secure with a 10-32 1-3/8”
screw (46) and nylock nut (36).
Install a track stop (47) on the end of the
track on each track to keep the cover from
retracting too far. Run the key switch in the
uncover position to roll the cover up on the
roll-up tube. Check the cover to be sure it
rolls up evenly. The cover fabric installation is
now complete.
25
26
27
Numbers shown in parenthesis refer to hardware shown on page 3
