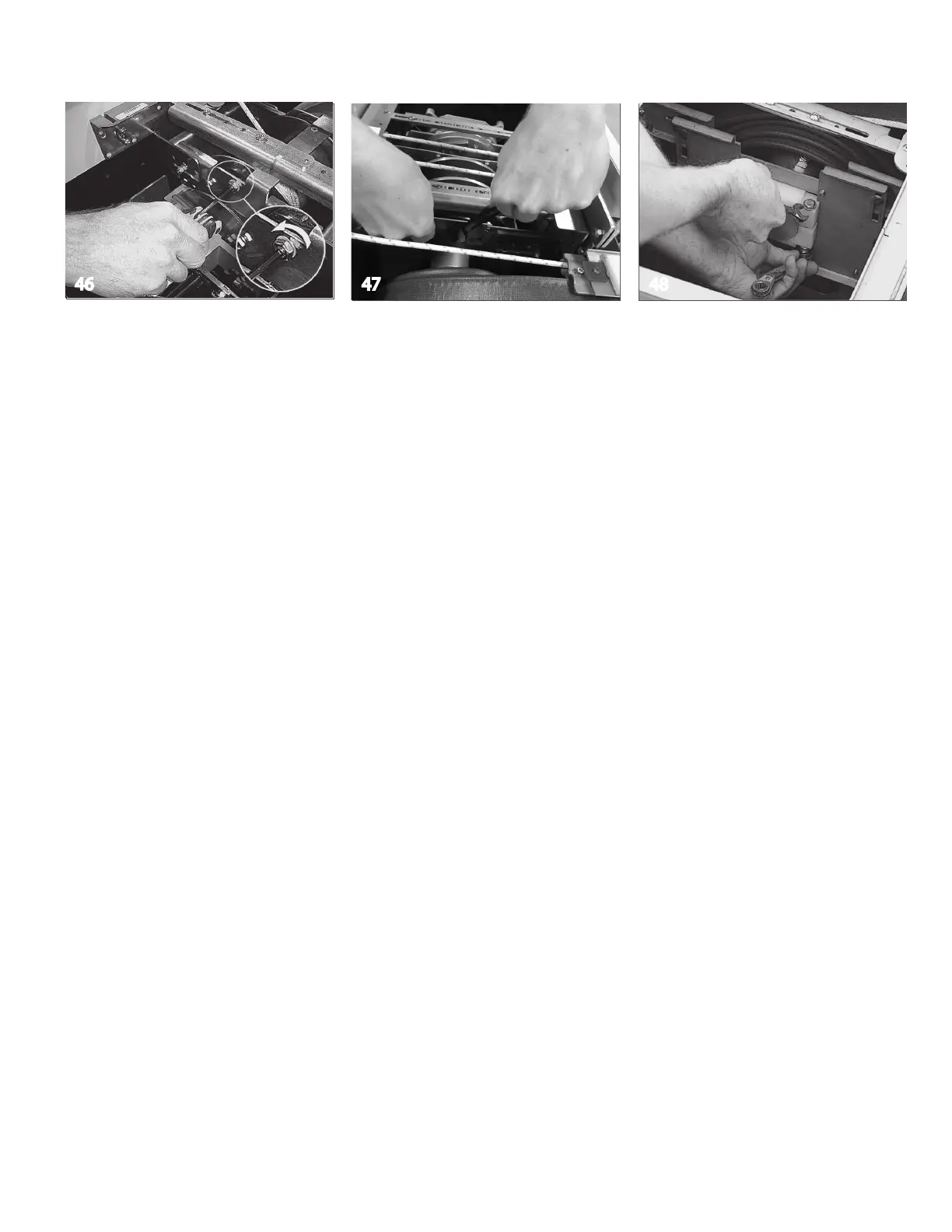

Step By Step Instructions
To loosen the brake, use a 3/16” allen
wrench to turn the set screw inside the
jamb nut in the counter clockwise
direction.
After adjusting the set screw, retighten the
jamb nut while holding the set screw with
an allen wrench. There’s a corresponding
brake on the opposite side of the rope reel.
Adjust both brakes equally.
The non-motor brake should be tight enough
to prevent the cover from rolling off the tube
faster than it is being pulled into the track. To
adjust this brake, use two 7/16” wrenches and
tightening or loosening the thru bolts in the
brake block.
