1.
2.
A1405 Tube Insertw/screws for 4.7 extruded tube
3.
4.
5.
A0605 Control switch assembly complete w/ light
6. A1546 Wheel Assembly for 2.5 LE STD top track
7.
X0021 Aluminum leading edge
8.
Cover fabric
9. PowerFlex rope - Varies with cover length
10. X0656 Standard Top track
11. A2123 Horizontal Flush Deck track
12. A0021 Slim Flush track
13.
X0004 Main Lid
14.
A0376 Lid wedge
15.
X0121 Motor End lid
16.
X0659 Non-motor end lid
17 X0943 8” lid hinge
18.
19.
20. MH232 Little Giant cover pump & instructions
21. A1071 Guide feed for standard top track
22.
A1061 Guide feed for Horizontal Flush Deck Track
23. A0006 Guide Feed with Pulley for Slim Flush Track
24. A2198 Wheel Assembly (horizontal flush TT)
25. A2432 Pulley End (standard top track)
26. A2141 Pulley End (recessed horizontal flush track)
27. A0005 End Pulley Slim flush track
28. A2368 Curved Track, housing, stop, splice - 3 ft.
29.
E1098 Bonding wire
30. M3962 Track splice RHT
31. E1086 Bonding lug copper L35 (1 wire)
32. H0334 Screw PFSM 12 x 1-3/4 for Top track
33.
H0332 Screw PPSM 12 x 1-3/4 for lid hinge
34.
H0150 Screw PPMS 10-32 x 5/8, for cross brace
35.
H0152 Screw PPMS 10-32 x 1/2
36.
H0176 Nut nylock 10-32
37.
H0075 Rope loop (black plastic)
38.
H0310 Screw PPSM 10 x 1/2
39. H0340 Plastic anchor STD #12
40.
H0331 Screw HHWSM Tek 10 x 1/2 SS
41. H0294 Carriage bolt 1/4-20 x 3/4
42.
H0006 Washer split lock 3/8”
43.
M0105 Standard splice, top track
44.
H9630 Spring pin for track alignment
45.
H0276 Nylock nut 1/4 - 20
46. H1101 Screw 10- 32 1-3/8
47. M9797 Stop Top track 403, L Shaped SS
48.
H0096 Bolt 3/8-16- 1-1/4
49.
H0331 Screw HHWSM 12 x 1-1/2 w/slot
50
H0001 Washer split lock 1/4 inch
Mechanism Components
Misc. Hardware
Cover Fabric
Standard Top Track Lid Components
1
20
18
17
7
4
Cover Track Types
8
5
9
15
13
16
Top view
Side view
2
Guide Feed
Wheel Assemblies
11
10
16
14
14
19
21
22
6
24
25
26
34
44
37
38
41
35
40
43
33
36
39
42
45
48
46
49
47
30
31 32
28
29

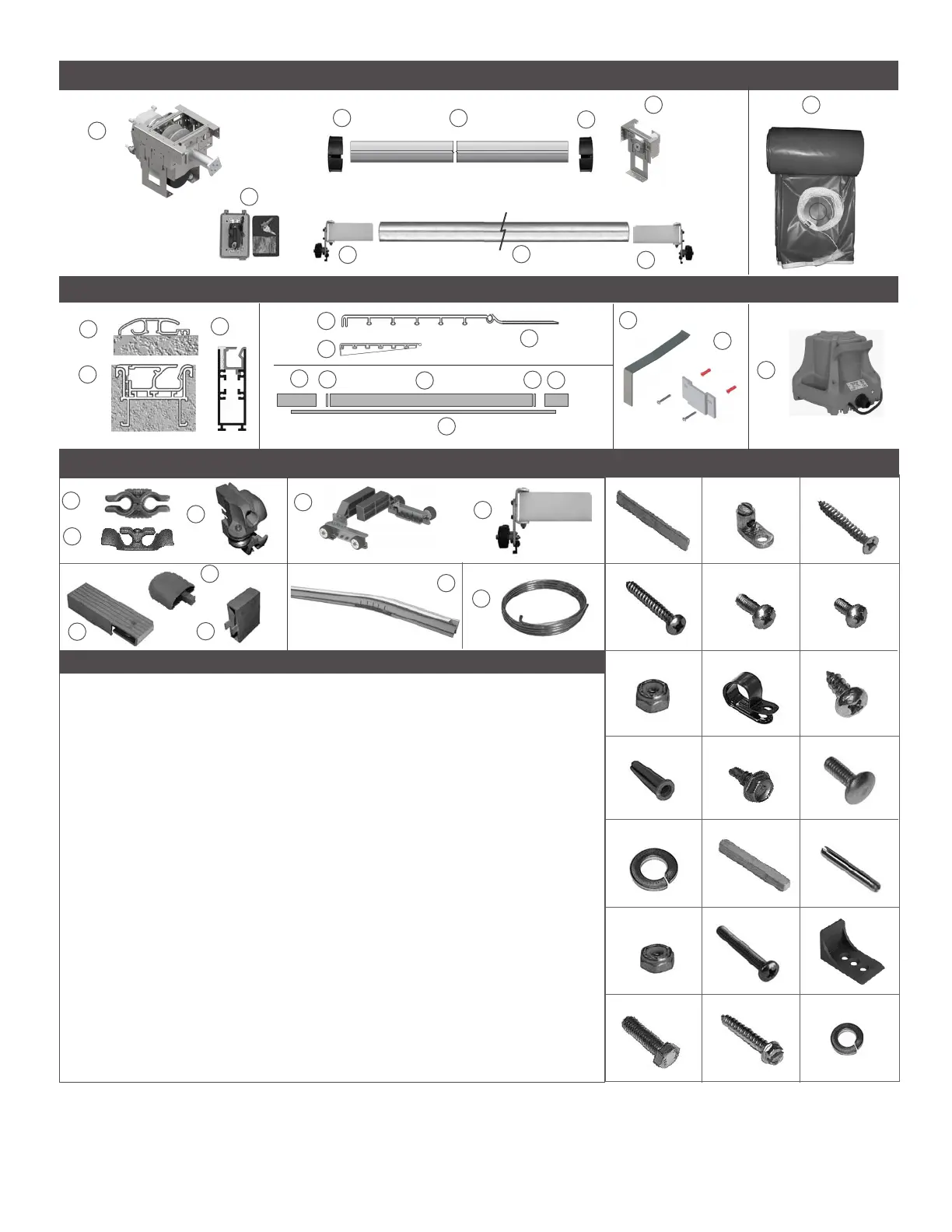

Parts List
32
23
27
12
50
© Latham Pool Products, Inc. 2019. All rights reserved.
A3625 ME Assembly Low Offset RLT (Right)
A3626 ME Assembly Low Offset RRT (Left)
X0234 Roll-up Tube 4.7 in. extruded 20 ft
A3627 Non-motor end assembly RRT (Right)
A3628 Non-motor end assembly RLT (Left)
6
15
17
The above parts list is typical for most pools up to 20’ x 40’ and
includes all parts necessary to install the Coverstar system;
however, parts will vary for longer or wider pools and according to
your specific order.
Lid Options: Additional instructions are available for different lid options.
- Walk-On Tray Lid
- Flushmount Lid
- Flat Lid
LD2103 Drop in Anchor Plate Kit STD
M4106 Standard Top Track Lid Bracket
Lid Support Bracket
Cover Pump
6
